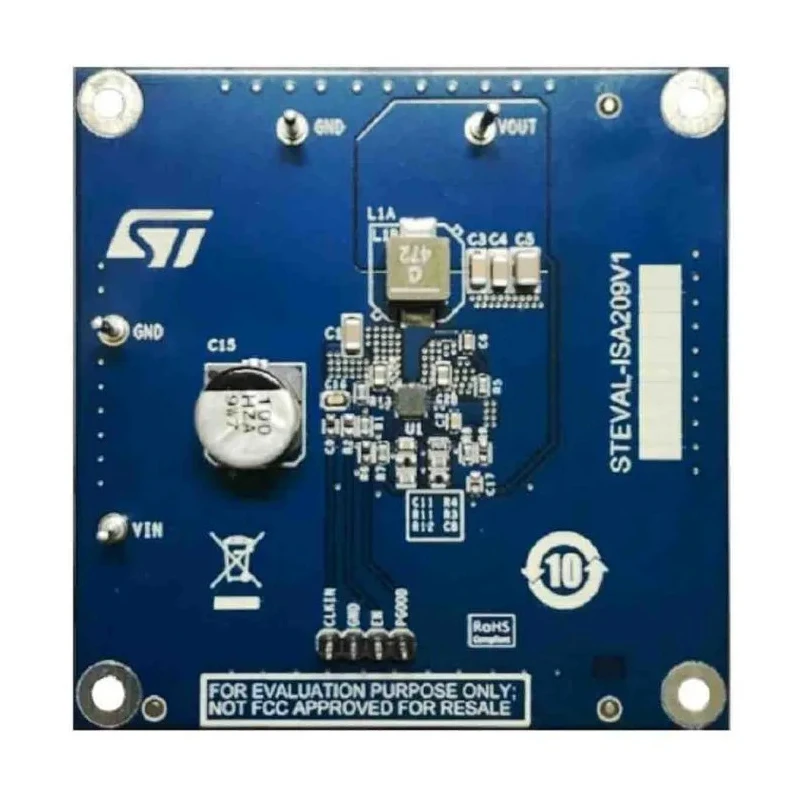

STMicroelectronics 3 A synchronous step-down switching regulator evaluation board based on the L6983NQTR STEVAL-ISA209V1
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Model | STEVAL-ISA209V1 |
| For Use With | L6983NQTR |
| Kit Classification | Evaluation Board |
| Featured Device | L6983NQTR |
| Kit Name | 3 A synchronous step-down switching regulator evaluation board based on the L6983NQTR |
Key Features
- The board uses the L6983NQTR featured device for robust regulation.
- Built on peak current mode architecture for optimized performance.
- Packaged in a compact QFN16 3x3 format reducing design complexity.
- Includes internal compensation to minimize size and enhance stability.
- Equipped with overvoltage, thermal protection, and output voltage sequencing.
- Ideal for power management evaluation and development applications.
- Supports evaluation of synchronous step-down regulator functionality up to 3 amperes.
Product Description
STMicroelectronics STEVAL-ISA209V1 is a 3 A synchronous step-down switching regulator evaluation board built around the advanced L6983NQTR device, optimized for power management tasks in electronic design projects. Featuring a peak current mode architecture, this evaluation board ensures high efficiency and precise voltage regulation while maintaining a compact footprint with its QFN16 3x3 packaging.
This board comes with integrated internal compensation which simplifies the design process and reduces the requirement for external components. Comprehensive protection features like overvoltage and thermal protection safeguard the device and the system, while output voltage sequencing enables controlled startup behavior for complex applications.
It is specifically designed to support engineers and developers in prototyping and evaluating power supply designs that require synchronous step-down regulator capabilities up to 3 A current capacity. The compact form factor and integrated features make it ideal for laboratory, industrial, and educational use cases in power management development.
The board uses the L6983NQTR device for synchronous step-down switching. Peak current mode architecture ensures operational efficiency. Compact QFN16 package reduces board space and complexity. Internal compensation minimizes external components.
Overvoltage and thermal protections enhance device reliability. Output voltage sequencing supports system startup control. Designed for development and evaluation in power management projects.
Overall, the STEVAL-ISA209V1 is a highly functional and compact evaluation kit suited for advancing power regulator designs in industrial and laboratory settings. It helps to accelerate design testing cycles for voltage conversion and power management applications.
Browse more Evaluation Boards and power management solutions on EnvMart to find complementary products and accessories from leading brands like STMicroelectronics.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This evaluation board supports a maximum output current of 3 amperes.
The board features the L6983NQTR device for synchronous step-down switching regulation.
It is built on a peak current mode architecture, which optimizes performance and efficiency.
The evaluation board includes overvoltage protection and thermal protection to enhance reliability.
The L6983NQTR device is packaged in a compact QFN16 3x3 format, which reduces design complexity.
It is designed for power management evaluation and development applications, suitable for laboratory, industrial, and educational use cases.
Yes, it supports output voltage sequencing, which enables controlled startup behavior for complex applications.
The country of origin for this evaluation board is India.
This product is classified as an evaluation board.
Internal compensation minimizes the need for external components, simplifying the design process.
The brand of this evaluation board is STMicroelectronics.
The kit name is '3 A synchronous step-down switching regulator evaluation board based on the L6983NQTR.'
