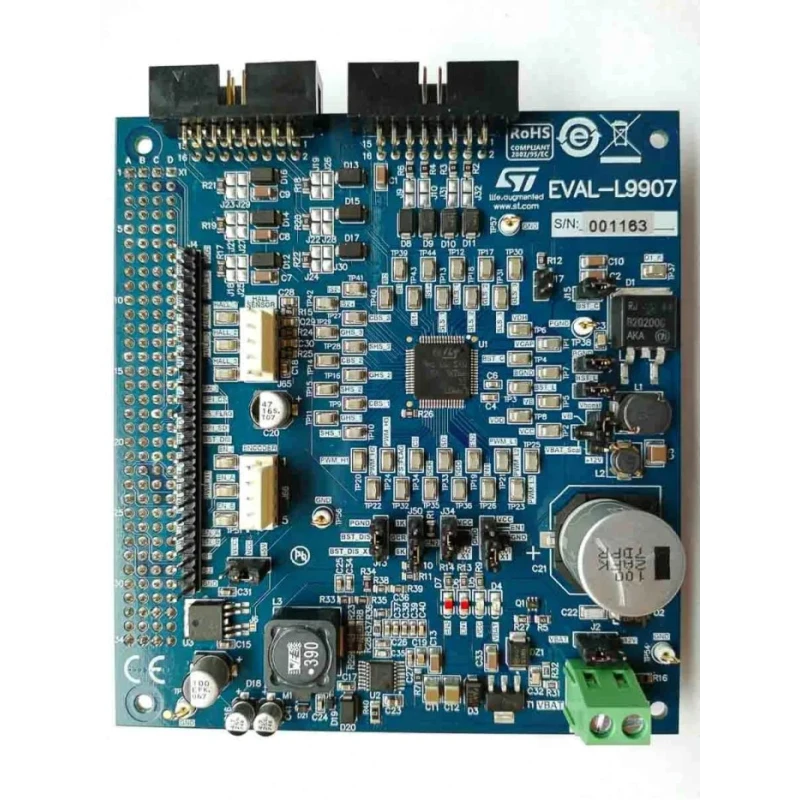

STMicroelectronics Power Management Evaluation Board for L9907-H 3-Phase BLDC Motors EVAL-L9907-H
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | STMicroelectronics |
| Model | EVAL-L9907-H |
| For Use With | L9907 Highly Integrated 3-Phase BLDC Motors |
| Standards/Approvals | RoHS |
| Kit Classification | Evaluation Board |
| Featured Device | L9907-H |
| Kit Name | Evaluation Board |
Key Features
- The board supports the L9907-H highly integrated 3-phase pre-driver for BLDC motors.
- Compatible with power MOS transistors for 3-phase motors up to 54 V.
- Integrated booster regulates gate charge with selectable output current levels.
- Provides diagnostic functionalities and protections including short circuit protection.
- Equipped with two current sense amplifiers for accurate motor control.
- Suitable for high supply voltage environments, including 48V systems.
- Enables independent control of six pre-driver channels for versatile motor strategies.
Product Description
STMicroelectronics EVAL-L9907-H Power Management Evaluation Board is designed to offer a comprehensive evaluation platform for the L9907 device, specialized for driving 3-phase BLDC motors. It includes all essential input/output interfaces necessary to operate a BLDC motor efficiently along with integrated diagnostic features to monitor system performance.
The featured L9907-H device is a fully integrated three-phase pre-driver combined with an integrated booster capable of driving a wide range of Power MOS transistors in BLDC motor applications up to 54 V voltage. The board’s integrated boost regulator ensures adequate gate charge even down to 6 V driver MOS operation.
This evaluation board is well suited for operating in high voltage supply environments such as dual battery 48 V systems. It allows independent control of the six pre-driver channels, enabling the implementation of varied electric motor control approaches with selectable gate output current levels while the application runs.
All output channels are robustly protected against short circuit faults. The board also features two current sense amplifiers to assist in precise current regulation and diagnostics of motor operation.
The board supports evaluation of the L9907-H pre-driver IC designed for highly integrated 3-phase BLDC motor control. Provides key input/output capabilities facilitating drive and sensing in power motor applications. Enables sophisticated motor control strategies through independent and adaptive pre-driver channel management.
Integrated protections enhance reliability and safety during operation in demanding industrial conditions. Ideal for testing and development in industrial, automotive, robotics, and automation systems using BLDC motors.
This evaluation board serves users in power management, motor control, robotics development, and embedded electronics design, providing a reliable hardware platform for prototyping and testing. It originates from STMicroelectronics and is manufactured in Italy, ensuring high quality and compliance with RoHS standards.
Explore more on EnvMart for related power management development kits and motor driver Evaluation Boards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This evaluation board supports power MOS transistors for 3-phase motors up to 54 V, making it suitable for high supply voltage environments, including 48V systems.
It is specifically designed for driving highly integrated 3-phase BLDC motors using the L9907-H pre-driver.
The board includes integrated diagnostic features to monitor system performance and provides protections such as short circuit protection.
This model allows independent control of six pre-driver channels, enabling versatile motor control strategies.
The integrated booster regulates gate charge with selectable output current levels, ensuring adequate operation even at low driver MOS voltages.
The L9907-H is a fully integrated three-phase pre-driver that includes features for precise current regulation and diagnostics, along with robust short circuit protection.
This evaluation board complies with RoHS standards, ensuring it meets environmental safety requirements.
It is manufactured in Italy, ensuring high quality in its production.
This board is suitable for applications in industrial, automotive, robotics, and automation systems that utilize BLDC motors.
The evaluation board includes all essential input/output interfaces necessary to operate a BLDC motor efficiently.
Yes, it is equipped with two current sense amplifiers for accurate motor control and diagnostics.
The EVAL-L9907-H is classified as an evaluation board, specifically designed for testing and development purposes.
