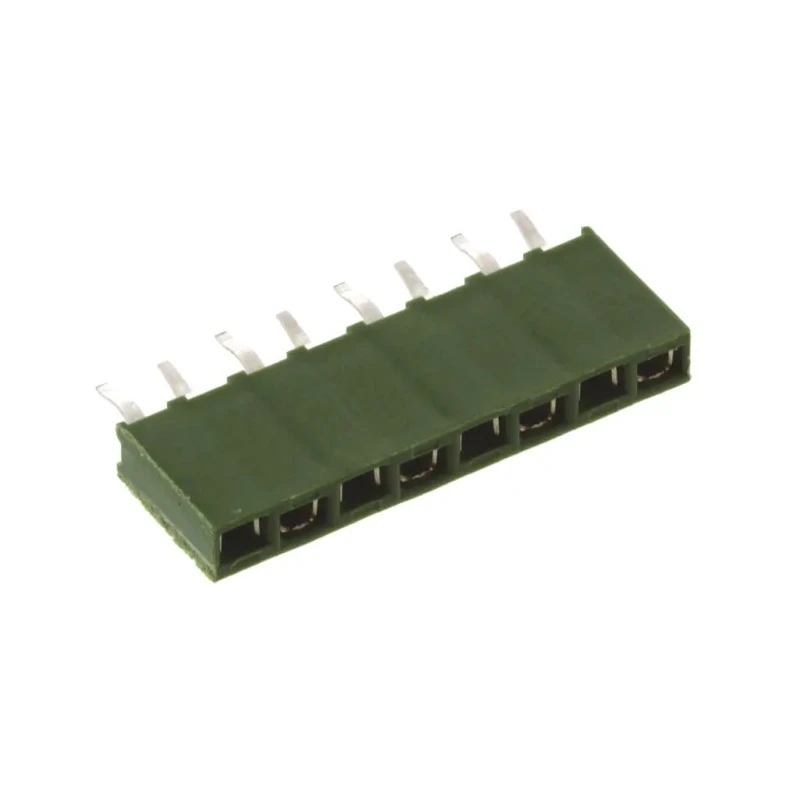

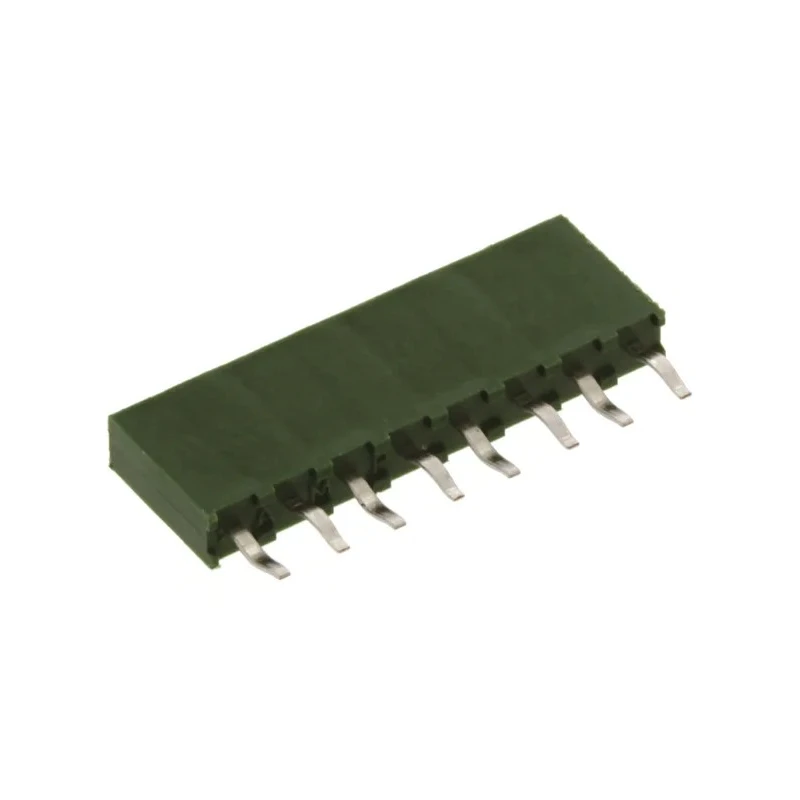

TE Connectivity AMPMODU Series Straight Through Hole PCB Socket, 8-Contact, 1 Row, 2.54 mm Pitch, Solder Termination HV100
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 12A |
| Model | HV100 |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Bronze |
| Series | AMPMODU HV100 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 8 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Designed for top entry with straight through-hole mount.
- Housings made from UL 94V-0 flame retardant polyester thermoplastic.
- Kinked solder legs ensure secure retention to the PCB.
- Supports stacking applications with variable mounting heights.
- Contact material is bronze with tin plating for durability.
- Rated for 12A current and operating temperatures from -55°C to 105°C.
- Contact gender is female for connector system flexibility.
- Ideal for industrial electronic and manufacturing applications.
Product Description
TE Connectivity HV100 Series Straight Through Hole PCB Socket model HV100 features an 8-contact, single-row configuration with a 2.54 mm pitch designed for board-to-board connectivity in industrial electronics and manufacturing systems. This through-hole solder termination socket offers reliable electrical connections and mechanical stability in harsh environments.
The housing is manufactured from UL 94V-0 flame retardant polyester thermoplastic, providing safety compliance and enhanced durability. The socket utilizes kinked solder legs that ensure a secure retention on the PCB, preventing dislodgement during handling and operation.
With a female contact gender using bronze contacts plated with tin, the socket supports a current rating of 12A and functions within a temperature range of -55°C to 105°C, making it suitable for varied industrial and electronic applications.
The product incorporates board stand-offs and two mounting height options (7 mm and 8.5 mm) to facilitate stacking PCB configurations and flexible system design. This series is part of the AMPMODU HV100 range known for quality and robust connector solutions.
Designed for top entry with straight through-hole mount. Housings made from UL 94V-0 flame retardant polyester thermoplastic. Kinked solder legs ensure secure retention to the PCB. Supports stacking applications with variable mounting heights.
Contact material is bronze with tin plating for durability. Rated for 12A current and operating temperatures from -55°C to 105°C. Contact gender is female for connector system flexibility. Ideal for industrial electronic and manufacturing applications.
Incorporates board stand-offs to maintain PCB stability.
This PCB socket is widely used in industrial, manufacturing, and electronic assembly contexts requiring dependable electrical connections and mechanical robustness. The product is rigorously tested to ensure compliance with safety and functional standards, making it a reliable choice for demanding environments.
Explore the full range of TE Connectivity PCB Sockets and connectors at EnvMart for professional electronic components tailored to modern industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PCB socket has a current rating of 12A, making it suitable for various industrial applications.
It operates within a temperature range of -55°C to 105°C, allowing for use in diverse environments.
The contacts have a pitch size of 2.54 mm, which is standard for many PCB applications.
This model features 8 contacts in a single-row configuration, designed for efficient board-to-board connectivity.
The housing is made from UL 94V-0 flame retardant polyester thermoplastic, ensuring safety compliance and durability.
It uses solder termination, which provides reliable electrical connections when mounted on a PCB.
The contact gender is female, allowing for flexibility in connector systems.
Yes, it supports stacking applications with variable mounting heights of 7 mm and 8.5 mm.
The orientation is straight, designed for top entry with a through-hole mount.
The contacts are made of bronze and are plated with tin for enhanced durability.
The country of origin for this product is India.
This socket is part of the AMPMODU HV100 series, known for its robust connector solutions.
