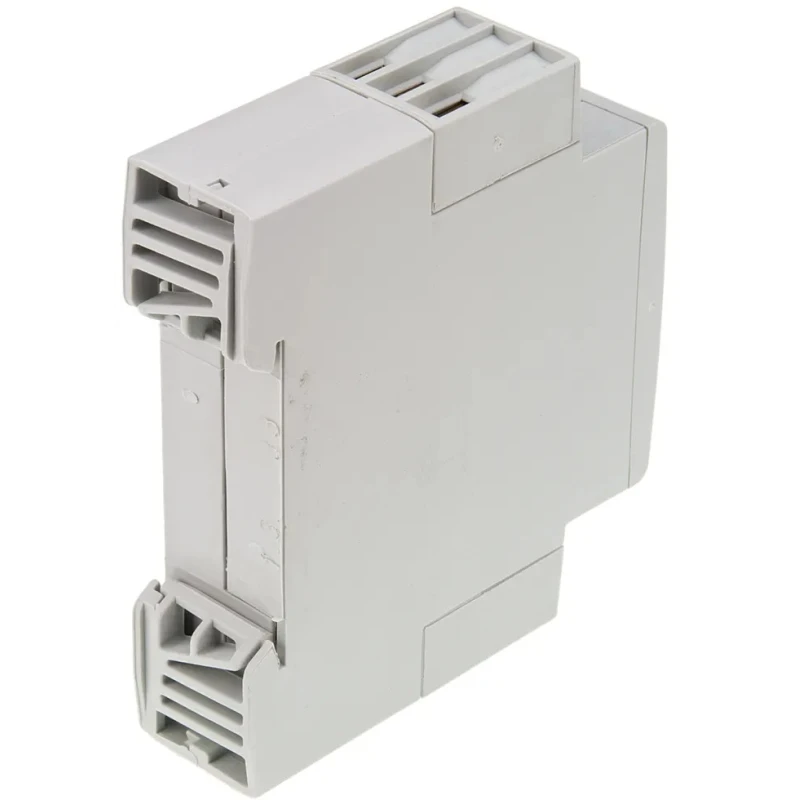

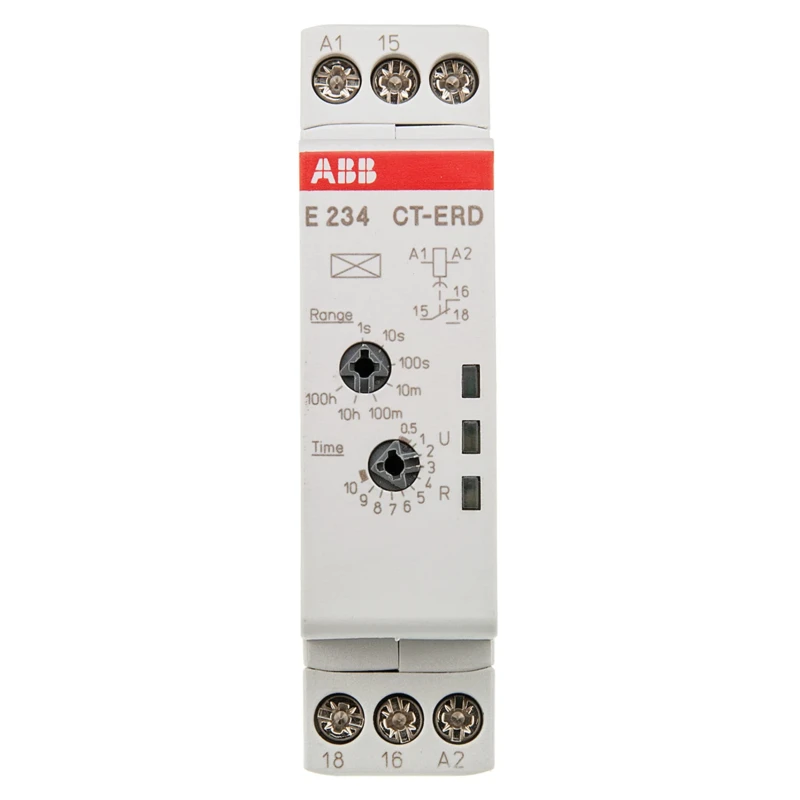

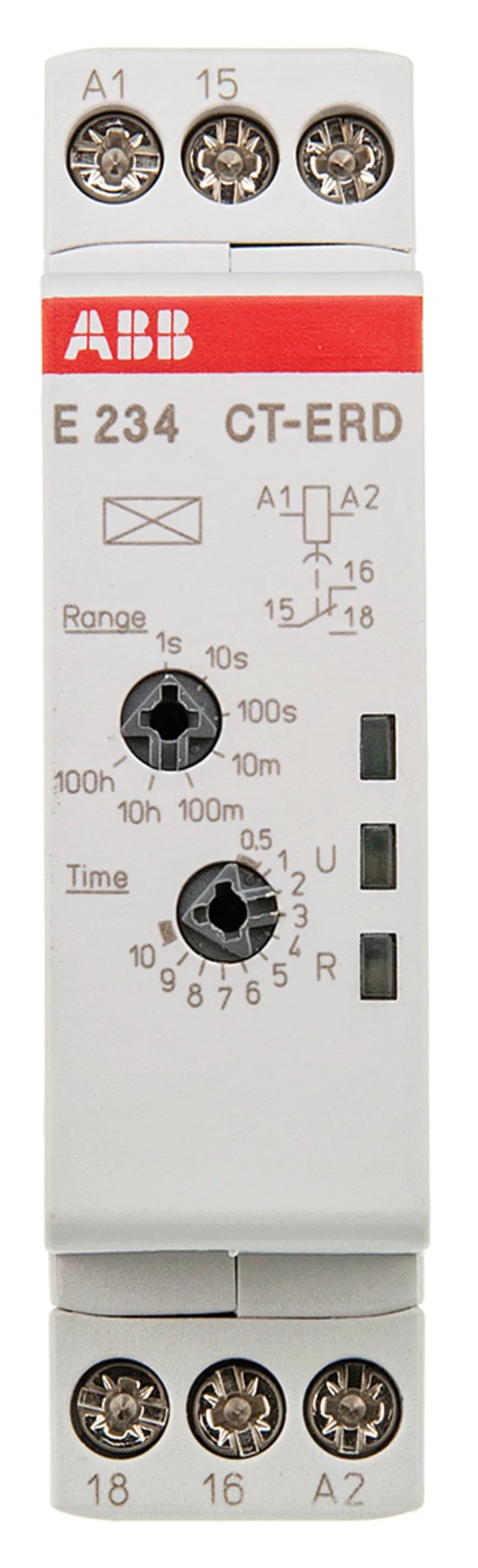

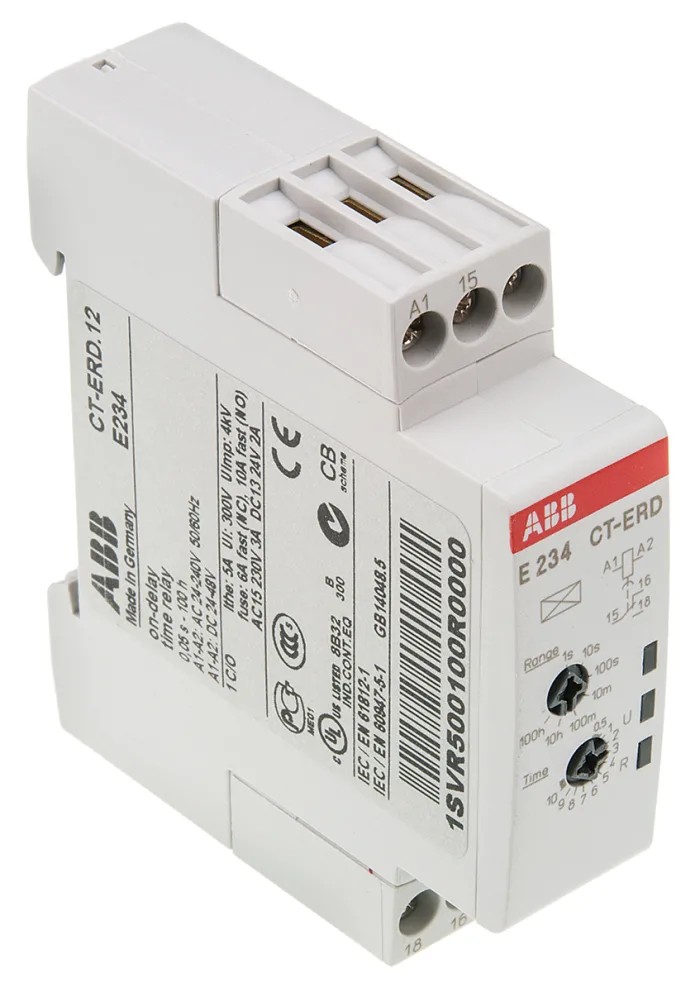

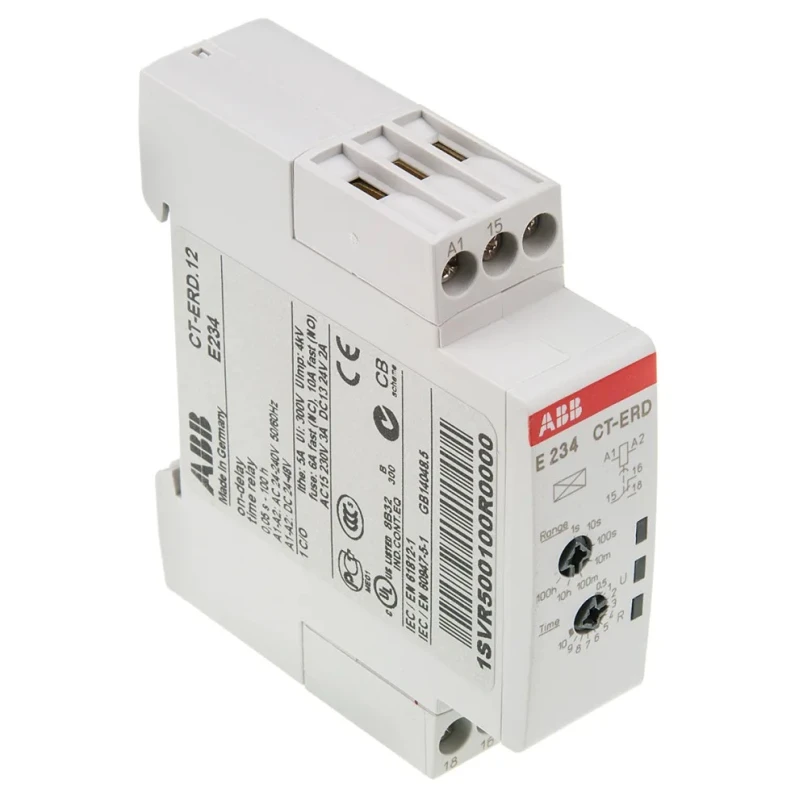

ABB 1SVR Series DIN Rail Timer Relay 1-Contact, 24 to 240 V AC / 48 V DC, ON Delay, 0.05 s to 100 1SVR500100R0000 CT-ERD.12

ABB 1SVR500100R0000 CT-ERD.12 DIN Rail Timer Relay is engineered for precise and flexible timing operations in industrial, automation, and electrical control applications. Featuring an ON Delay function, this relay allows delayed activation of connected devices with an adjustable time range spanning from 0.05 seconds up to 100 hours, enabling fine-tuned control in complex automation sequences.

Designed for DIN rail mounting, its compact form factor with a width of 17.5 mm and depth and height of 63 mm each fits easily into electrical panels, supporting space-saving installations. With robust support for supply voltages ranging from 24 to 240 V AC and 48 V DC, the device offers great versatility across different power sources.

The relay employs a single-pole double-throw (SPDT) contact arrangement rated for 6 amperes, ensuring dependable switching performance in controlling circuits. Screw-type terminals facilitate straightforward wiring and reliable electrical connections.

Operating reliably across a temperature range of -20 °C to 60 °C, this timer relay suits a variety of environmental conditions encountered in industrial and commercial settings. The IP50 and IP20 ingress protection ratings provide appropriate dust protection for enhanced durability.

Common applications include automating machinery start-up sequences, controlling lighting circuits, managing HVAC systems, process control in manufacturing, and providing safety interlock functions to prevent unintended equipment activation.

Operates on supply voltages from 24 to 240 V AC and 48 V DC. Single ON Delay timer function for reliable operation. SPDT contact configuration with a rated contact current of 6 A. Compact DIN rail mount design with dimensions 17.5 mm (W) x 63 mm (L) x 63 mm (H).

Wide operating temperature range from -20 °C to 60 °C for diverse environments. Screw terminals ensure secure and easy electrical connections. IP50 and IP20 protection ratings provide dust resistance. Suitable for automation, industrial control, HVAC, and machinery timing applications.

This ABB timer relay is part of the 1SVR series offering dependable timing control devices tailored to electrical automation and control gear requirements. For more products in the Timer Relay category, explore EnvMart’s comprehensive selections.
