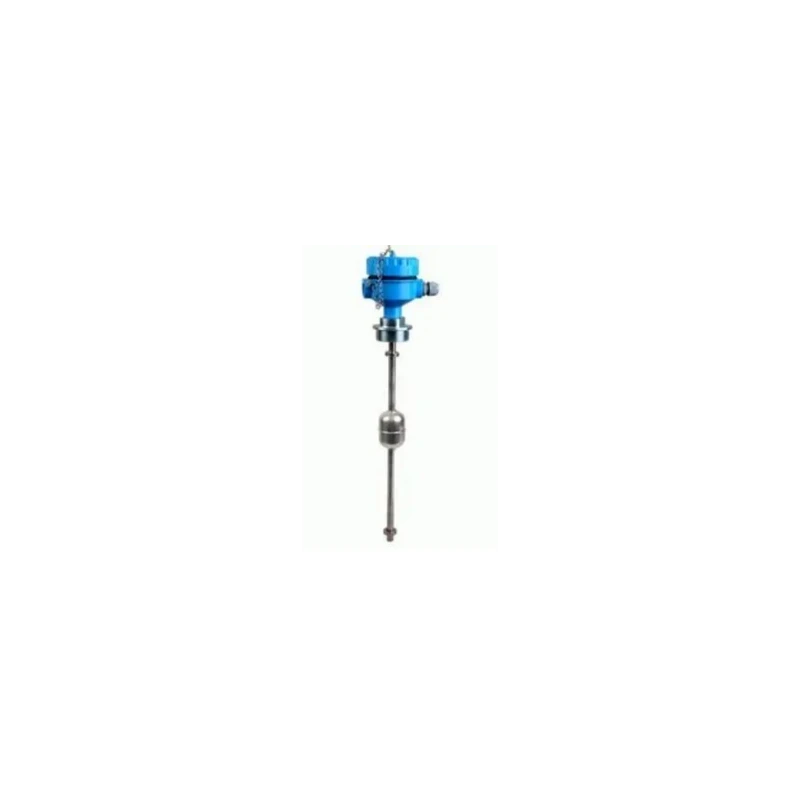

Float Level Transmitter With Maximum Pressure 10 Kg
Specifications
| Voltage (V) | 10-36 VDC |
|---|---|
| Ambient Temperature (ºC) | -40 ºC to 60 ºC |
| Overall Length | 300mm to 5000mm |
| Liquid temperature range | -40 Degree C to 120 Degree C |
| Process connection | Threaded |
| Maximum Pressure | 10 Kg |
| Measuring error | 0.25% of span |
| Terminals | Maximum 1.5mm |
| Loop Resistance | Maximum 1200 OHMS |
Key Features
- High efficiency
- It is a reliable, simple, and low-cost flow measuring instrument
Product Description
Float Level Transmitter With Maximum Pressure 10 Kg are ideal for continuous Level monitoring in Water, Diesel, Chemical and Oils for accurate level Measurement. The Output is not affected by liquid type, temperature, Pressure and other physical parameters. The Transmitter is factory calibrated and is ready to use. The principle of float type level meter is that a float moves up and down due to buoyancy
- High durability
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum pressure rating of this float level transmitter is 10 Kg.
This model operates within a voltage range of 10-36 VDC.
The ambient temperature range for this transmitter is -40 ºC to 60 ºC.
The measuring error of this unit is 0.25% of span.
It supports a liquid temperature range of -40 °C to 120 °C.
This transmitter uses a threaded process connection.
The overall length of this model can range from 300mm to 5000mm.
The maximum loop resistance for this device is 1200 OHMS.
This transmitter is suitable for continuous level monitoring in water, diesel, chemicals, and oils.
Yes, the transmitter is factory calibrated and ready to use upon installation.
The terminals for this model can accommodate a maximum size of 1.5mm.
It is ideal for continuous level monitoring in various liquids, including water, diesel, chemicals, and oils.
