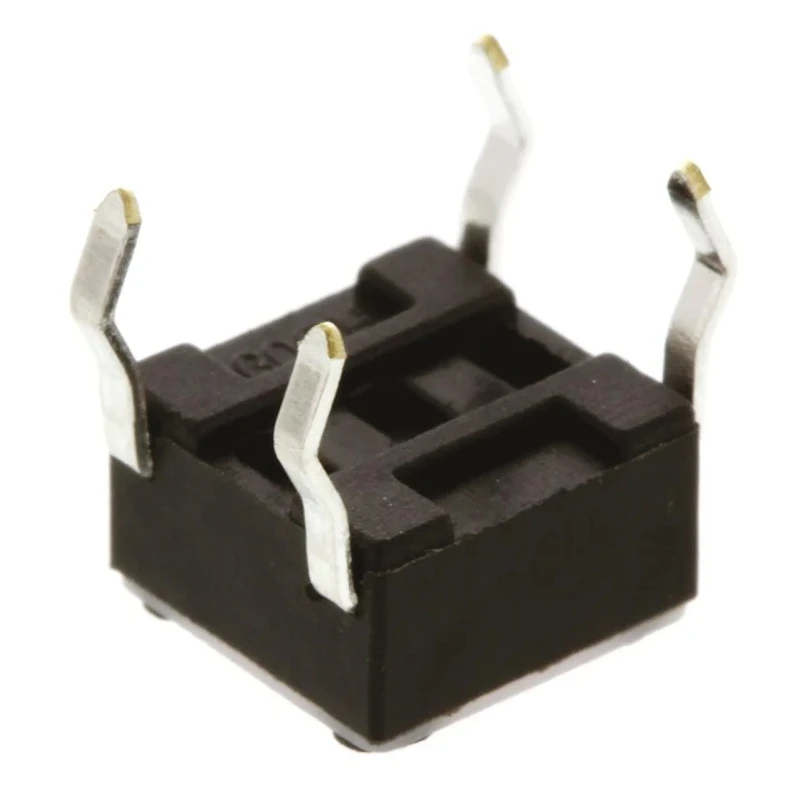

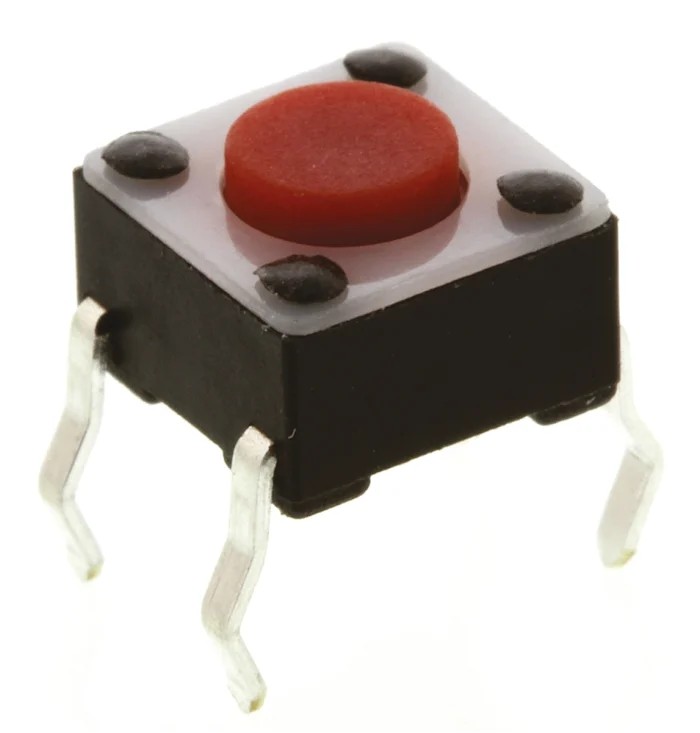

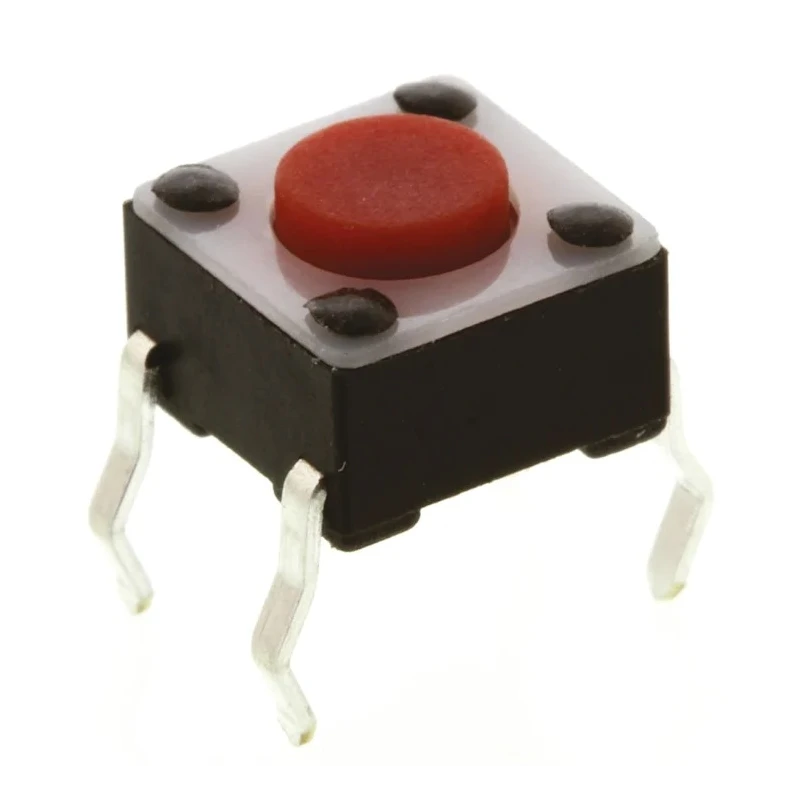

TE Connectivity IP67 Red Tactile Switch Button 0.7 mm Actuator Length, SPST 50mA 24 V dc Surface Mount 1825910-3

TE Connectivity 1825910-3 tactile switch button is a professional-grade surface mount component offering IP67 protection for dust and water ingress. Featuring a red actuator with 0.7 mm actuator length, this tactile switch employs a SPST (Single Pole Single Throw) contact configuration with momentary operation mode.

Designed with a nylon 66 housing and copper alloy-silver contacts, it supports a switch contact rating of 50mA at 24 V dc. The switch has compact dimensions of 6 mm by 6 mm in footprint and 4.3 mm height, making it ideal for applications requiring a small PCB footprint.

The operating force required for actuation is 2.6N with a mechanical life expectancy of 100,000 operations, ensuring reliable tactile feedback and long service life. This switch is suitable for industrial and consumer electronics including keyboards, keypads, telephones, and radios.

Additional features include non-illuminated actuator with top orientation, solder terminal type, and compliance with China RoHS 2, EU RoHS, EU ELV, and EU REACH standards. The IP67 rating certifies its protection against dust ingress and water immersion, making it suitable for challenging environments.

IP67 rated for robust environmental protection. Compact surface mount tactile switch design. High reliability with a mechanical life of 100,000 operations. Red actuator with 0.7 mm length for precise actuation. SPST contact configuration and momentary operation mode.

Rated at 50mA 24 V dc for low power circuit applications. Operating temperature from -35°C to 85°C supports diverse applications. Applications include electronic devices such as keyboards, telephones, and general consumer electronics.
