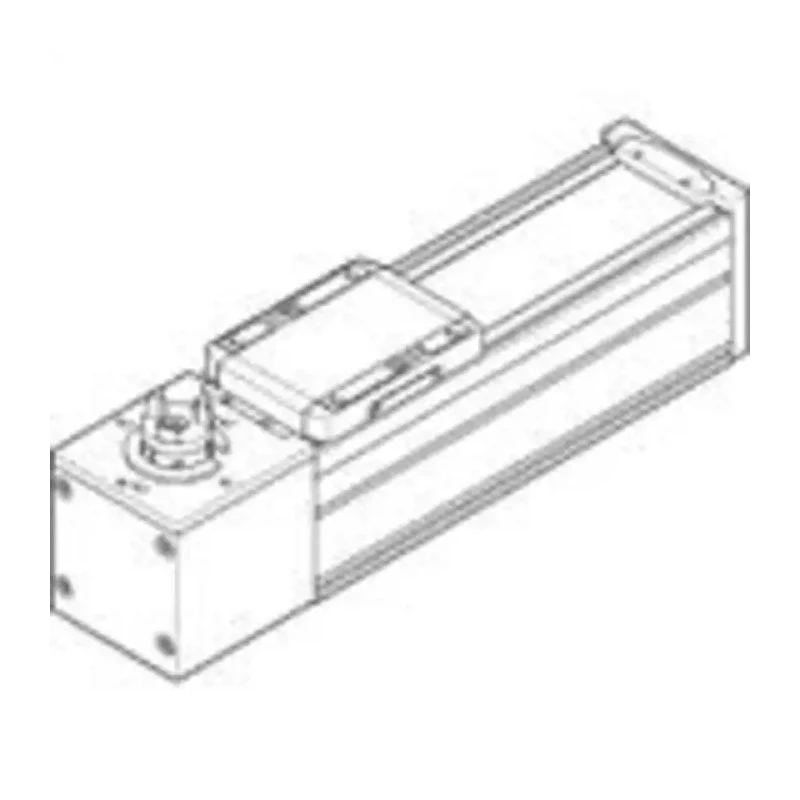

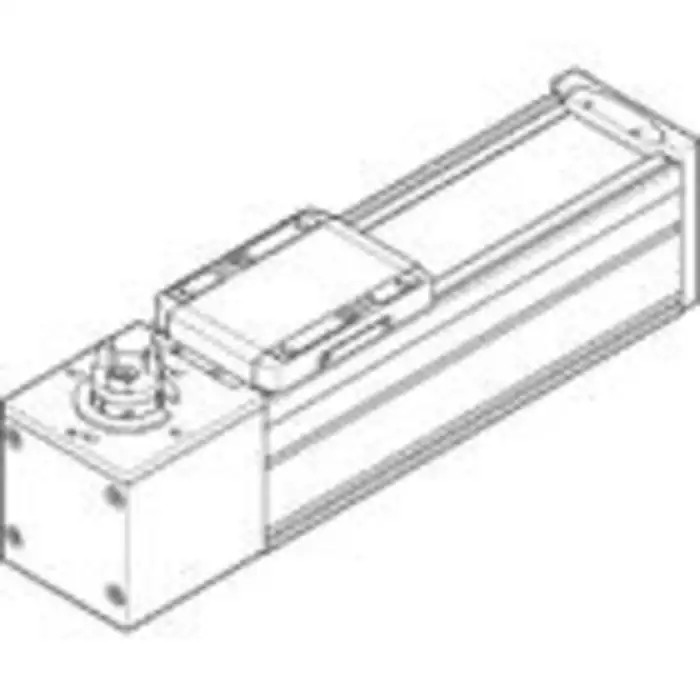

Festo Electrical Linear Actuator 500 mm Stroke Length 600N Maximum Load 1500mm/s Speed ELGC-TB-KF-80-500

Festo ELGC-TB-KF-80-500 Electrical Linear Actuator is a high-performance actuator featuring a 500 mm stroke length and the capability to handle maximum loads up to 600N. This model includes advanced stepper and servo motor technology, facilitating precise and efficient positioning with speeds reaching up to 1500 mm per second. It incorporates a toothed belt spindle type designed for dynamic and responsive movement, combined with internal guides and precision guide rails that provide high load capacity and reliability.

The actuator boasts a 100% duty cycle rating, ensuring continuous operation in demanding industrial environments. Its IP40 rating safeguards it from solid contaminants, making it suitable for many manufacturing and automation applications. Operating temperatures range from 0°C to 50°C, supporting varied industrial conditions.

The ELGC-TB-KF-80-500 is part of Festo's modular ELGC-TB series, allowing easy integration into multi-axis systems with scalable design and standard interface compatibility. The actuator’s lightweight and compact design facilitate cost-effective installation and maintenance. Additionally, features such as breathing ports prevent dirt accumulation by enabling overpressure or vacuum cleaning mechanisms.

Designed for industrial, factory automation, machine tooling, and other mechanical systems, this electric linear actuator delivers long service life with high-performance drive and guide elements. The common platform architecture reduces the need for adapter plates and simplifies system assembly, thereby reducing warehousing costs and accelerating design work.

Compact size and lightweight for simple mounting and cost efficiency. Stepper and servo motor technologies for dynamic and precise control. Toothed belt spindle for dynamic applications; suitable also for precision setups.

IP40 rated enclosure for protection in industrial environments. Fully RoHS compliant in material and manufacturing process. Supports multi-axis configurations with integrated guides and modular components. Wide operating temperature range suitable for diverse factory or industrial settings.

High duty cycle ensures suitability for continuous operation. Robust build with internal guide rails for long-term reliability. Ideal for use in factory automation, industrial machinery, and machine tools. Explore the comprehensive range of Festo products and industrial linear actuators at EnvMart for reliable and precise automation solutions.
