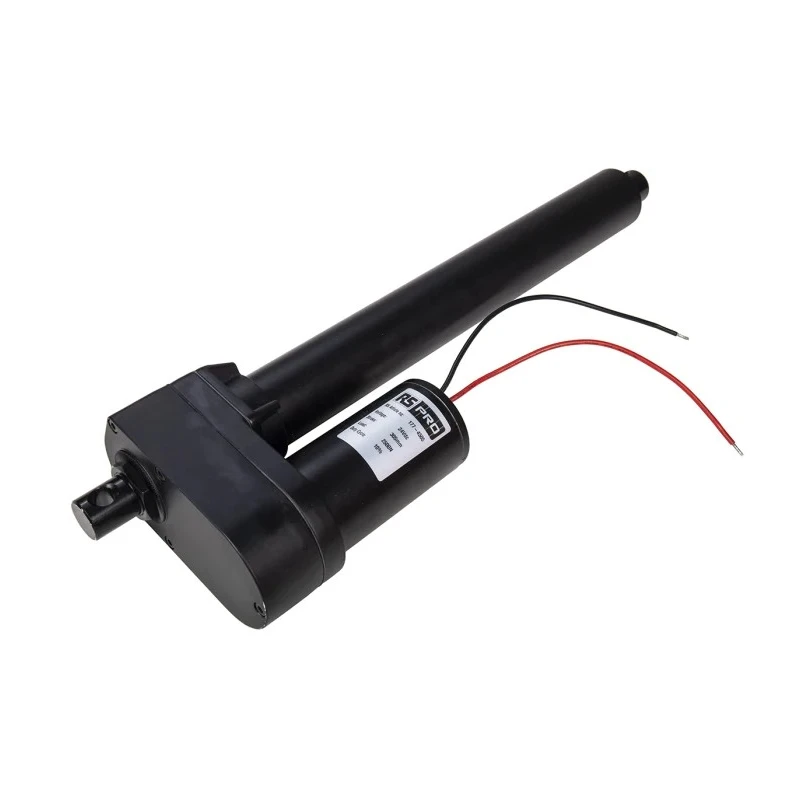

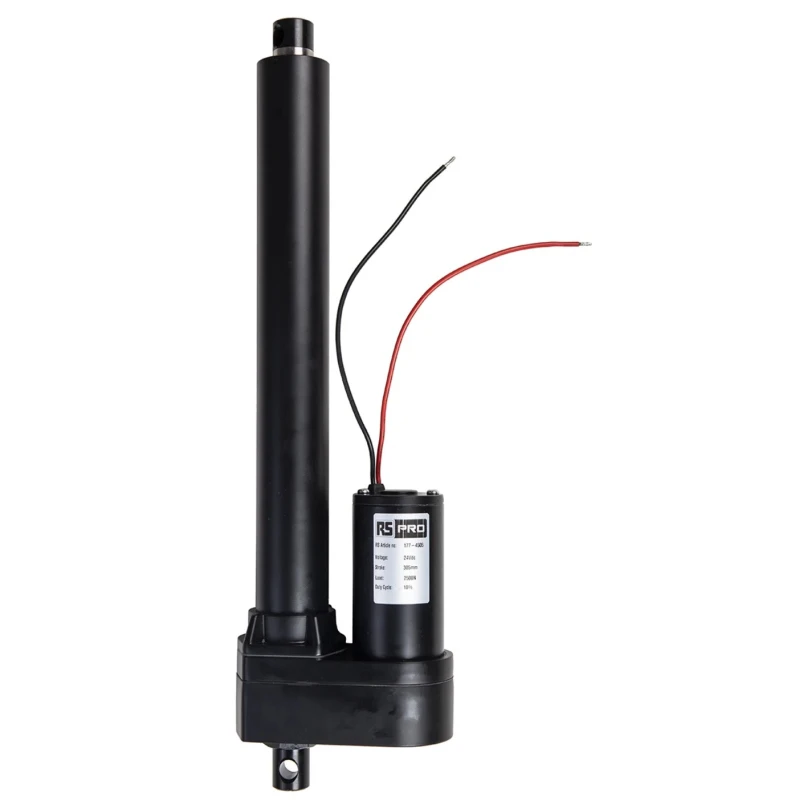

RS PRO Electrical Linear Actuator 305 mm, 2500N, 24V DC, ID10 Series, 67.1 mm/s, IP54, 177-4505

The RS PRO 177-4505 Electrical Linear Actuator combines high load capability and reliable performance, making it ideal for industrial automation, machine tools, and adjustable systems. Featuring a robust 305 mm stroke length and delivering a maximum force of 2500N, this actuator is engineered to meet demanding operational requirements while providing smooth, precise linear motion.

Equipped with a DC motor operating at 24V, the actuator ensures energy efficiency with minimal operational noise and reduced maintenance requirements. Its maximum speed of 67.1 mm/s (no load) allows for swift movement, while a closed overall length of 540 mm permits compact installation in environments where space is limited. The actuator's IP54 protection rating safeguards its internal components from dust and water, supporting reliable operation in harsh conditions.

Designed for use in industrial machinery, automation processes, office automation, and solar tracking systems, this actuator offers versatility in both pushing and pulling tasks. Its spindle type features a pitch of 5.08 mm, contributing to the actuator's mechanical stability. Capable of working in temperatures ranging from -20°C to 65°C, the device adapts to a wide range of environments.

The ID10 Series linear actuators from RS PRO are renowned for their heavy load and high-speed design, supporting automation applications that require rapid and precise movement. The black design contributes to an unobtrusive look in technical settings. Users benefit from minimal operational costs and high energy efficiency, making this actuator suitable for both new and retrofit installations across manufacturing, laboratory, and commercial environments.

Applications for the RS PRO 177-4505 include machine components, industrial machinery, window openers, adjustable car driver mechanisms, and solar tracking solutions. Its DC motor technology eliminates the need for hydraulic fluids or high-pressure valves, resulting in a cleaner and more manageable installation process.

This actuator is certified to EN 55014-2:2015 and EN 55014-1:2017+A11:2020 standards, meeting stringent regulatory requirements. Country of origin is Taiwan, Province Of China. The actuator should be used in combination with a compatible fitting controller and handset for optimal control.

Heavy-duty linear actuator suitable for precise linear motion tasks. 305 mm stroke length enables extended reach for various applications. Delivers up to 2500N force for push and pull operations. Operates on 24V DC voltage for energy-efficient performance.

IP54 rating provides protection against dust and water ingress. Maximum speed of 67.1 mm/s ensures rapid movement when unloaded. Closed length of 540 mm enables compact installation. DC motor technology ensures low noise and minimal maintenance.

Suitable for automation, machine components, and industrial machinery. Rated for operation between -20°C and 65°C for wide environmental adaptability. Explore more linear motion solutions and industrial automation products from RS PRO at EnvMart.
