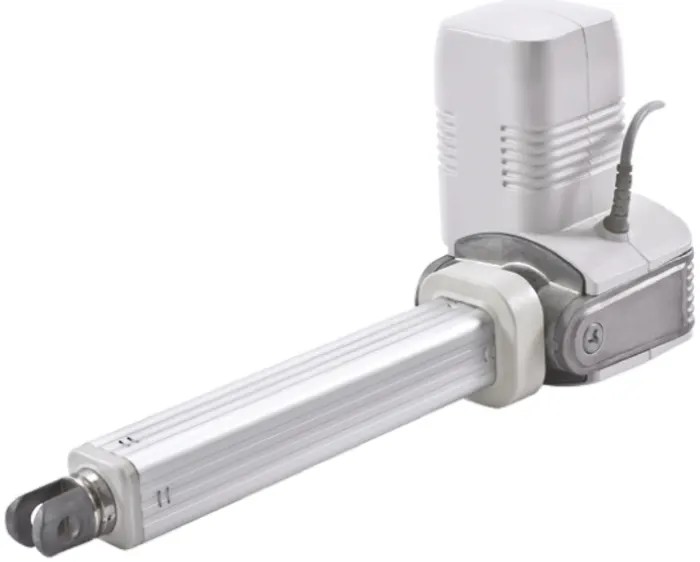

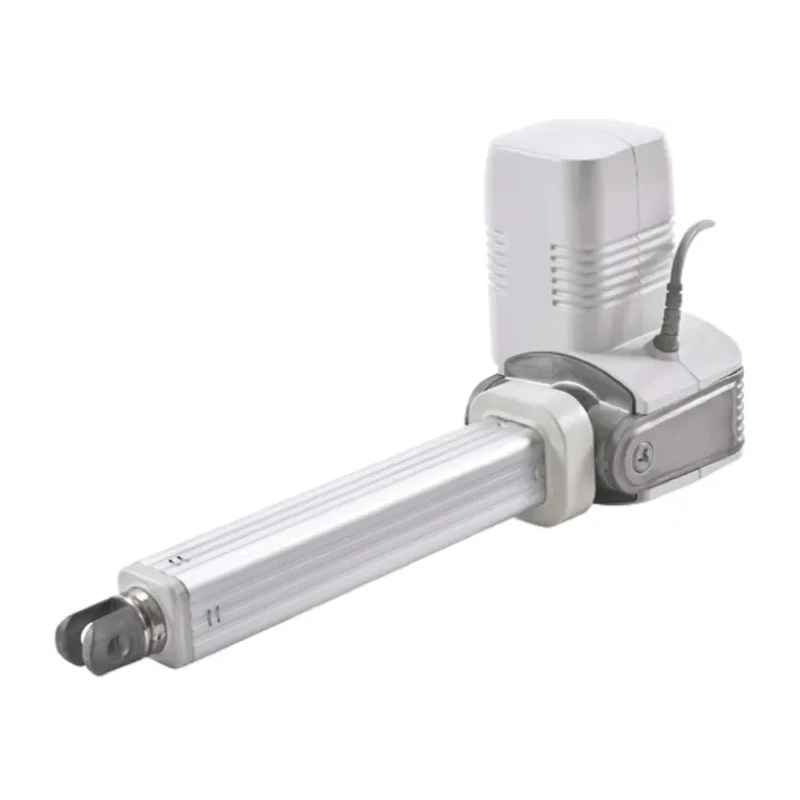

Ewellix Makers in Motion Electric Linear Actuator MAX30-A300515AC5100-000 8000N 300 mm Stroke 7 mm/s DC Motor IP66S
Specifications
| Country of Origin | India |
|---|---|
| Brand | Ewellix Makers in Motion |
| Model | MAX30-A300515AC5100-000 |
| IP Rating | IP66S |
| Duty Cycle | 10% |
| Series | MAX30 |
| Maximum Load | 8000N |
| Maximum Operating Temperature | 40°C |
| Stroke Length | 300mm |
| Maximum Force | 8000N |
| Standards/Approvals | RoHS |
| Motor Technology | DC Motor |
| SKF Electric Linear Actuator, 24V dc, 200mm strokeBrand | SKF |
| Ewellix Makers in Motion, 8000N 150 mm 7mm/sBrand | Ewellix Makers in Motion |
Key Features
- Equipped with DC motor technology for reliable and efficient operation.
- Stroke length of 300 mm to accommodate various linear motion applications.
- Maximum load capacity of 8000 Newtons enables heavy-duty use.
- Operating speed of 7 mm per second ensures precise movement control.
- IP66S rating provides excellent resistance against dust and water ingress.
- Duty cycle of 10% supports intermittent use without performance degradation.
- Features a back-up nut for enhanced safety and service life.
- Compact and visually aesthetic design for versatile mounting orientation.
Product Description
Ewellix Makers in Motion MAX30-A300515AC5100-000 Electric Linear Actuator delivers a maximum force of 8000 Newtons with a stroke length of 300 mm and an operating speed of 7 mm/s. Utilizing a DC motor and featuring an IP66S rating for protection, this actuator is designed for durability and high performance in diverse industrial environments.
This actuator features silent operation and a back-up nut as a standard safety feature, ensuring longer service life and operational safety. Its compact and aesthetic construction allows for flexible installation both vertically and horizontally.
The integrated control unit and the ability to synchronize actuators enable precise and coordinated movement control for complex applications. Its duty cycle of 10% makes it suitable for intermittent use, particularly where high force and precision are required.
Common industrial applications include food and beverage processing, medical devices, pharmaceutical equipment, solar tracking systems, and various general industrial and construction machinery. The actuator meets RoHS compliance standards, affirming its environmental and safety credentials.
Equipped with DC motor technology for reliable and efficient operation. Stroke length of 300 mm to accommodate various linear motion applications. Maximum load capacity of 8000 Newtons enables heavy-duty use. Operating speed of 7 mm per second ensures precise movement control.
IP66S rating provides excellent resistance against dust and water ingress. Duty cycle of 10% supports intermittent use without performance degradation. Features a back-up nut for enhanced safety and service life. Compact and visually aesthetic design for versatile mounting orientation.
Suitable for synchronization and includes integrated control unit capabilities. Ideal for applications in food and beverage, medical, pharmaceutical, solar tracking, and general industrial sectors.
Choose Ewellix Makers in Motion actuators for dependable and precise linear motion solutions. Explore similar products in the Electric Linear Actuators category on EnvMart for diverse industrial power transmission needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load capacity of this electric linear actuator is 8000 Newtons.
This model has a stroke length of 300 mm.
The operating speed of this actuator is 7 mm per second.
The duty cycle of this actuator is 10%, which supports intermittent use without performance degradation.
The IP66S rating provides excellent resistance against dust and water ingress, making it suitable for challenging environments.
The maximum operating temperature for this actuator is 40°C.
This actuator is suitable for applications in food and beverage processing, medical devices, pharmaceutical equipment, solar tracking systems, and general industrial machinery.
Yes, it features a back-up nut as a standard safety feature to enhance service life and operational safety.
This actuator utilizes DC motor technology for reliable and efficient operation.
Yes, its compact and aesthetic design allows for versatile mounting orientation, both vertically and horizontally.
Yes, the actuator meets RoHS compliance standards, affirming its environmental and safety credentials.
This model includes an integrated control unit and capabilities for synchronizing actuators, enabling precise and coordinated movement control.
