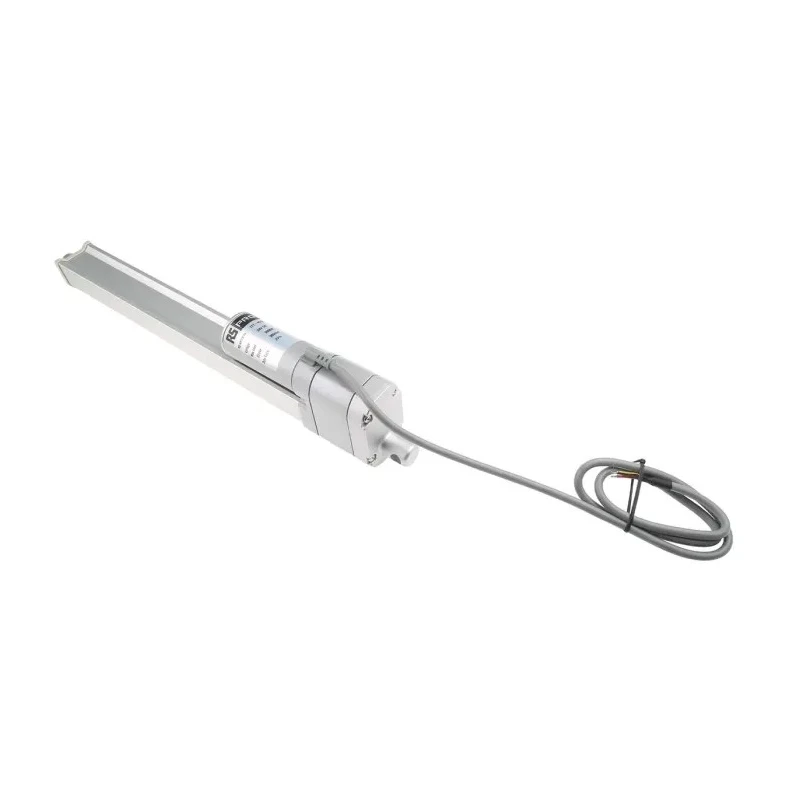

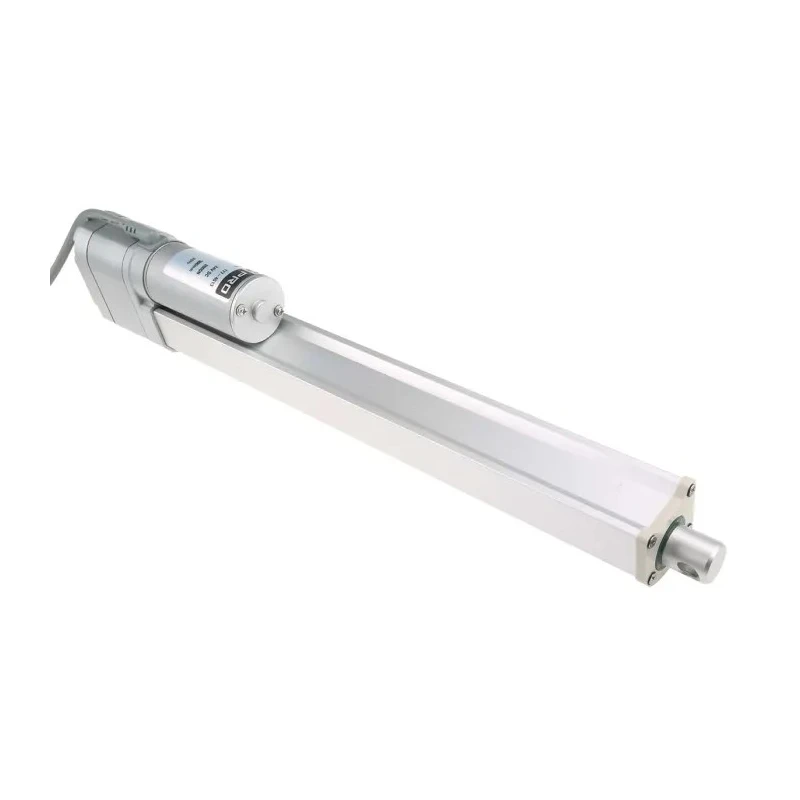

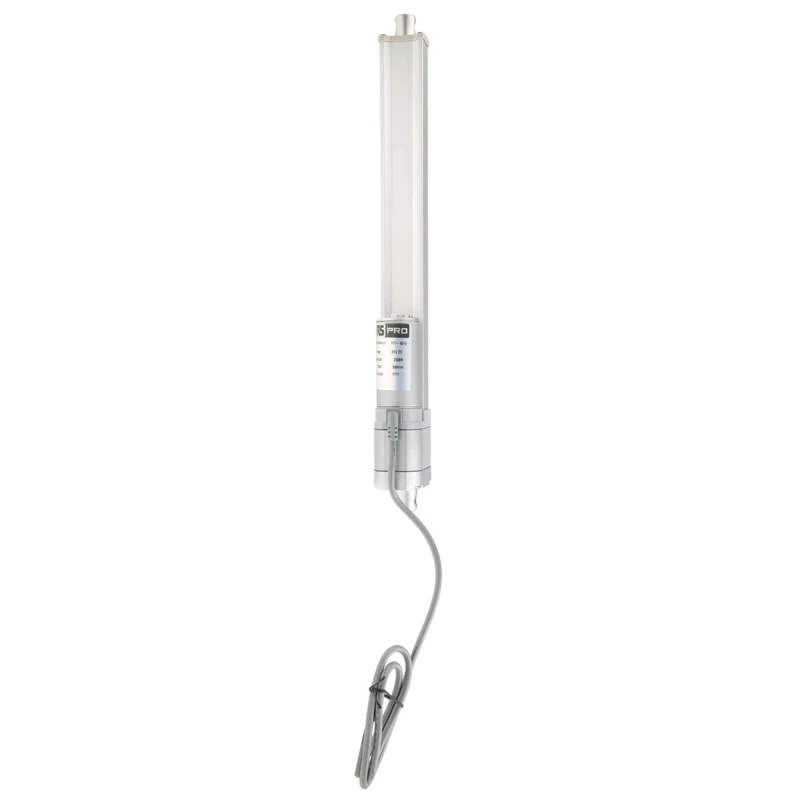

RS PRO Electrical Linear Actuator 300 mm Stroke, 2000N, 24V DC, IP54, LD20 Series, Model 177-4513

RS PRO model 177-4513 is a robust electrical linear actuator engineered for precision movement in industrial and commercial environments. This LD20 Series actuator delivers a stroke length of 300 mm and supports a maximum load of 2000N, making it suitable for tasks requiring reliable push - pull action. Operating on a 24V DC supply, it incorporates advanced DC motor technology that converts electrical energy into linear mechanical motion efficiently and with minimal operational noise.

Designed for applications requiring straight-line motion, the actuator is used in machinery, automation systems, adjustable furniture, window openers, home care equipment, and solar tracking installations. Its double-thread spindle ensures smooth and accurate positioning, while integrated preset limit switches protect the mechanism from excessive stroke, extending operational lifespan and reducing maintenance needs.

The actuator's closed length is 460 mm, enabling installation in confined spaces. With an IP54 ingress protection rating, it resists dust accumulation and splash water, supporting use in demanding environments. It boasts an ambient working temperature range from - 25°C to 65°C, accommodating both cold and warm industrial settings. The aluminum-grey body offers durability, corrosion resistance, and professional appearance.

Additional technical features include a spindle pitch of 4.23 mm, quick-response performance at 7.6 mm/s maximum speed, and energy-efficient operation. The actuator’s limit switches ensure user safety and prevent motor stall conditions. The 1.48 kg weight facilitates manageable installation while supporting substantial load ratings.

Typical use cases span industrial automation, laboratory equipment, machine tools, office/home automation, adjustable furniture, solar tracking, and HVAC system components. The device is compliant with EN 55014-2:2015 and CE / EN55014-1:2017+A11:2020 standards, underscoring its suitability for regulated environments.

This actuator is a versatile, quiet, and reliable solution for automation where installation space is limited and precise movement is required. Its advanced design minimizes operational costs and provides energy savings over hydraulic systems.
