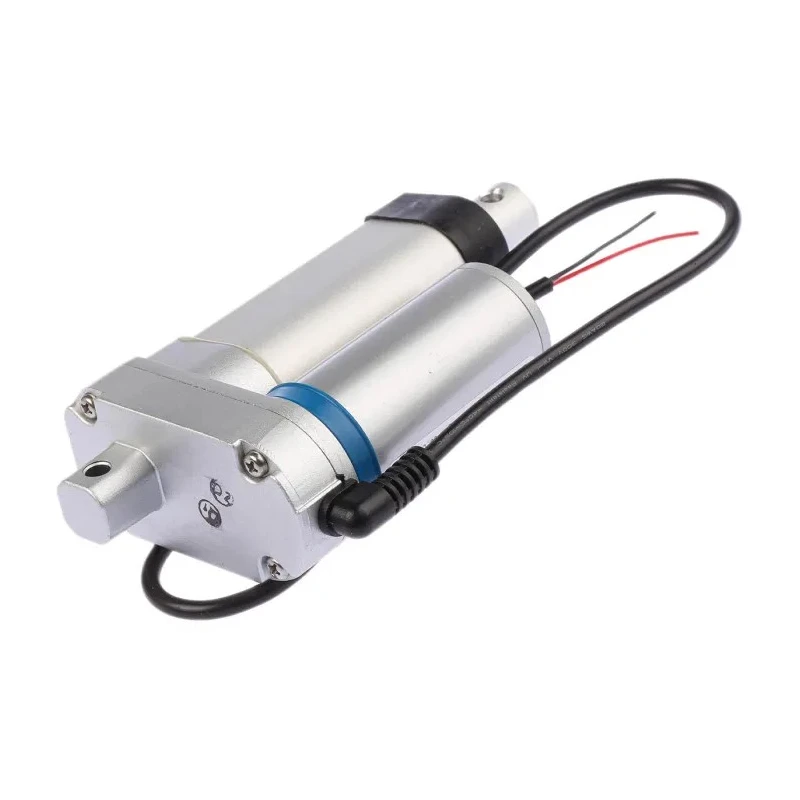

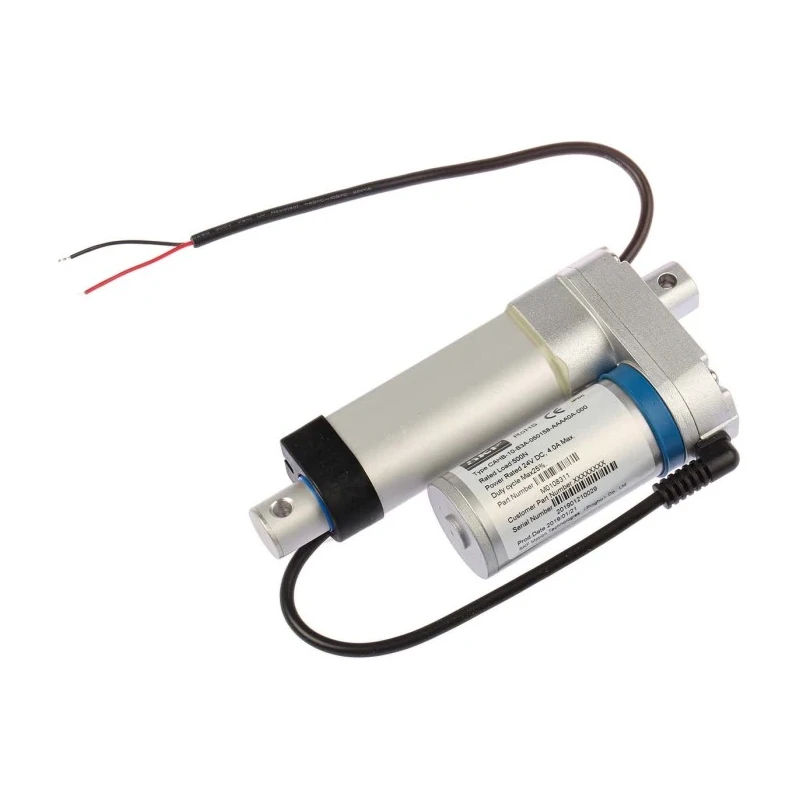

Ewellix Makers in Motion Miniature Electric Linear Actuator 24V DC 500N Load 50mm Stroke 16mm/s CAHB-10-B3A-050158AAA000-000
Specifications
| Country of Origin | China |
|---|---|
| Brand | Ewellix Makers in Motion |
| Model | CAHB-10-B3A-050158AAA000-000 |
| IP Rating | IP66S |
| Duty Cycle | 25% |
| Series | CAHB-10 |
| Maximum Load | 500N |
| Maximum Operating Temperature | 85°C |
| Stroke Length | 50mm |
| Maximum Force | 500N |
| Spindle Type | TR12 Screw |
| Standards/Approvals | RoHS |
| Motor Technology | DC Motor |
| Ewellix Makers in Motion, 500N 50 mm 16mm/sBrand | Ewellix Makers in Motion |
Key Features
- Operates with a maximum speed of 16mm/s for efficient and timely actuation.
- Features corrosion-resistant zinc alloy gear housing and aluminium extension for durable performance.
- Pre-lubricated spindle with TR12 screw type supporting smooth linear motion.
- Duty cycle of 25% with IP66S rating ensures protection in damp and harsh environments.
- Designed for use in applications like computing equipment, factory machinery, and medical devices.
- Wide operating temperature range from -40°C to +85°C suitable for extreme environments.
Product Description
Ewellix Makers in Motion CAHB-10-B3A-050158AAA000-000 miniature electric linear actuator offers a 50mm stroke length and a robust maximum load capacity of 500N powered by a reliable 24V DC motor. This actuator is ideal for precise automated movement in restricted spaces or compact systems requiring controlled linear motion.
The actuator's construction features a zinc alloy gear housing combined with an aluminium extension, providing excellent corrosion resistance and protection against damp conditions. It comes pre-lubricated and employs a TR12 screw spindle for smooth and consistent operation. The device achieves a maximum actuation speed of 16mm/s to enhance efficiency.
This unit supports a duty cycle of 25% and carries an IP66S rating, ensuring it withstands ingress of dust and water jets, making it suitable for harsh industrial settings. Its operational temperature range extends from -40°C to +85°C, enabling reliable functionality across a wide range of environmental conditions.
Self-locking capability secures the actuator position once movement is complete, improving safety and performance. It can be mounted horizontally or in other orientations depending on system design requirements.
Maximum load support of 500N (approximately 50 kg) for diverse industrial uses. Compact 50mm stroke length designed for small scale applications and limited access areas. Robust IP66S ingress protection for harsh and damp environments.
Wide temperature tolerance from sub-zero to high heat conditions. Applications include computing equipment automation, factory machinery, and medical equipment actuation.
This actuator is engineered for industrial, laboratory, manufacturing, and medical sectors requiring precise, reliable linear motion. Its durability and performance characteristics make it a versatile component in mechanical power transmission systems.
Explore similar Electric Linear Actuators and mechanical power transmission solutions through EnvMart's comprehensive industrial tools catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The actuator has a maximum load capacity of 500N, which is approximately 50 kg.
This model features a stroke length of 50mm, making it suitable for small-scale applications.
It operates at a maximum speed of 16mm/s, facilitating efficient actuation.
This unit is powered by a reliable 24V DC motor, providing effective linear motion.
The actuator supports a duty cycle of 25%, which indicates its operational efficiency over time.
It carries an IP66S rating, ensuring protection against dust ingress and water jets, suitable for harsh environments.
The actuator can operate in a wide temperature range from -40°C to +85°C, making it suitable for extreme conditions.
It employs a TR12 screw spindle, which supports smooth and consistent linear motion.
The actuator features a corrosion-resistant zinc alloy gear housing and an aluminium extension for enhanced durability.
Yes, it can be mounted horizontally or in other orientations depending on the system design requirements.
It is designed for use in applications such as computing equipment, factory machinery, and medical devices.
The actuator complies with RoHS standards, ensuring it meets environmental and safety regulations.
