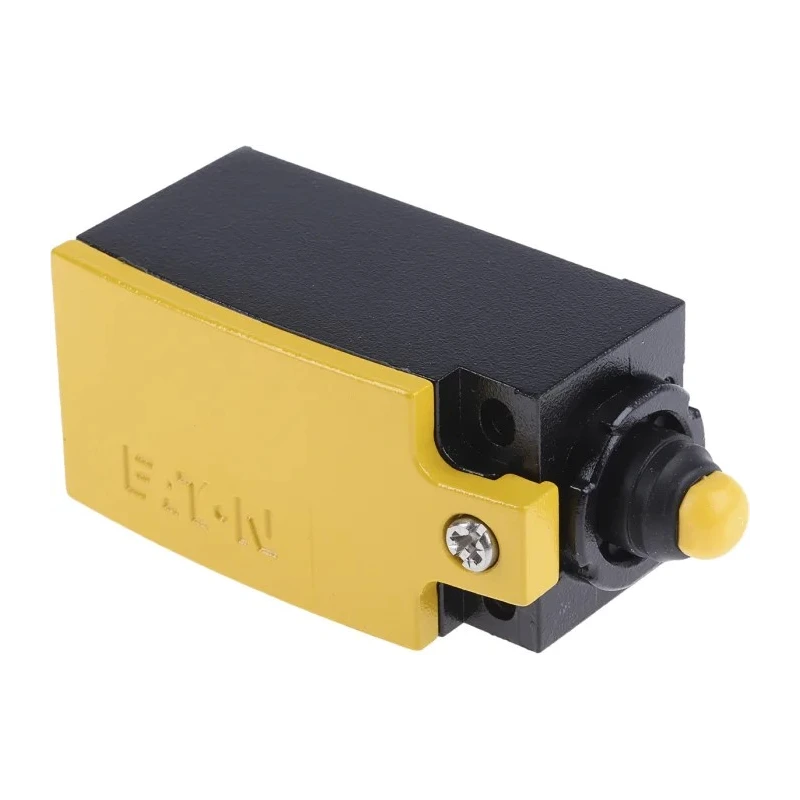

Eaton LS-Titan Series Plunger Limit Switch, 1 NO/1 NC, Metal Housing, IP67 IP66, 415V AC, 6A Current, Model 266140 LSM-11S

Eaton 266140 LSM-11S LS-Titan Series plunger limit switch features a durable metal housing and excellent ingress protection ratings of IP67 and IP66. Designed for industrial applications, this robust limit switch provides reliable position monitoring and control of protective guards, machinery doors, and safety interlocks.

The switch is equipped with a combination of 1 normally open (NO) and 1 normally closed (NC) snap action contacts delivering a switching current capacity of 6A at 415V AC and up to 220V DC. It uses patented Cage Clamp terminal technology that simplifies wiring while ensuring secure connections without the need for wire stripping or soldering.

Its construction supports an extensive operating temperature range from -25°C to +70°C and is capable of prolonged usage with a mechanical life of 8 million cycles, ideal for heavy-duty industrial environments including manufacturing, automation, control systems, and safety applications.

Designed for vertical mounting, it requires an operating force of 8N to actuate. The device's compliance with safety certifications such as UL, IEC, EN, and CSA provides assurance for usage in regulated industrial contexts.

The LS-Titan series is widely valued for its heavy-duty plunger actuator and metal body that withstands harsh conditions, including dust and water exposure, suited for indoor and outdoor installations. The ingress protection ratings IP66 and IP67 provide complete protection against dust and withstand powerful water jets and temporary submersion.

1 NO/1 NC contact configuration for flexible control functions. Metal housing enhances durability and ruggedness. Patented Cage Clamp ensures secure wire connections. Wide temperature range from -25°C to 70°C. Mechanical life rated for 8 million cycles.

Ingress protection IP66 and IP67 for dust and water resistance. Snap action contacts for precise switching. Certified under UL, IEC, EN, and CSA standards. Vertical mounting orientation with 8N operating force. Manufactured in Germany ensuring high quality.

This Eaton LS-Titan Series plunger Limit Switch is ideal for use in industrial automation, machinery safety interlocks, manufacturing safety systems, and electrical control panels. It is engineered to provide reliable operation for critical applications requiring precise position feedback and robust environmental protection.
