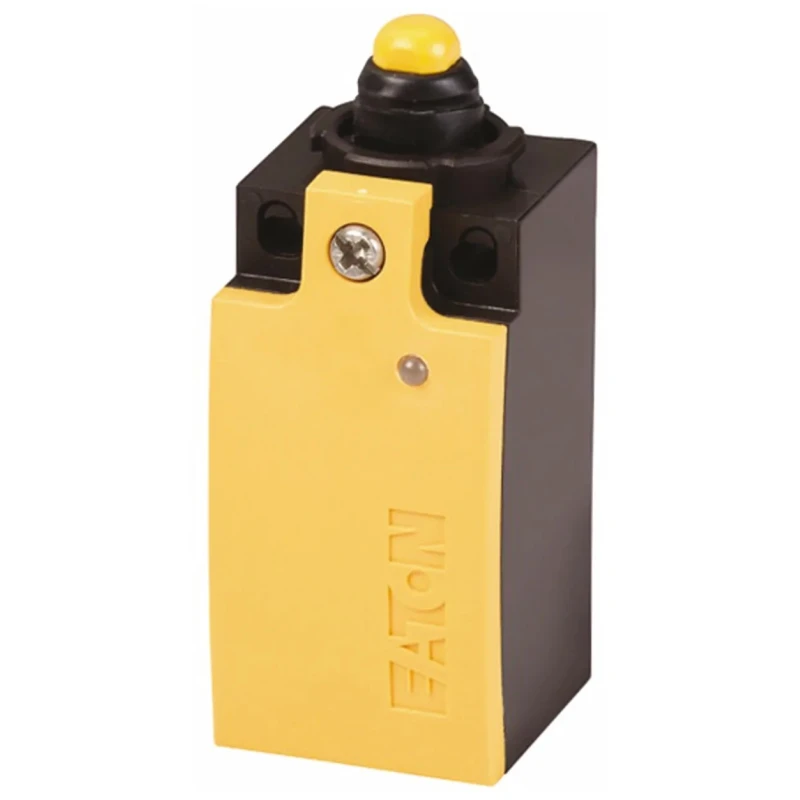

Eaton LS-Titan Series Plunger Limit Switch, 1 NO/1 NC, IP66, IP67, Metal Housing, 415V AC, 6A 266149 LSM-11D
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Eaton |
| Length | 76mm |
| Model | 266149 LSM-11D |
| Depth | 31mm |
| IP Rating | IP66, IP67 |
| Width | 33.5mm |
| Housing Material | Metal |
| Series | LS-Titan |
| Maximum Operating Temperature | 70°C |
| Mounting Orientation | Vertical |
| Contact Configuration | 1 NO/1 NC |
| Actuator Type | Plunger |
| Contact Type | Slow Action |
| Minimum Operating Temperature | -25°C |
| Switching Current | 6A |
| Terminal type | Cage Clamp |
| Standards/Approvals | CSA, EN, IEC, UL |
| Operating Force | 8N |
| Mechanical Life | 8000000Cycles |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 415V ac |
| Conduit Entry | Cable Entry Metrical |
Key Features
- The plunger actuator ensures precise mechanical operation in industrial applications.
- Durable metal housing offers robust protection against harsh environments.
- High IP66 and IP67 ratings provide excellent resistance to dust and water ingress.
- Contact configuration includes 1 normally open (NO) and 1 normally closed (NC) contact.
- Operates at switching voltages up to 415V AC and switching currents up to 6A.
- Suitable for vertical mounting orientation with a mechanical life of 8 million cycles.
- Temperature operating range from -25°C to 70°C for versatile usage.
- Cage clamp terminals allow for secure and reliable wiring connections.
Product Description
Eaton 266149 LSM-11D LS-Titan Series Plunger Limit Switch is engineered for industrial and automation control applications requiring reliable guard and door position monitoring. The device features a robust metal housing rated IP66 and IP67, providing protection against dust penetration and water jets, suitable for demanding environments.
This limit switch integrates a slow action plunger actuator with 1 normally open and 1 normally closed contact configured for safety circuits. It is capable of switching up to 415V AC at 6A with additional DC voltage switching capability of 220V. The switch is designed to operate within a wide temperature range from -25°C to 70°C, suitable for indoor and outdoor installations.
The heavy-duty design includes cage clamp terminals for easy wiring and installation flexibility with vertical mounting orientation. Its long mechanical life of 8 million cycles ensures dependable, low-maintenance operation in industrial machinery safety control systems.
Originating from Germany, this product suits applications in manufacturing automation, machinery guarding, conveyor system safety, and process control. The plunger actuator is ideal for precise detection of door or guard positions.
Heavy-duty metal housing and IP66/IP67 ratings make it durable in harsh environments. Contact rating supports 6A current at 415V AC for versatile industrial usage. Long mechanical life provides reliability in continuous operation scenarios.
Compliant with international safety standards for enhanced safety assurance. Cage clamp terminals simplify secure electrical connections. Suitable for vertical mounting and mechanical force operation of 8N. Operating temperature suitability expands possible installation conditions.
This Eaton LS-Titan Series Plunger Limit Switch is a critical device in industrial automation and safety control applications, ensuring reliable positional feedback and emergency stop functions for industrial machines and safety guards. Explore more products in our Limit Switch category for compatible automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It can switch up to 415V AC and has a DC voltage switching capability of 220V.
This model features a contact configuration of 1 normally open (NO) and 1 normally closed (NC) contact.
The dimensions are 76mm in length, 33.5mm in width, and 31mm in depth.
It operates within a temperature range from -25°C to 70°C.
It has a mechanical life of 8 million cycles.
It is designed for vertical mounting orientation.
It features cage clamp terminals for secure and reliable wiring connections.
The housing is made of metal, providing robust protection.
The maximum switching current is 6A.
It complies with CSA, EN, IEC, and UL standards.
It is suitable for applications in manufacturing automation, machinery guarding, conveyor system safety, and process control.
It uses a plunger actuator, which ensures precise mechanical operation.
