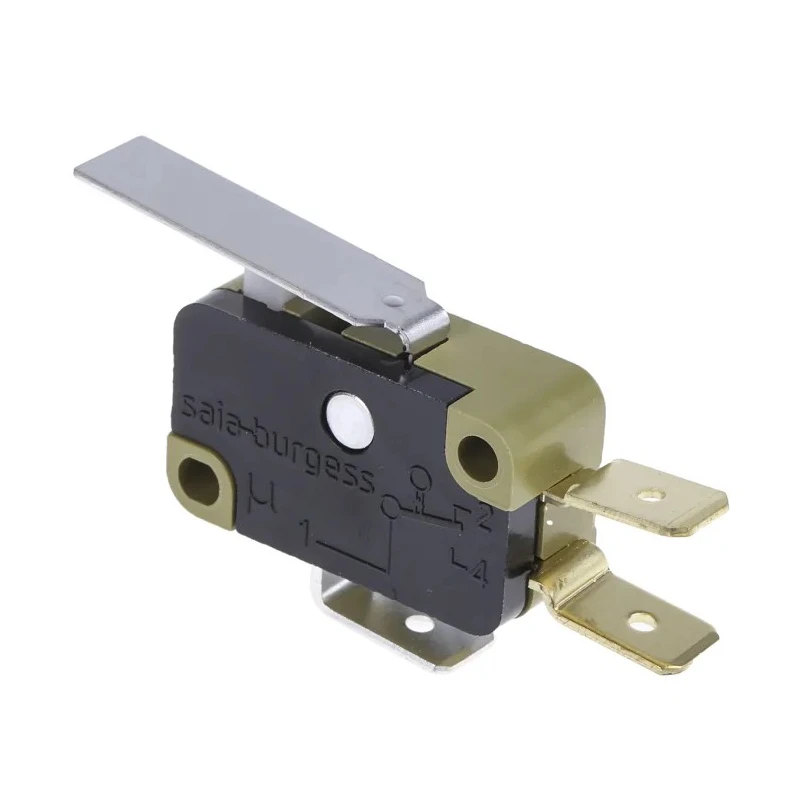

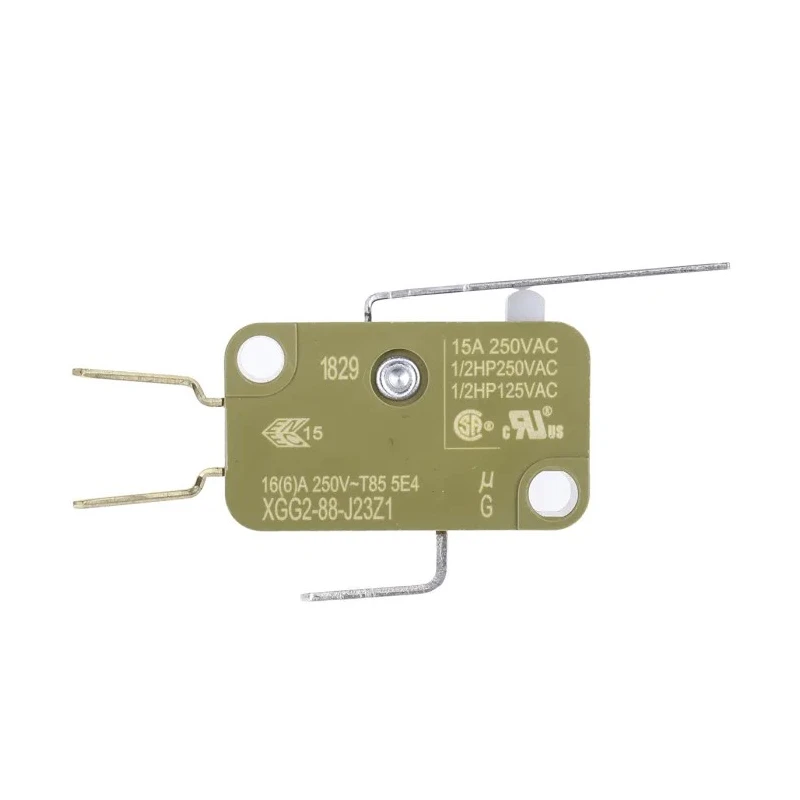

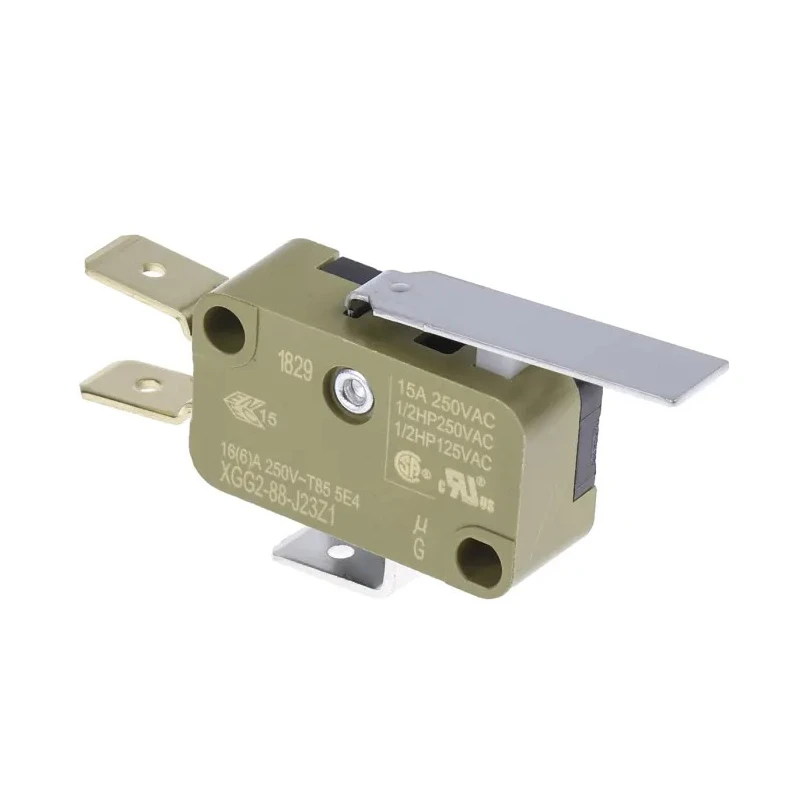

Saia-Burgess Short Lever Micro Switch Tab Terminal 16A 250 V AC SPDT IP40 XGG2-88-J23Z1

Saia-Burgess XGG2-88-J23Z1 short lever micro switch with tab terminal is a high precision miniature switch designed for industrial and electrical automation applications. It operates at a contact current of 16A with AC voltage rating up to 250 V, featuring a SPDT (Single Pole Double Throw) contact configuration ideal for control circuits requiring alternate switching.

The housing is made of melamine formaldehyde thermosetting material, providing excellent insulation properties and mechanical robustness. Its short lever actuator type enables precise mechanical activation, while the tab terminal allows for straightforward soldering or quick connection using compatible connectors.

This micro switch offers an IP40 ingress protection rating, safeguarding its internal components against solid objects larger than 1 mm. It requires an operating force of 1.4 N to actuate and supports a wide operating temperature range from -40 °C to 85 °C, making it suitable for industrial environments including control panels, machinery automation, HVAC systems, and manufacturing equipment.

The mechanical life expectancy of 50 million operations ensures durable and reliable performance over extended use, reducing maintenance and downtime. The switch design complies with IEC 60335-1 safety standards, assuring users of quality and safety compliance for various applications.

Equipped with a short lever actuator for precise switching performance. Features a tab terminal suitable for easy connection and integration. Supports a switch contact current of 16 amperes for robust electrical applications.

Constructed using melamine formaldehyde thermosetting housing for durability and safety. Designed as a miniature micro switch with SPDT contact arrangement for versatile circuit control. IP40 rating provides protection against solid objects larger than 1 mm.

Operating force of 1.4 newtons ensures reliable actuation with minimal effort. Operates within a temperature range of -40 °C to 85 °C for diverse environments. Mechanical life rated at 50 million operations for long-lasting usage.

Complies with IEC 60335-1 standards for safety and performance.

This micro switch is widely used in industrial automation systems, electrical controls, safety interlock devices, and general-purpose switching applications requiring reliable, high endurance, and precision actuation.
