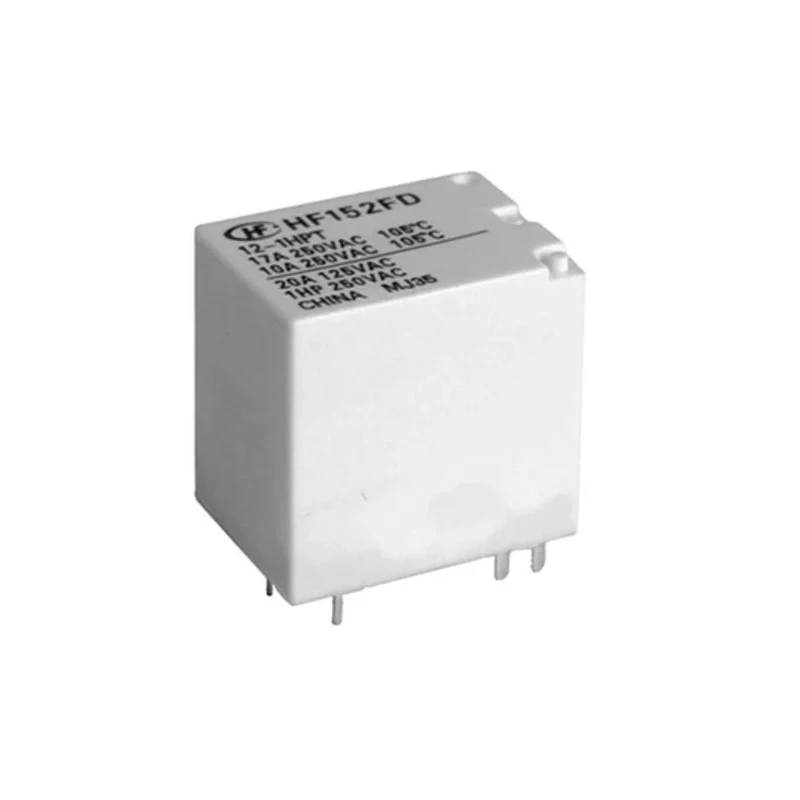

Hongfa Europe GMBH PCB Power Relay 12V dc Coil 20A Switching Current SPST HF152FD/012-1HTF(335)
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 20.6mm |
| Length | 21.2mm |
| Model | HF152FD/012-1HTF(335) |
| Width | 16mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HF152FD |
| Maximum Operating Temperature | 105°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 20A |
| Terminal type | PCB Pin |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 400Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 360mW |
Key Features
- The relay utilizes a silver alloy contact material for high electrical endurance.
- Operating temperature range from -40°C to 105°C ensures reliable performance in diverse environments.
- Designed for PCB mounting with PCB pin terminal type for secure electrical connections.
- Coil resistance of 400Ω and coil power consumption of 360mW ensure efficient operation.
- Supports switching AC voltage of up to 400V ac with contact resistance of 100mΩ.
- Environmental friendly design compliant with RoHS standards.
- Applications include automotive, household appliances, industrial machinery, and telecommunication equipment.
Product Description
Hongfa Europe GMBH HF152FD/012-1HTF(335) PCB Power Relay is a high-performance, single-pole single-throw (SPST) relay designed for PCB mounting applications. Equipped with a 12V dc coil and silver alloy contacts, it offers high electrical endurance for switching currents up to 20A, making it ideal for demanding industrial and electronic control systems.
This relay features an operating temperature range from -40°C to 105°C and a coil resistance of 400Ω with a coil power consumption of 360mW. Its compact size - 21.2mm length, 16mm width, and 20.6mm height - enables excellent board space savings and integration in tight PCB layouts.
The relay offers an isolation voltage between coil and contacts of 2.5KVAC, ensuring safety and reliability in various electronic and automation systems. It is compliant with RoHS environmental standards, promoting sustainable manufacturing practices.
Designed for assembly using PCB pin terminals, this power relay supports switching AC voltages up to 400V and maintains a low contact resistance of 100mΩ. Its robust construction resists vibration and abrasion, and it has a high mechanical endurance with a life expectancy of up to 10 million cycles.
The relay is suitable for industrial machinery control, automotive electronic systems, household appliances, and telecommunications equipment. Its low power consumption and compact footprint offer efficient, space-saving solutions in control circuits and signal conditioning applications.
Contact material of silver alloy ensures durability and excellent electrical performance. The product provides high isolation voltage and reliable switching under heavy electrical loads. Designed to withstand harsh environmental conditions including temperature extremes and mechanical wear.
Ideal for industrial automation, electrical control panels, and signal relays, the Hongfa Europe GMBH HF152FD/012-1HTF(335) enhances system reliability while maintaining energy efficiency. Its standardized PCB mount format ensures compatibility with most PCB layouts used in power relay applications.
Explore other quality Power Relays and electronic components on EnvMart for your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this model is 20A.
It operates with a coil voltage of 12V DC.
This relay features a single-pole single-throw (SPST) contact configuration.
The operating temperature range is from -40°C to 105°C.
It is designed for PCB mounting with PCB pin terminals.
The contact material is made of silver alloy, which provides high electrical endurance.
The coil resistance is 400Ω.
It can switch AC voltages of up to 400V AC.
The height of this model is 20.6mm.
The dimensions are 21.2mm in length, 16mm in width, and 20.6mm in height.
Yes, it is compliant with RoHS environmental standards.
The contact resistance is 100mΩ.
