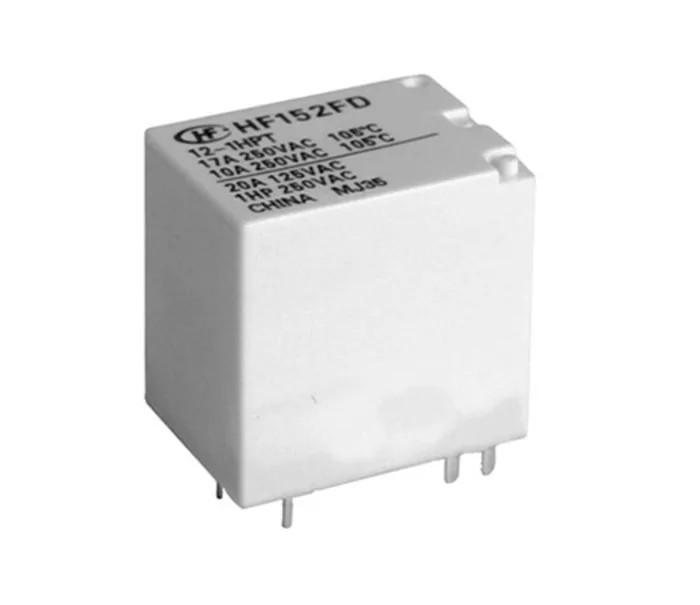

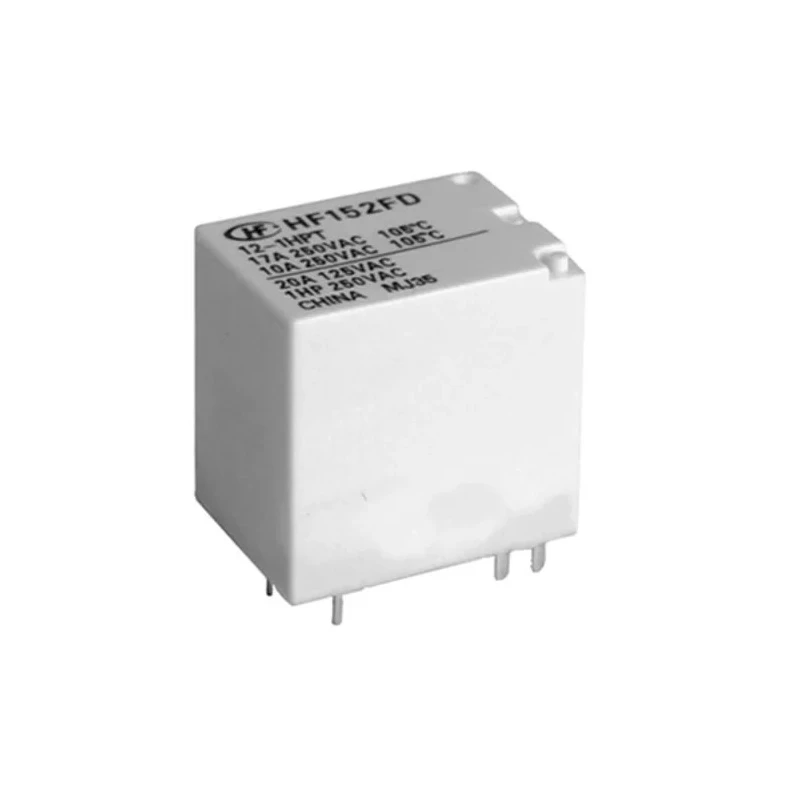

Hongfa Europe GMBH PCB Power Relay 12V DC Coil 20A Switching Current SPST HF152FD/12-1HTF(335)
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 20.6mm |
| Length | 21.2mm |
| Model | HF152FD/12-1HTF(335) |
| Width | 16mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HF152FD |
| Maximum Operating Temperature | 105°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 20A |
| Terminal type | PCB Pin |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 400Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 360mW |
Key Features
- The relay is designed for PCB mounting with a PCB pin terminal type.
- It operates within a temperature range from -40°C to 105°C.
- Coil power consumption is low at 360mW enabling efficient operation.
- Contact material is silver alloy, providing high electrical endurance and low contact resistance of 100mΩ.
- The relay supports switching AC voltage up to 400V AC.
- Measures 21.2mm in length, 20.6mm in height, and 16mm in width for compact PCB integration.
- Conforms to RoHS standards ensuring environmental compliance.
- Isolated coil to contact voltage withstand up to 2.5kVAC, offering excellent electrical isolation.
Product Description
Hongfa Europe GMBH HF152FD/12-1HTF(335) PCB Power Relay is a high-performance component designed with a 12V DC coil and capable of switching currents up to 20A in a single-pole single-throw (SPST) configuration. This power relay is optimized for PCB mounting, featuring PCB pin terminals and a compact form factor measuring 21.2mm length, 20.6mm height, and 16mm width.
The relay utilizes silver alloy contacts which ensure high electrical endurance, providing reliable performance over an extended life expectancy of up to 10 million cycles. It operates efficiently with a low coil power consumption of 360mW and is capable of switching AC voltages up to 400V AC.
Engineered for durability, it withstands operating temperatures ranging from -40°C to 105°C, and is resistant to vibration and abrasion. The isolation voltage between coil and contacts is rated at 2.5kVAC, rendering it suitable for high-reliability applications.
Ideal for use in a variety of industrial and commercial environments including automotive control systems, household appliances, industrial machinery, and telecommunications equipment, this relay ensures dependable switching performance.
The product complies with RoHS directives, underscoring its environmentally friendly design and manufacture. Its compact dimensions and subminiature structure contribute to excellent board space savings, making it an excellent choice for designers and engineers.
The relay supports a coil voltage of 12V DC. Contact configuration is SPST with silver alloy contacts. Switching current rating up to 20A and switching AC voltage rating of 400V AC. Operating temperature range is from -40°C to 105°C, ensuring suitability for harsh environments.
Coil resistance is 400Ω and coil power consumption is 360mW. Compact size: length 21.2mm, height 20.6mm, width 16mm. Contact resistance is low at 100mΩ, promoting efficient electrical conduction. Conforms to RoHS standard for environmental safety.
For reliable PCB Power Relay solutions, explore more products from Hongfa Europe GMBH at EnvMart tailored for industrial automation, electrical control, and signal conditioning applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a switching current of up to 20A.
The relay operates with a coil voltage of 12V DC.
It measures 21.2mm in length, 20.6mm in height, and 16mm in width.
The relay can switch AC voltage up to 400V AC.
It features a single-pole single-throw (SPST) contact configuration.
The coil power consumption is 360mW, allowing for efficient operation.
The contacts are made of silver alloy, ensuring high electrical endurance.
It operates within a temperature range from -40°C to 105°C.
The contact resistance is low at 100mΩ, promoting efficient electrical conduction.
It conforms to RoHS standards for environmental compliance.
The coil resistance is rated at 400Ω.
This model is designed for PCB mounting with PCB pin terminals.
