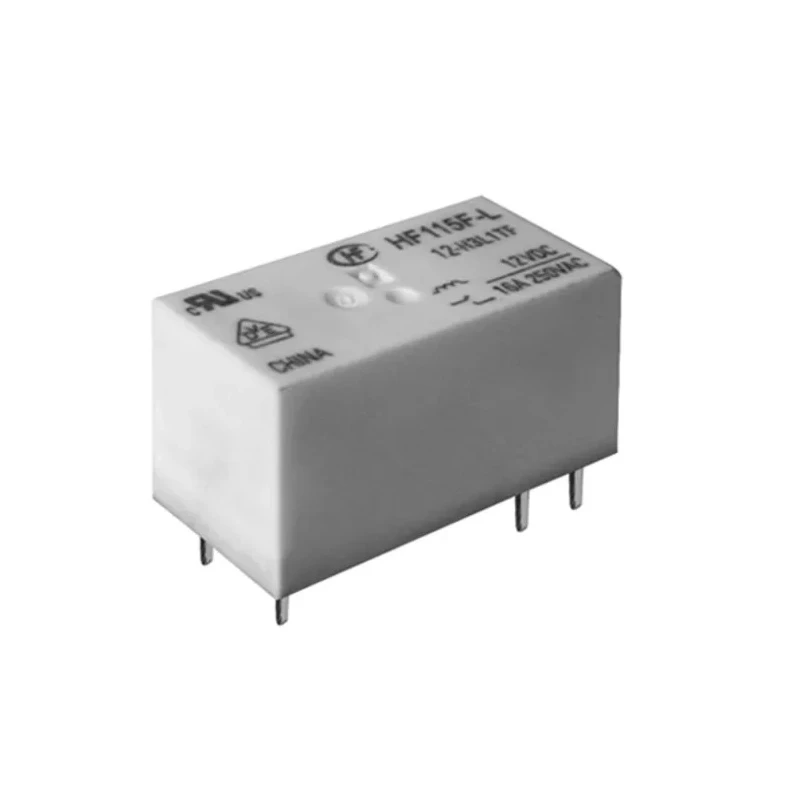

Hongfa Europe GMBH PCB Power Relay 12V dc Coil 20A SPDT HF115F-L/12-Z3L2TF
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 15.7mm |
| Length | 29mm |
| Model | HF115F-L/12-Z3L2TF |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HF115F-L |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 20A |
| Terminal type | PCB Terminal |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 300V dc |
| Switching AC Voltage | 440V ac |
| Coil Power | 600mW |
Key Features
- Provides double coil latching operation with silver alloy contacts.
- Supports switching AC voltage up to 440V and DC voltage up to 300V.
- Operates in a wide temperature range from -40°C to 85°C.
- Compact size with dimensions 29mm x 12.7mm x 15.7mm.
- Coil resistance of 360Ω and coil power consumption of 600mW.
- Low contact resistance of 100mΩ ensures reliable switching.
- Designed for industrial and automotive applications requiring high power switching.
- Environmentally compliant with RoHS certification.
Product Description
Hongfa Europe GMBH HF115F-L/12-Z3L2TF PCB Power Relay is a single-pole double-throw (SPDT) power relay designed for printed circuit board mounting with a 12V DC coil and 20A switching capability. This relay series features double coil latching and silver alloy contact material, ensuring reliable high power switching in a compact form factor of 29mm length, 12.7mm width, and 15.7mm height.
The relay supports switching AC voltages up to 440V and DC voltages up to 300V, making it suitable for controlling both alternating and direct current loads. It operates effectively across a wide temperature range from -40°C to 85°C, providing robust performance in harsh environments.
The coil resistance is rated at 360Ω with coil power consumption of 600mW, and the relay features low contact resistance of 100mΩ, which ensures efficient electrical conductivity and minimal energy loss. The relay is RoHS compliant, reflecting its adherence to environmental safety standards.
Designed for a broad spectrum of industrial uses, this relay is ideal for applications in automotive engines, household appliances, telecommunications equipment, industrial machinery, and medical devices. Its durability rating of up to 10 million switching cycles guarantees long service life in demanding operational settings.
Provides double coil latching operation with silver alloy contacts. Supports switching AC voltage up to 440V and DC voltage up to 300V. Wide operating temperature range from -40°C to 85°C. Compact PCB mounting footprint: 29mm x 12.7mm x 15.7mm.
Coil resistance of 360Ω and power consumption of 600mW. Low contact resistance of 100mΩ for efficient switching. RoHS compliant environmental standards. Durability up to 10 million cycles for extended reliability.
This Hongfa Power Relay is a high-quality component suitable for electrical, industrial automation, and signal conditioning applications. It provides dependable power switching solutions for engineers and system designers. Explore more quality relays and electrical components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 20A.
The coil voltage for this relay is 12V DC.
The dimensions of this relay are 29mm in length, 12.7mm in width, and 15.7mm in height.
It supports switching AC voltage up to 440V and DC voltage up to 300V.
The operating temperature range is from -40°C to 85°C.
This relay features a single-pole double-throw (SPDT) contact configuration.
The coil resistance is rated at 360Ω.
The contact resistance is 100mΩ, ensuring efficient electrical conductivity.
Yes, this relay is RoHS compliant, adhering to environmental safety standards.
The coil power consumption is 600mW.
This model is rated for durability up to 10 million switching cycles.
It is designed for PCB mounting.
