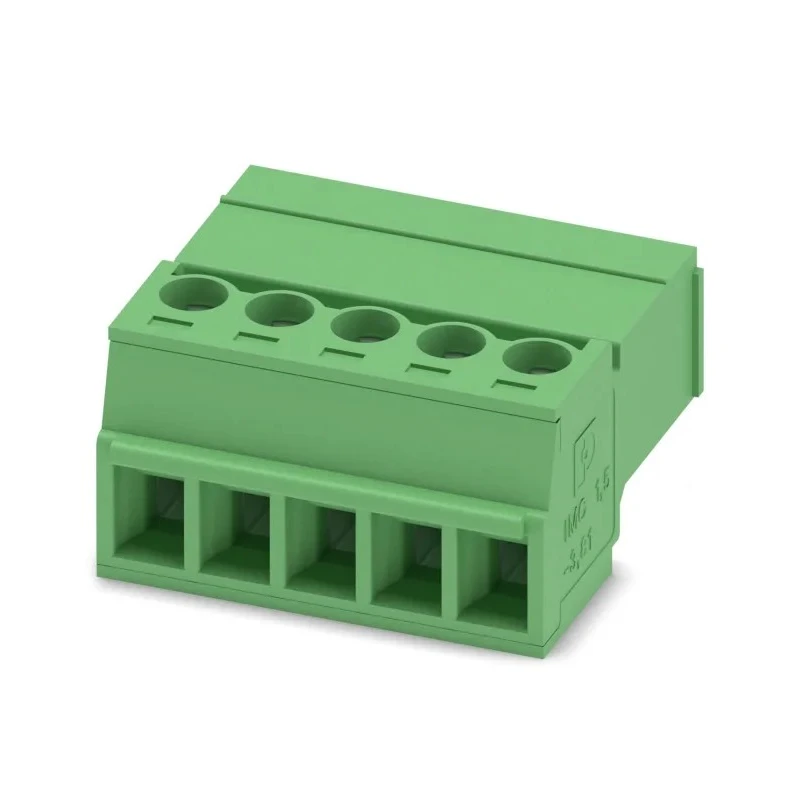

Phoenix Contact IMC 1.5/5-ST-3.81 Series Pluggable Terminal Block, 5-Contact, 3.81 mm Pitch, 1 Row, 320 V, 8 A 1857919

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact IMC 1.5/5-ST-3.81 Series Pluggable Terminal Block, 5-Contact, 3.81 mm Pitch, 1 Row, 320 V, 8 A 1857919

Name: Phoenix Contact IMC 1.5/5-ST-3.81 Series Pluggable Terminal Block, 5-Contact, 3.81 mm Pitch, 1 Row, 320 V, 8 A 1857919
Brand: PHOENIX CONTACT
SKU: 333199
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Poland
Voltage	320V
Brand	Phoenix Contact
Colour	Green
Orientation	Straight
Current	8A
Length	18mm
Model	1857919
Depth	11.1mm
Width	19.84mm
Housing Material	Polyamide
Series	IMC 1.5/5-ST-3.81
Number of Rows	1
Pitch	3.81mm
Standards/Approvals	RoHS
Number of Contacts	5
Connector Gender	Male
Minimum Wire Size mm²	0.14mm²
Maximum Wire Size mm²	1.5mm²
Minimum Wire Size AWG	28AWG
Maximum Wire Size AWG	16AWG
Wire Connection Method	Screw
PCB connector, nominal current	8 A, rated voltage (III/2): 160 V, number of positions: 5, pitch: 3.81 mm, connection method: Screw connection with tension sleeve, colour: green, contact surface: Tin

Key Features

Constructed from durable polyamide housing with green color.
Supports nominal current of 8 A and voltage rating of 320 V.
Screw connection method ensures reliable wire fixation with tension sleeve.
Compatible with wire sizes from 0.14 mm² to 1.5 mm² (28 AWG to 16 AWG).
Features male connector gender with straight orientation.
Compact dimensions with 18 mm length, 19.84 mm width, and 11.1 mm depth.
RoHS compliant and manufactured in Poland.

Product Description

The Phoenix Contact 1857919 is a high-quality pluggable terminal block from the IMC 1.5/5-ST-3.81 series, engineered for industrial and electronic applications requiring secure PCB connections.

With 5 contact points spaced at a 3.81 mm pitch and arranged in a single row, this terminal block is ideal for compact circuit designs requiring efficient and reliable connectivity.

Its polyamide housing provides robust insulation and mechanical stability, colored green for easy identification. The terminal block supports a nominal current of 8 A and a voltage rating up to 320 V, suitable for many electronic and industrial control systems.

The screw connection method utilizes a tension sleeve to ensure secure and stable wire retention. This product supports a range of wire sizes from 0.14 mm² to 1.5 mm² (28 AWG to 16 AWG) accommodating various wiring needs.

Featuring a male connector gender and straight orientation, it simplifies PCB integration and wiring layout. The compact physical dimensions of 18 mm length, 19.84 mm width, and 11.1 mm depth make it suitable for dense PCB assemblies.

This terminal block complies with RoHS standards, confirming it is free of hazardous substances. Manufactured in Poland, it guarantees quality and reliability for industrial, manufacturing, electrical, and electronic automation applications.

Constructed from durable polyamide housing with green color. Supports nominal current of 8 A and voltage rating of 320 V. Screw connection method ensures reliable wire fixation with tension sleeve. Compatible with wire sizes from 0.14 mm² to 1.5 mm² (28 AWG to 16 AWG).

Features male connector gender with straight orientation. Compact dimensions with 18 mm length, 19.84 mm width, and 11.1 mm depth. RoHS compliant and manufactured in Poland.

This pluggable terminal block is widely applicable in industrial automation, electronic control equipment, manufacturing electronics, and telecommunications hardware. It supports efficient wiring and simplifies PCB integration in various electronic assemblies.
