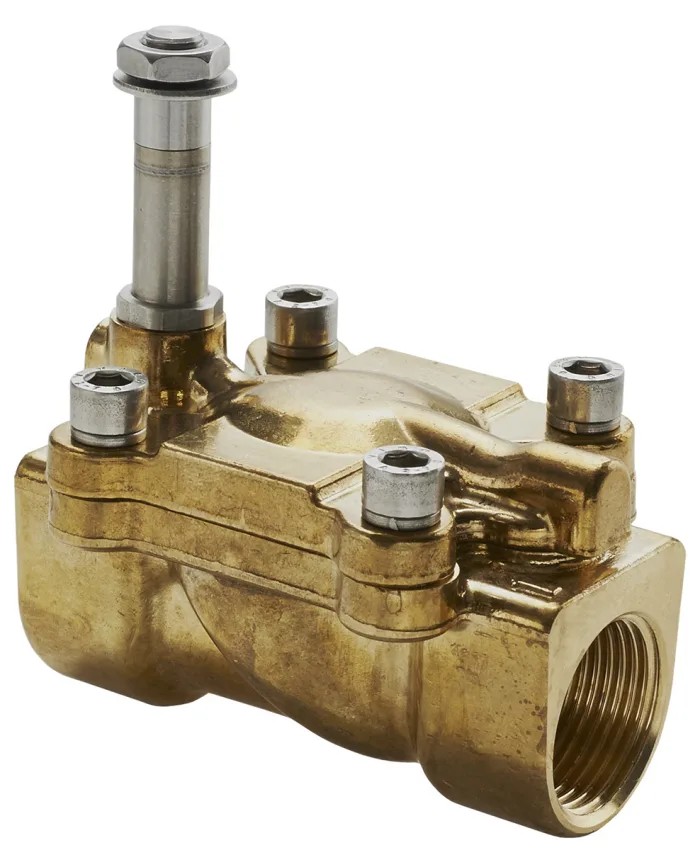

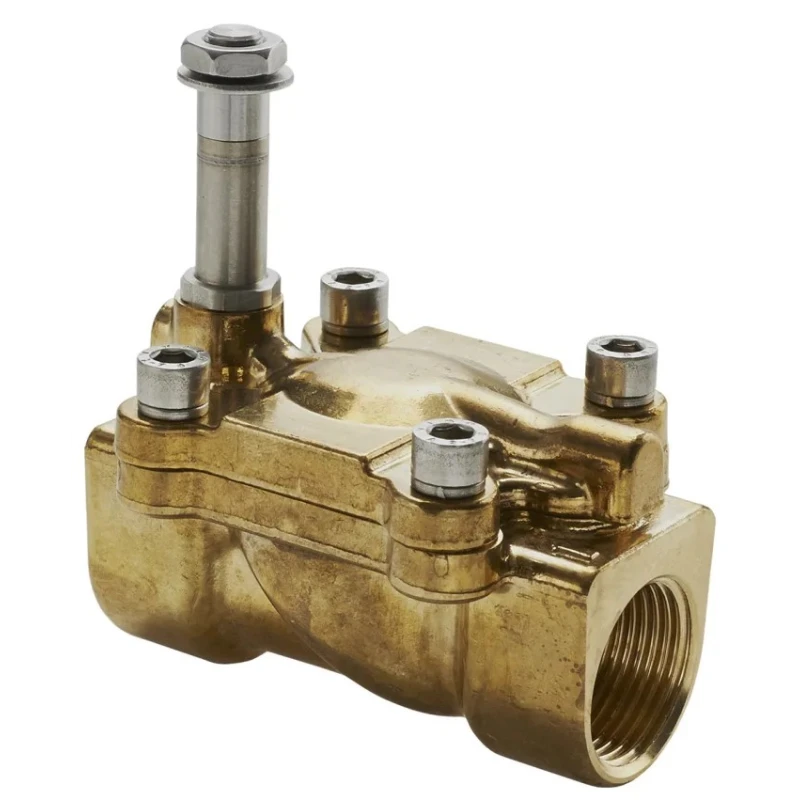

RS PRO Brass Body 2 Port Normally Closed Solenoid Valve, 1/2 in, 11.2 bar Max Pressure, 12mm Orifice Diameter 176-2058
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | RS PRO |
| Body Material | Brass |
| Maximum Operating Pressure | 11.2 bar |
| Model | 176-2058 |
| Number Of Ports | 2 |
| Maximum Operating Temperature | 90°C |
| Minimum Operating Temperature | -10°C |
| Orifice Diameter | 12mm |
| Inlet Port Size | 1/2 in |
| Default Valve Position | NC |
| Inlet Thread Standard | ISO 228 |
| Flow Factor Kv | 3.03m³/h |
| - Seals | NBR, FKM variants available |
| - Core | Stainless steel |
| - Springs | Stainless steel |
| - Maximum allowable pressure | 25 bar |
| - Operating temperature | - 10 °C to + 80 °C |
Key Features
- The valve features a 12 mm orifice diameter allowing a flow factor Kv of 3.03 m³/h.
- It is designed to operate at a maximum pressure of 11.2 bar and withstands up to 25 bar maximum allowable pressure.
- The default valve position is Normally Closed (NC), suitable for controlled flow applications.
- Constructed with brass body, stainless steel core and springs, and seals available in NBR or FKM variants for durability.
- The valve supports operating temperature range from -10°C to 90°C, suitable for varied industrial environments.
- Inlet and outlet threads conform to ISO 228 standard ensuring compatibility with common plumbing fittings.
- Designed and manufactured in Italy with no certifications or hazardous area approvals.
Product Description
RS PRO 176-2058 solenoid valve is a high-quality, normally closed 2 port valve designed for reliable fluid control in industrial and mechanical applications. Featuring a robust brass body and stainless steel core and springs, this valve is engineered to offer long-lasting performance under demanding conditions.
The valve inlet port size of 1/2 inch with ISO 228 thread standard enables easy integration into existing pipeline systems. With a 12 mm orifice diameter, it provides a flow factor Kv of 3.03 m³/h, facilitating efficient fluid passage.
Operating pressure is rated up to 11.2 bar with a maximum allowable pressure up to 25 bar, ensuring safe and effective use in hydraulic and pneumatic pipelines. The valve supports a temperature range from -10 °C to 90 °C, accommodating various process environments.
Seals are available in NBR and FKM variants, offering flexibility depending on fluid compatibility requirements. Its normally closed configuration ensures flow only when actuated. The valve features a 12 mm orifice diameter allowing a flow factor Kv of 3.03 m³/h.
It is designed to operate at a maximum pressure of 11.2 bar and withstands up to 25 bar maximum allowable pressure. The default valve position is Normally Closed (NC), suitable for controlled flow applications. Constructed with brass body, stainless steel core and springs, and seals available in NBR or FKM variants for durability.
The valve supports operating temperature range from -10°C to 90°C, suitable for varied industrial environments. Inlet and outlet threads conform to ISO 228 standard ensuring compatibility with common plumbing fittings. Designed and manufactured in Italy with no certifications or hazardous area approvals.
This Solenoid Valve is ideal for applications in manufacturing, mechanical fluid power, HVAC systems, water treatment plants, and automation systems requiring precise valve control. Its robust build and reliable operation make it suitable for industrial and laboratory use.
Explore more high-quality industrial valves and fittings at EnvMart for your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 11.2 bar, with a maximum allowable pressure of 25 bar.
This valve features a 12 mm orifice diameter, allowing for efficient fluid passage.
It is constructed with a brass body, stainless steel core, and stainless steel springs. Seals are available in NBR or FKM variants.
The flow factor Kv for this solenoid valve is 3.03 m³/h, facilitating effective fluid control.
The valve supports an operating temperature range from -10°C to 90°C, making it suitable for various industrial environments.
The default valve position is Normally Closed (NC), which allows flow only when actuated.
The inlet port size of this model is 1/2 inch, conforming to the ISO 228 thread standard for compatibility with common plumbing fittings.
This valve is suitable for applications in manufacturing, mechanical fluid power, HVAC systems, water treatment plants, and automation systems.
Seals for this solenoid valve are available in NBR and FKM variants, allowing for flexibility based on fluid compatibility requirements.
This model is designed and manufactured in Italy.
The valve's inlet and outlet threads conform to the ISO 228 standard, ensuring compatibility with common plumbing fittings for easy integration.
The maximum allowable pressure of 25 bar indicates the highest pressure the valve can withstand safely, ensuring effective performance in hydraulic and pneumatic applications.
