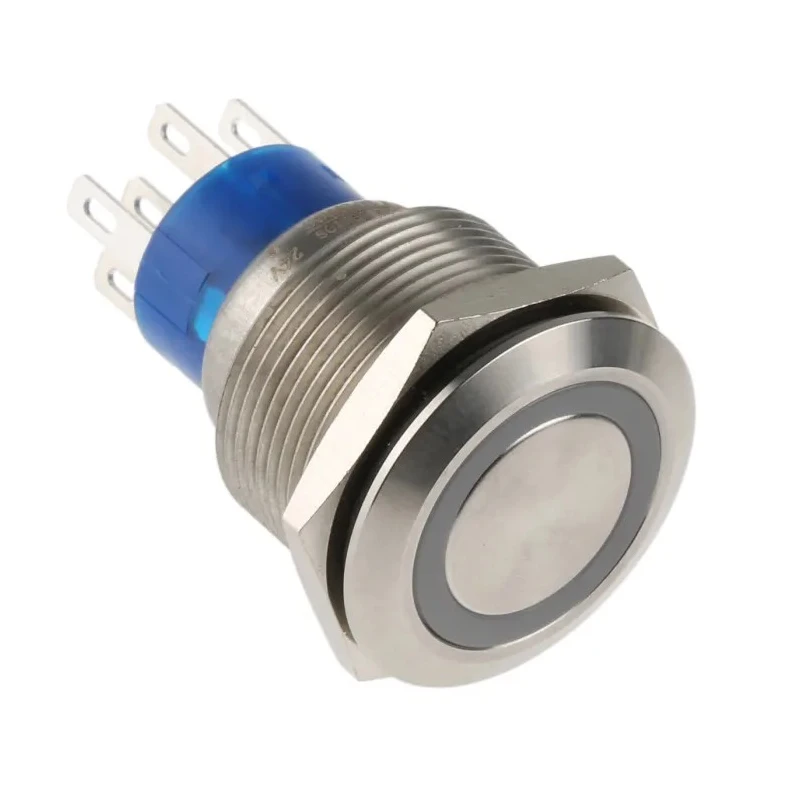

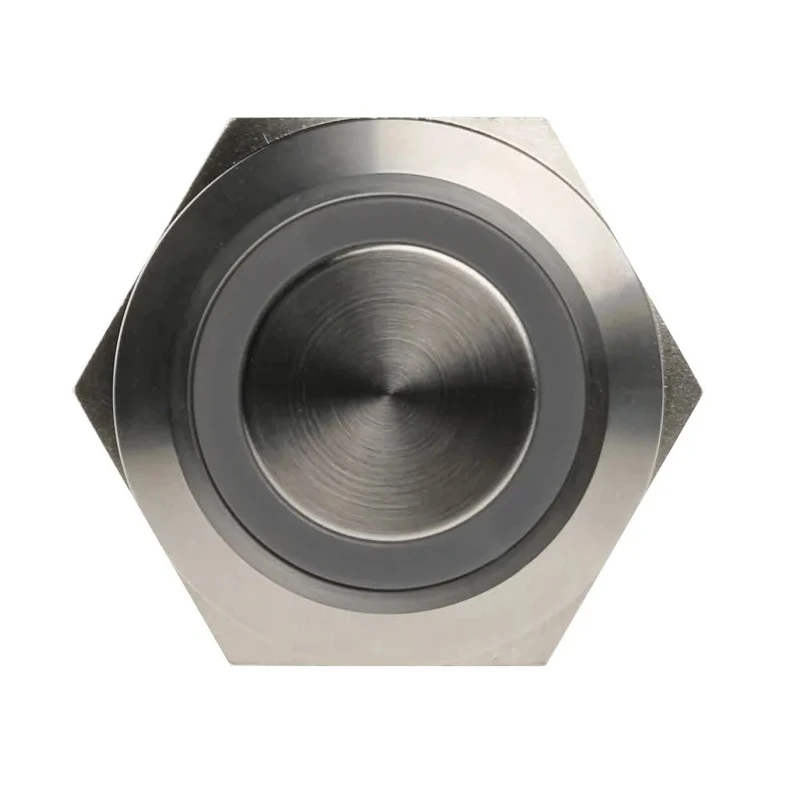

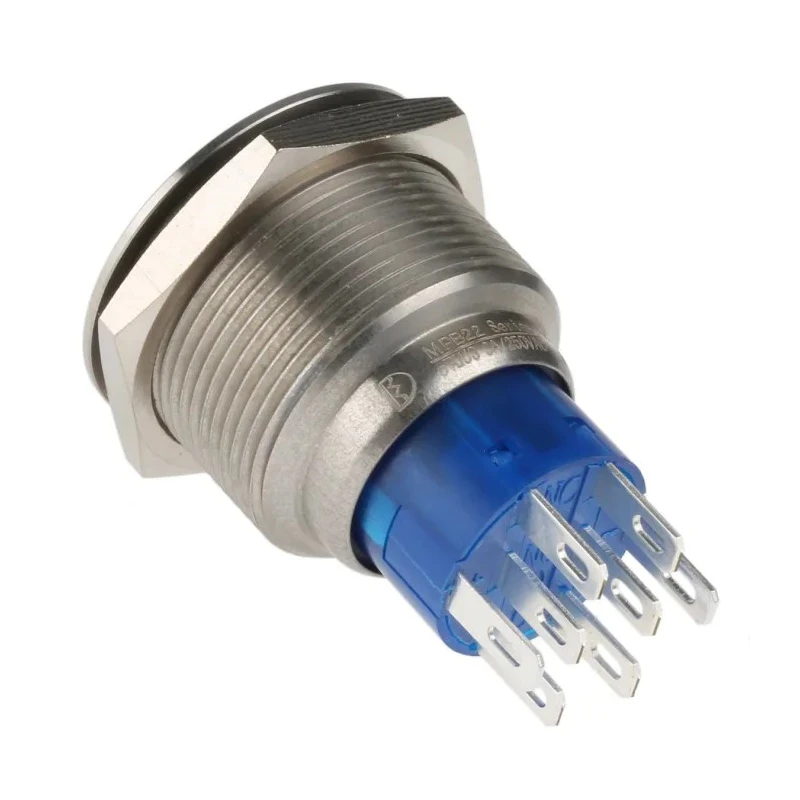

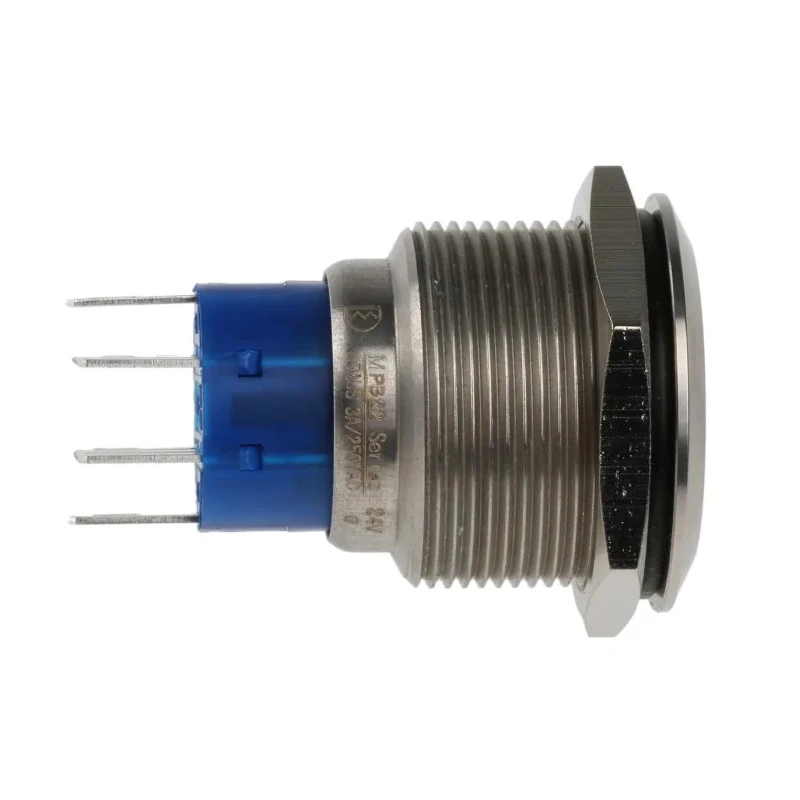

RS PRO Illuminated Momentary Push Button Switch Panel Mount DPDT Green LED IP67 250V AC 175-9248

RS PRO 175-9248 is a high-quality illuminated push button switch featuring momentary operation and a 22.2 mm panel cutout size. It incorporates DPDT contact configuration with a green LED for clear visual feedback and an IP67 ingress protection rating for excellent resistance to dust and water ingress, making it perfect for demanding industrial environments.

Designed with a flat actuator style, this switch offers ease of use and robust anti-vandal metal construction that ensures long life and durability under harsh conditions. It supports contact voltages up to 250V AC/DC and contact currents ranging between 3 and 5 Amps, accommodating a wide range of control circuit applications.

The switch operates safely within a temperature range of -20°C to 70°C and is recognized under multiple international standards including cULus, EC18, EN18, and UL flame retardant ratings UL 94 V-0 and V-2 for enhanced safety. This combination of features makes the RS PRO 175-9248 highly suitable for industrial control instruments, medical devices, security monitoring systems, vehicle peripherals, and audio-visual equipment.

With its vandal resistance and sealing capabilities, the switch is ideal for public-facing panel installations requiring reliable and secure operation. The illuminated green LED provides a clear indication of switch status, contributing to safer operational environments.

RS PRO series switches are known for their corrosion resistance, lightweight metal design, and excellent heat dissipation. The wide range of available sizes and configurations within the MPB Series further enhances adaptability for various installation needs.

Momentary switch operation ensuring quick on/off control. Double Pole Double Throw (DPDT) contact configuration for versatile switching. Green LED illumination for clear status indication. High protection with an IP67 rating ideal for harsh environments.

Flat actuator style for easy operation and durability. Metal construction with anti-vandal qualities suitable for public and industrial use. Rated for 250 V AC/DC contact voltage and 3 to 5 Amp contact current. Suitable for operating temperatures ranging from -20°C to 70°C.

Complies with multiple standards including cULus Recognized, EC18, EN18, UL 94 V-0 and V-2 ratings for safety and reliability. Ideal for industrial control, medical equipment, security, audio-visual, and vehicle peripheral applications.
