STMicroelectronics Evaluation Board Half-Bridge Driver for SPC560P-DISP EVAL-L9960
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | STMicroelectronics |
| Model | EVAL-L9960 |
| For Use With | SPC560P-DISP |
| Standards/Approvals | RoHS |
| Kit Classification | Development Board |
| Featured Device | EVAL-L9960 |
| Kit Name | Evaluation Board |
| Wide supply voltage range (VBatt) | 4V÷28V |
Key Features
- Wide supply voltage range from 4 V to 28 V ensures versatile motor drive applications.
- Current limitation threshold configurable via SPI with four levels from 2.5 A to 8.6 A (typical).
- Integrated free-wheel diodes with smart transistor activation reduce power dissipation during free-wheeling.
- Diagnostic functions accessible through SPI including short circuit protections and over temperature.
- Onboard 5 V, 1.5 A voltage regulator facilitates stable power supply.
- Compatible input signal connector suitable for SPC5 Discovery+ boards and adaptable to other microcontrollers.
- LED indicators for VBatt and enable (EN) signal status monitoring.
- Test points available for monitoring SPI, PWM, EN input signals and output phases.
Product Description

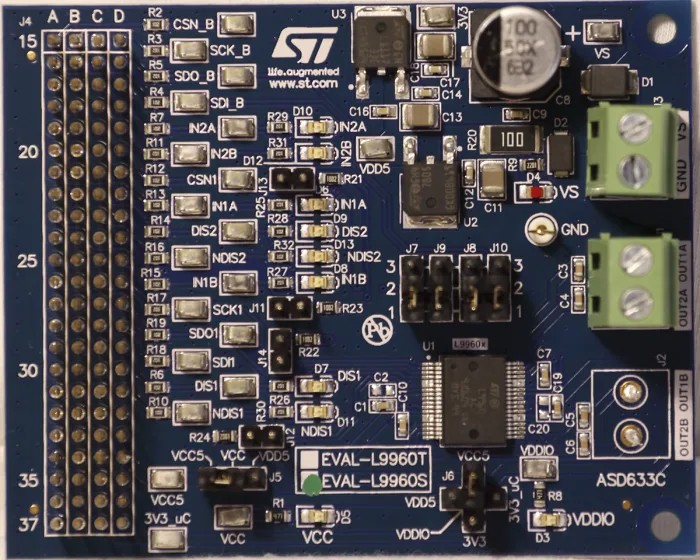

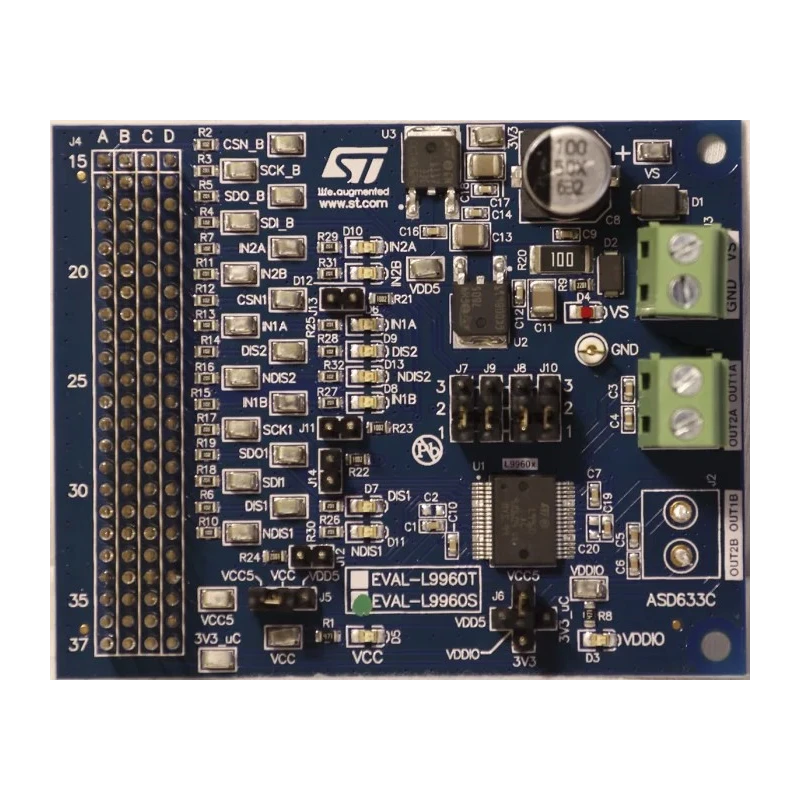

STMicroelectronics EVAL-L9960 is an evaluation board designed to provide an easy and complete environment for the L9960 half-bridge driver IC. This board enables driving DC motors while offering multiple diagnostic features and configurable input options, tailored for use with SPC560P-DISP microcontroller boards.
The board supports a wide supply voltage range from 4 V to 28 V with current limitation settings programmable via SPI, allowing four threshold levels ranging from 2.5 A to 8.6 A typically. Integrated free-wheel diodes and smart transistor parallel switching reduce power losses during free-wheeling phases.
Diagnostic functions include short circuit to battery and ground, overload detection, open load detection, and over temperature protection accessible via SPI interface, ensuring advanced fault monitoring capabilities.
The evaluation board features an onboard 5 V, 1.5 A voltage regulator supplying stable power and dual LEDs to monitor battery voltage and enable signals intuitively. The input connectors are compatible with SPC5 Discovery+ boards and can be easily connected to other microcontroller boards through simple adaptors or wiring.
Test points for crucial input signals such as SPI, PWM, and enable inputs as well as outputs are available for detailed troubleshooting and monitoring. The efficient driving strategy configuration with PWM/Direction pins (IN1/IN2) enables flexible motor control without the need for any external heat sink due to optimized thermal management.
Wide supply voltage range from 4 V to 28 V supports diverse motor driving scenarios. Programmable current limitation for reliable motor protection. Integrated free-wheel diodes minimize power dissipation. Comprehensive diagnostic features accessible via SPI.
Onboard voltage regulator provides stable 5 V output. Compatible with SPC5 Discovery+ development boards. LED indicators for real-time system status monitoring. Available test points enhance signal monitoring and debugging.
Flexible driving configurations with no heat sink requirement.
This Evaluation Board is ideal for use in industrial, automotive, and robotics development environments requiring precise half-bridge driver testing and motor control integration with embedded microcontrollers.
Explore more power management and motor driver development tools to complement your engineering projects on EnvMart.
