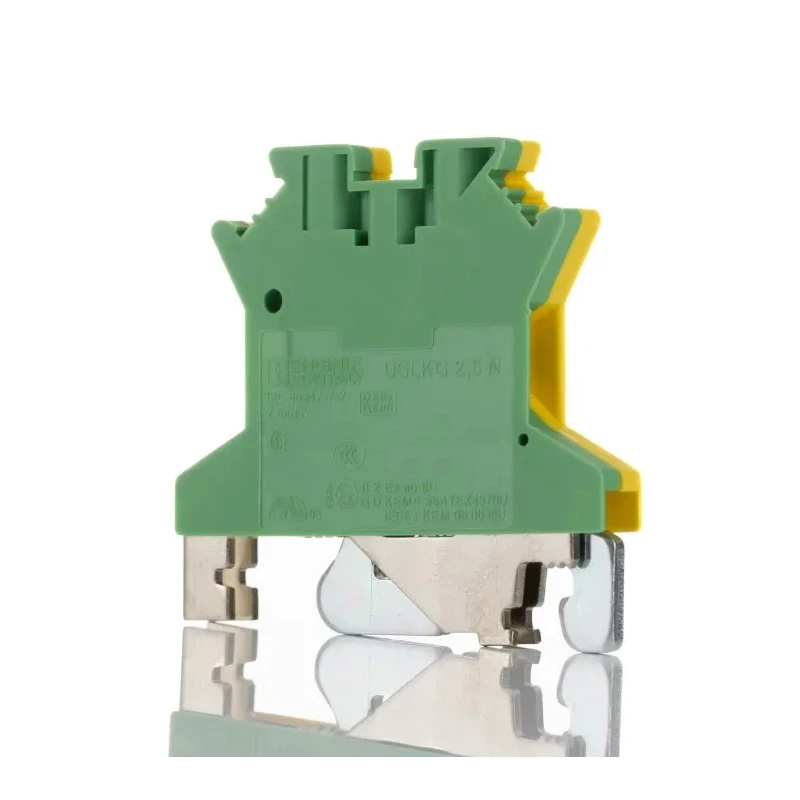

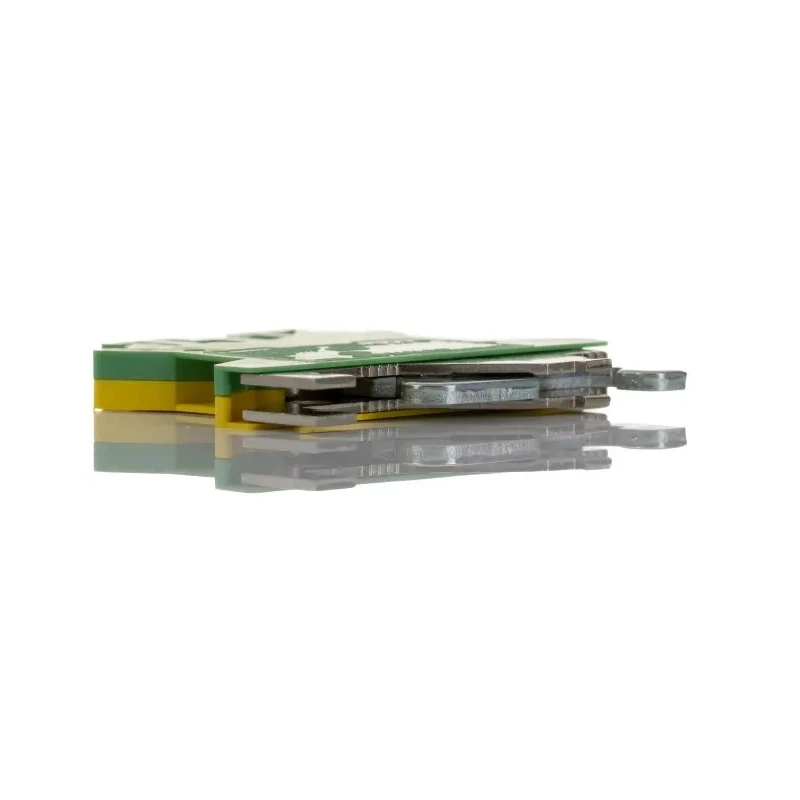

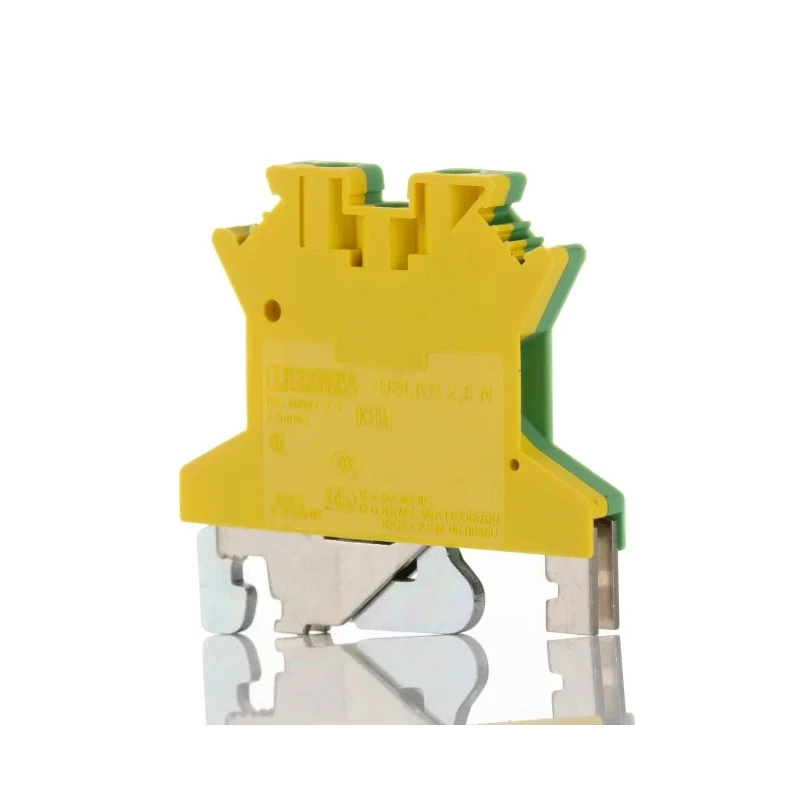

Phoenix Contact 2-Way DIN Rail Earth Modular Terminal Block 750V 24A Screw Termination Polyamide Housing 0441119

This terminal block supports wire cross-sectional areas from 0.2 mm² to 4 mm² (12 AWG to 24 AWG), ensuring versatility across various wiring requirements. The robust polyamide housing provides mechanical protection and electrical insulation, rated for continuous operation between -60°C and 130°C.

Designed for DIN rail mounting, this modular earth terminal block features two connection ways and screw type terminations to provide secure and maintenance-free wiring. The product is color-coded green and yellow, meeting international color standards for earth connections, reducing installation errors.

With a voltage rating of 750V and the ability to carry up to 24 Amperes current, this terminal block ensures electrical safety and performance. It is also capable of withstanding surge voltages of up to 8 kV, protecting downstream equipment from transient power spikes.

The terminal block meets fire safety standards with UL 94 V-0 flammability rating and complies with IEC/EN 60079-7 standards for equipment used in explosive atmospheres. The ATEX certification further confirms its suitability for use in hazardous areas, such as power stations, control centers, and rail vehicles.

Dimensions are compact at 42.5 mm length, 5.2 mm width, and 49.5 mm height, enabling efficient space utilization on DIN rails. The screw termination design minimizes the need for wire retightening, ensuring long-term electrical connection reliability.

Constructed with durable polyamide housing for high mechanical strength and insulation. Color-coded green and yellow to international standards for easy identification of earth terminals. Supports wire sizes from 0.2 mm² to 4 mm² and corresponding AWG sizes 12 and 24.

Rated for continuous operation over a temperature range of -60°C to 130°C. Voltage rating of 750V and current rating of 24A for robust electrical performance. Complies with IEC/EN 60079-7 electrical equipment standard for explosive atmospheres.

Meets UL 94 V-0 flammability standard for fire safety. Certified to ATEX standard for safe use in hazardous areas. Compact size and screw termination for secure wiring and space-saving installation.

This terminal block is ideal for use in industrial automation, power distribution, control centers, rail vehicles, and other commercial electrical installations requiring reliable grounding solutions. Enhance your electrical assemblies with Phoenix Contact quality and trusted safety standards.
