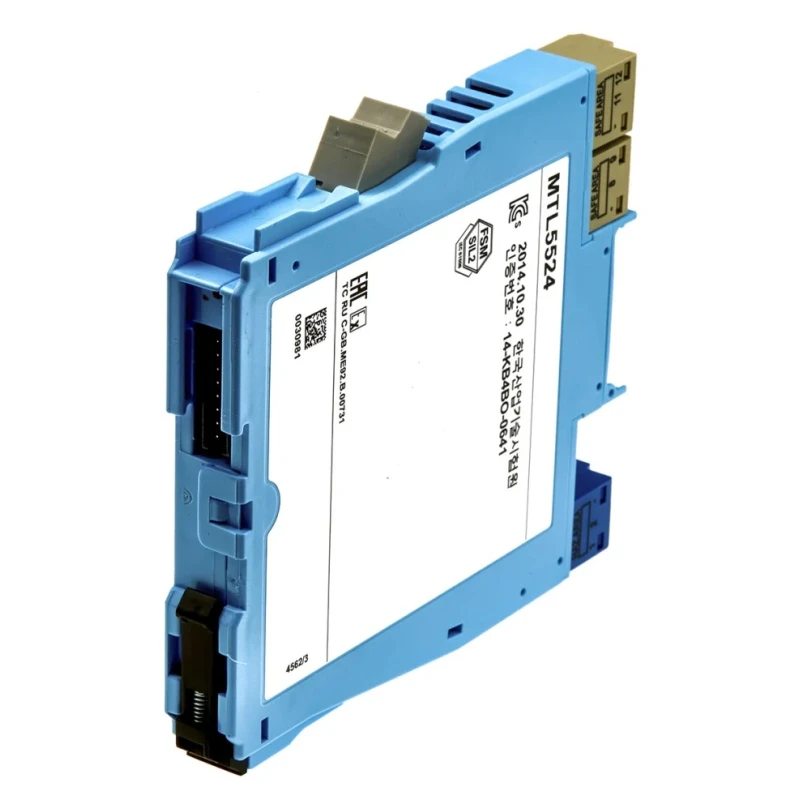

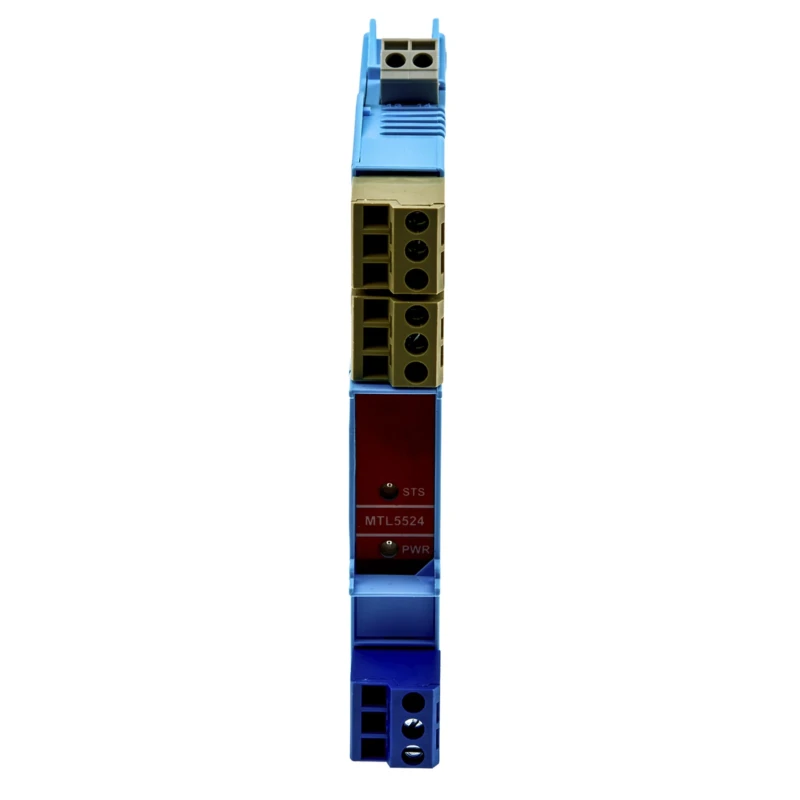

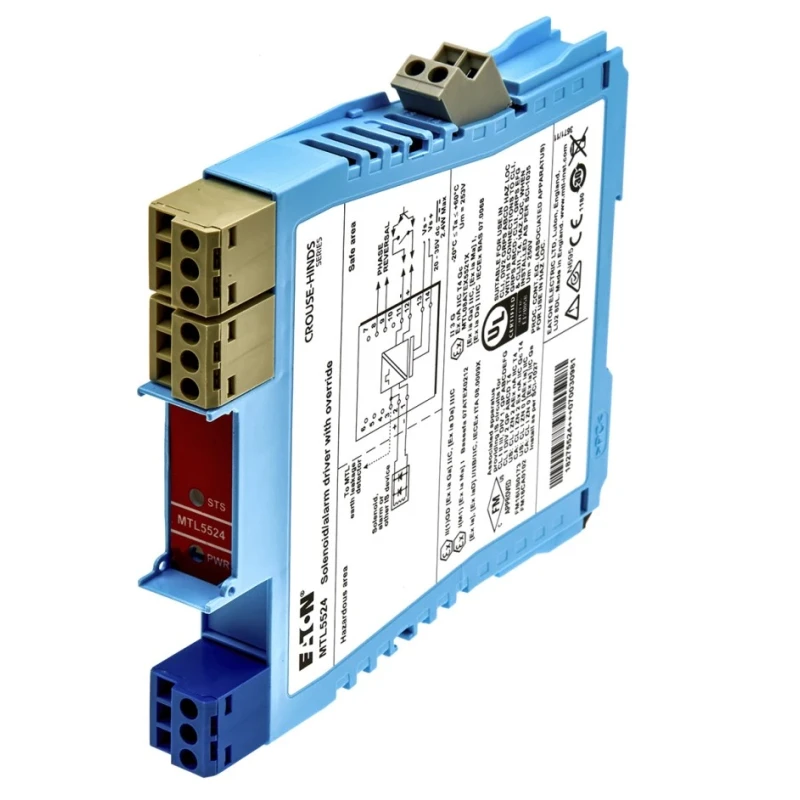

Eaton MTL Series Signal Conditioner Voltage Input Voltage Output 20V DC 35V DC Supply Zone 0 IIC Group A Div 1 MTL5524

Eaton MTL5524 is a signal conditioner from the MTL Series designed for voltage input and voltage output applications. It operates with a supply voltage of 20V DC or 35V DC and is certified for use in hazardous locations Zone 0, IIC, Group A, Div 1, ensuring safe and reliable signal isolation and conditioning for critical industrial processes.

This unit offers a compact, modular design optimized for DIN rail mounting, which allows high packing density in control panels and easy installation in various industrial settings. It features 3-port isolation which maintains signal integrity and offers protection against faults.

The input voltage range is 1.4 to 4.5 V DC, with an output range of 13.6 to 24 V, enabling flexible interfacing with low power devices such as solenoids, alarms, and LEDs that are certified as intrinsically safe or classified as non-energy storing simple apparatus.

It is engineered to operate in a broad environmental temperature range from -20°C up to 60°C. The device employs wire type terminals for secure and reliable electrical connections.

The MTL5524 is compliant with the IEC 61508:2010 functional safety standards and offers SIL2 and SIL3 certification making it suitable for critical applications in chemical, petrochemical, mining, oil and gas industries, recycling plants, and metal processing.

It is specifically designed to enable on/off devices in hazardous areas to be controlled by volt-free contacts or logic signals from safe areas. This signal conditioner provides an effective interface between hazardous and safe zones.

The product features 3-port isolation for enhanced safety. Compact modular design supports DIN rail mounting for convenient installation. Suitable for hazardous zones including Zone 0, IIC, Group A, and Division 1 locations.

Supports input signal voltage from 1.4 to 4.5 V DC and output voltage from 13.6 to 24 V. Operates reliably at temperatures ranging from -20°C to 60°C. Certified under IEC 61508:2010 with SIL2 and SIL3 compliance. Ideal for controlling solenoids, alarms, LEDs, and other low power devices certified for intrinsic safety.

Compatible with MTL5000 modular systems for scalable applications. Designed for demanding industrial sectors such as chemical, petrochemical, mining and oil and gas industries.
