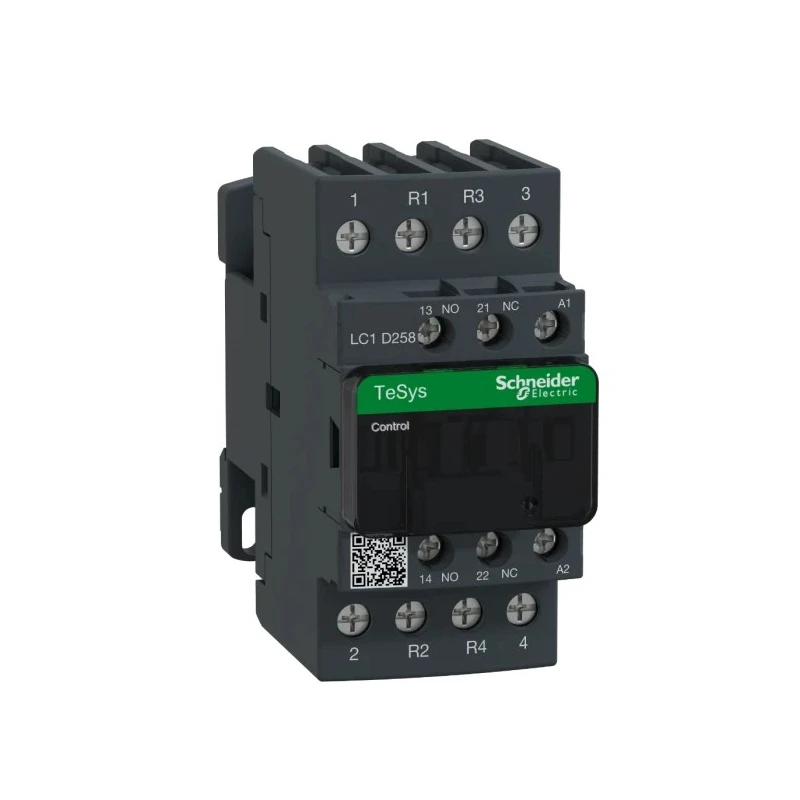

Schneider Electric LC1D Contactor, 24V AC Coil, 4-Pole, 25 A, 2.5 W Power Rating, 2 NO/2 NC Contacts, 690V AC LC1D258B7

Schneider Electric LC1D258B7 Contactor is a high-quality control device designed for motor starter applications and resistive load control in industrial automation, manufacturing, and electrical distribution systems. Featuring a 24V AC coil and 4-pole configuration, it supports a maximum contact current of 25A and a contact voltage up to 690V AC, ensuring robust performance in demanding environments.

This contactor supports 2 normally open and 2 normally closed contacts, enabling flexible circuit control in complex electrical systems. The power rating of 2.5W at 24V AC coil voltage allows efficient energy use. It is designed for DIN rail mounting and uses screw terminals which are IP20 finger-safe, providing safety and ease of installation.

The auxiliary contacts have a 1 NO/1 NC configuration, adding functionality for control feedback and signaling. It operates reliably within a temperature range from -5°C to a maximum of 60°C, suitable for a wide range of industrial settings. The device offers high resistance to shock and vibration, improving operational reliability in harsh conditions.

Schneider Electric LC1D258B7 contactor is compliant with international certifications including UL, CCC, CSA, EAC, IEC, and RoHS, guaranteeing safe and environmentally responsible product standards. Its design includes features such as the Better World claim for disassembly, supporting sustainability goals.

Typical applications include motor control for squirrel cage motors, lifts, escalators, conveyors, compressors, pumps, mixers, and various air conditioning units. The AC1 and AC3 utilization categories indicate suitability for resistive loads and motor control with running breaking respectively.

Available accessories include auxiliary contact blocks, time delay blocks, surge suppressors, and interface modules that enhance functionality and adaptability in automation control systems.

Choose Schneider Electric LC1D258B7 for reliable, durable, and efficient contactor solutions in electrical automation and motor control applications. Explore more products in the Electronics & Electricals category under Automation & Control Gear to find complementary control devices and accessories.

This Contactor features a 2 NO/2 NC normal state contact configuration for flexible circuit control. It operates at a contact voltage rating of 690V AC and power rating of 2.5W at 24V AC coil. Designed for DIN rail mounting with screw terminals supporting IP20 finger-safe connections.

The device supports auxiliary contacts with 1 NO/1 NC configuration for additional control options. Operates reliably within a temperature range of -5°C to 60°C for industrial environments. It offers excellent shock and vibration resistance for enhanced durability in automation systems.

Compliance with multiple international standards including UL, CCC, CSA, EAC, IEC, and RoHS ensures safety and quality.
