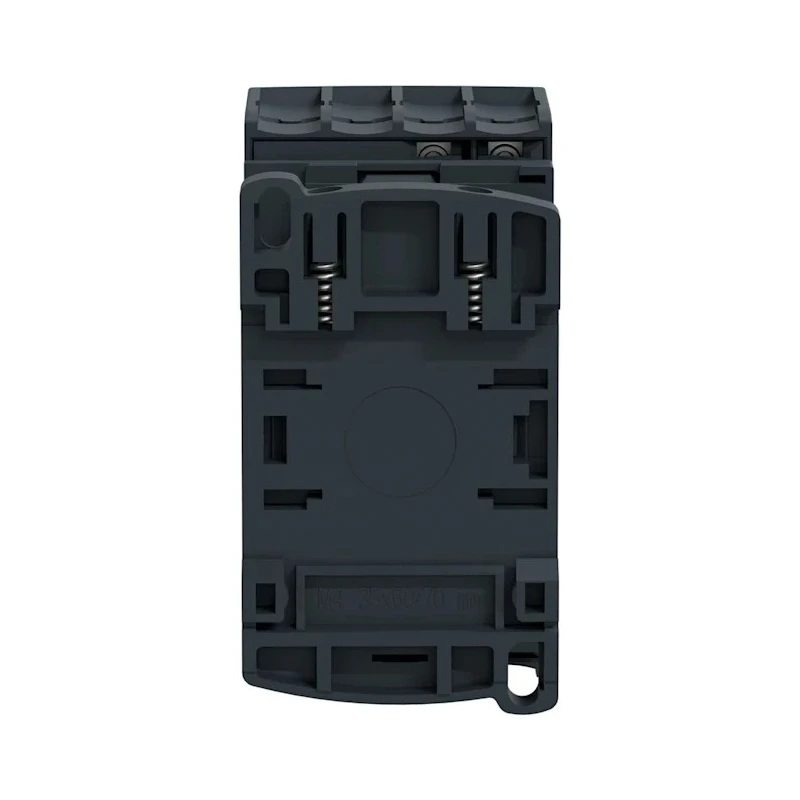

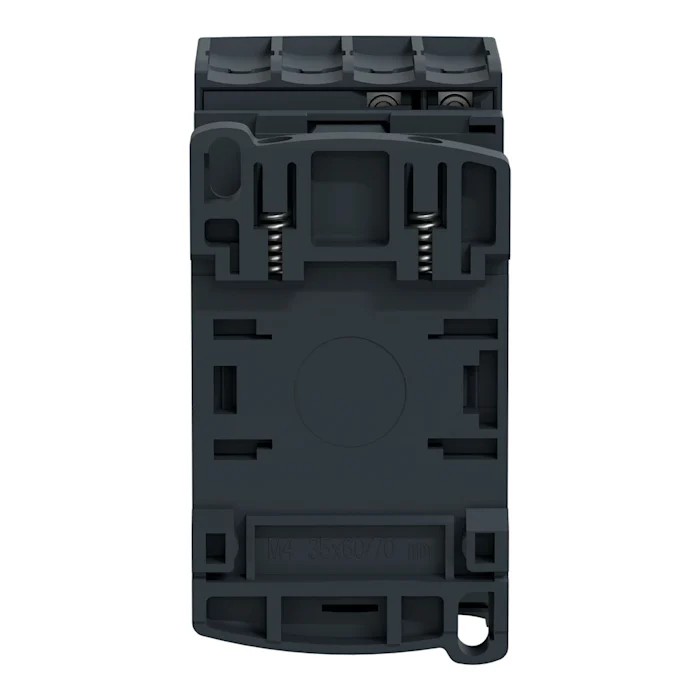

Schneider Electric LC1D TeSys D Contactor, 4-Pole 9A AC-3 Full Load, 110V AC Coil, 1.56W Power, 2 NO/2 NC, 690V AC LC1D098F7
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 85mm |
| Model | LC1D098F7 |
| Depth | 90mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 1.56W |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 110V ac |
| Normal State Configuration | 2 NO/2 NC |
| Better World Claim | Designed for Disassembly |
| Contact Current | 9A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 20A |
| Control Circuit Voltage Uc | 110V ac |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 4 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- The contactor features screw type terminals with IP20 finger-safe protection.
- It supports motor control and resistive loads with robust switching capabilities.
- The operating temperature range is from -5°C up to 60°C rated for industrial environments.
- Mountable on DIN rail with compact dimensions of 85mm length, 45mm width, and 90mm depth.
- Complies with international standards including CCC, CSA, EAC, IEC, RoHS, and UL.
- Includes 2 auxiliary contacts configured as 1 NO and 1 NC for added control functions.
- Coil power consumption is 1.56 Watts at 110V AC, ensuring energy efficiency.
- Designed with a linear translation mechanism offering double break pole functionality.
Product Description
Schneider Electric LC1D098F7 is a high-quality, 4-pole contactor featuring a 110V AC coil and a contact current rating of 9A under AC-3 full load conditions. It operates with a low coil power consumption of 1.56 Watts, making it suitable for various motor control and resistive load applications in industrial and commercial environments.
This TeSys D series contactor is engineered with built-in auxiliary contacts that enhance switching capabilities. The screw connection terminals offer IP20 finger-safe protection, supporting safety standards while simplifying installation. Whether mounted on a DIN rail or panel with screws, this contactor integrates easily into existing control systems.
The unit is designed for effective performance even under temperature extremes from -5°C to 60°C, ensuring reliability in diverse industrial settings. Its compact form factor (85mm length, 45mm width, 90mm depth) optimizes panel space. Industrial certifications include CCC, CSA, EAC, IEC, RoHS, and UL, guaranteeing adherence to international quality standards.
Auxiliary contacts are configured as one normally open and one normally closed contact (1 NO/1 NC) to facilitate additional control operations. The linear translation mechanism used in the TeSys D range assures double breaking of poles, important for safe switching under load.
Typical industrial uses include motor starters for squirrel cage motors, conveyor systems, lifts, escalators, compressors, pumps, and HVAC units requiring reliable contact switching under AC-3 utilisation category.
The product is designed and manufactured in Indonesia, reflecting Schneider Electric’s commitment to quality and sustainability. The Contactor has 4 poles with 2 normally open and 2 normally closed contacts. Coil operates at 110V AC with low power draw of 1.56 Watts.
Supports switching voltages up to 690V AC and contact currents of 9A (AC-3 rating). Mounts easily on DIN rails or panels using screw terminals rated for IP20 finger-safe protection. Auxiliary contacts provide 1 NO and 1 NC contacts for additional control circuit integration.
Compliance with international standards ensures suitability for industrial, manufacturing, and automation applications. Explore more Schneider Electric automation and control gear products on EnvMart to find complementary solutions for your industrial electrical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum contact current rating for this model is 9A under AC-3 full load conditions.
The coil voltage for this contactor is 110V AC.
It operates within a temperature range of -5°C to 60°C, suitable for industrial environments.
This unit has compact dimensions of 85mm in length, 45mm in width, and 90mm in depth.
This contactor features 4 poles, configured as 2 normally open (NO) and 2 normally closed (NC) contacts.
It is equipped with screw type terminals that provide IP20 finger-safe protection.
The product complies with several international standards, including CCC, CSA, EAC, IEC, RoHS, and UL.
This contactor is designed for motor control and resistive load applications.
The coil power consumption is 1.56 Watts at 110V AC, ensuring energy efficiency.
Yes, it is mountable on DIN rails, facilitating easy installation.
The auxiliary contacts are configured as 1 normally open (NO) and 1 normally closed (NC).
This model supports switching voltages up to 690V AC.
