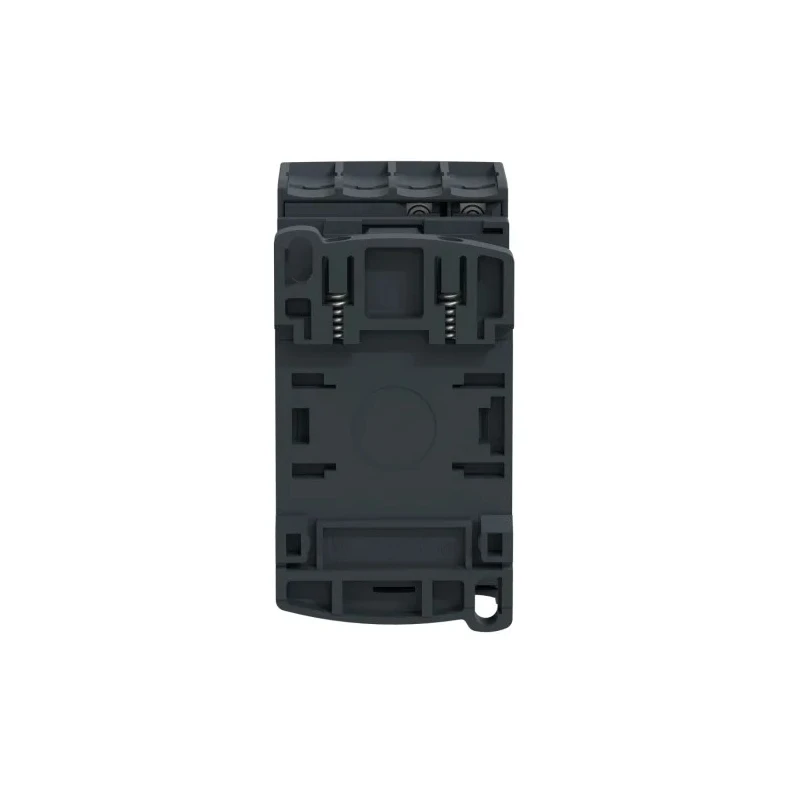

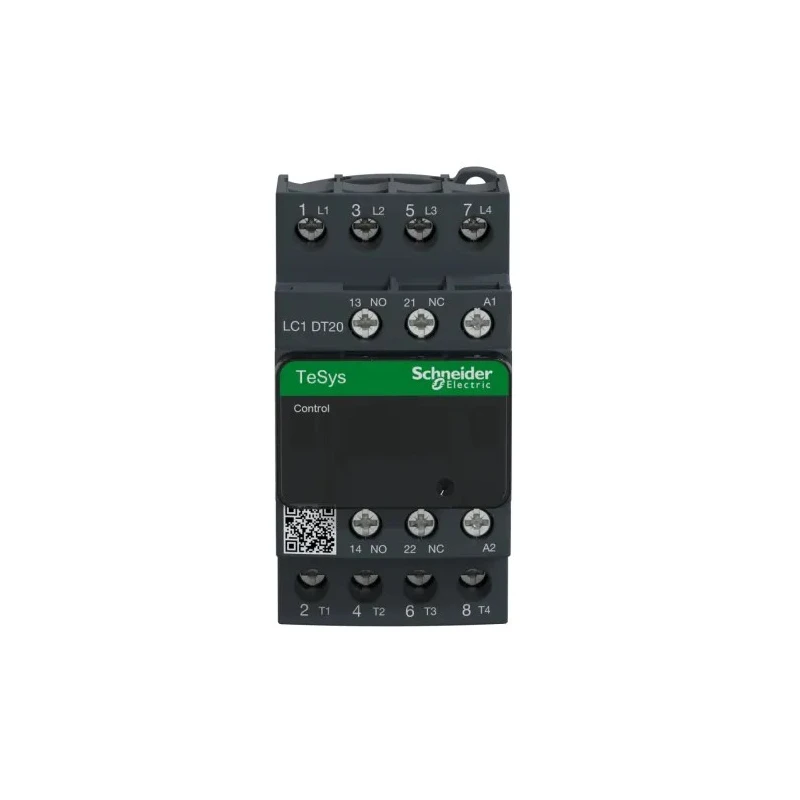

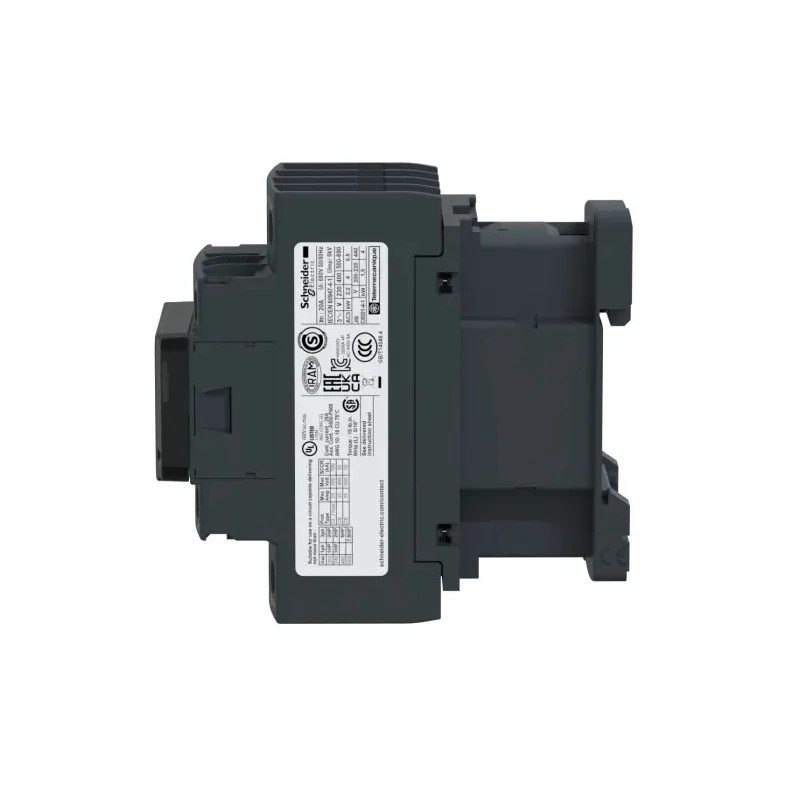

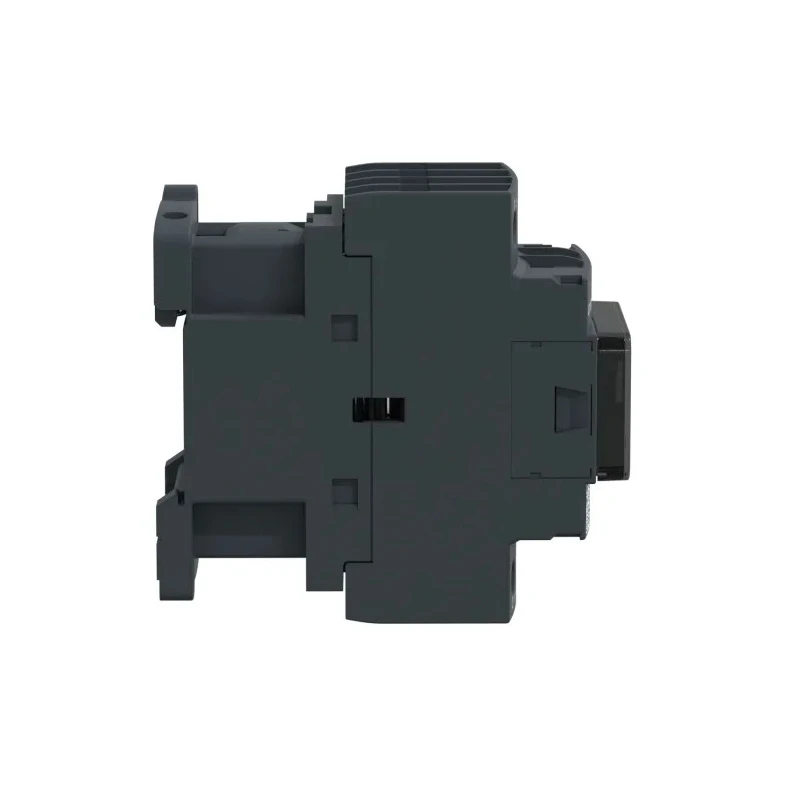

Schneider Electric LC1D Series 4-Pole Contactor 24V AC Coil Voltage, 20A Current, 1.56W Power Rating
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Function | Reversing |
| Length | 45mm |
| Model | LC1D |
| Depth | 92mm |
| Width | 85mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 1.56W |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | UL, CCC, CSA, EAC, IEC, RoHS |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V ac |
| Normal State Configuration | 4 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 20A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 20A |
| Control Circuit Voltage Uc | 24V ac |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 4 |
Key Features
- Designed for a 20A contact current rating to handle motors and resistive loads.
- Operates at a coil voltage of 24V AC, ideal for low-voltage control systems.
- Features a reversing function for flexible motor direction control.
- Includes 2 auxiliary contacts configured as 1 NO and 1 NC for additional control options.
- Supports up to 690V AC contact voltage and power rating of 1.56W at 24V AC coil.
- Equipped with screw-type terminals ensuring secure electrical connection.
- Designed to operate reliably from -5°C to +60°C ambient temperature range.
- Complies with UL, CCC, CSA, EAC, IEC, and RoHS standards for quality and safety.
Product Description
Schneider Electric LC1DT20B7 is a high-quality 4-pole contactor engineered for industrial automation and motor control applications. Featuring a 24V AC coil voltage and a rated contact current of 20A, this compact device supports robust electrical load switching within resistive load environments. Its power rating is 1.56W for the coil, enabling efficient energy use in control circuits.
The reversing function allows convenient alteration of motor rotation direction, making it suitable for automated processes demanding bidirectional operations. Equipped with screw-type terminals, this contactor ensures reliable and secure wiring connections, simplifying installation and maintenance.
Physical dimensions of 45mm (height), 85mm (width), and 92mm (depth) facilitate smooth integration on DIN rails, optimizing control cabinet space. Designed to withstand operational temperatures from -5°C to +60°C, it is suitable for diverse industrial environments subjected to temperature variations.
The Contactor features two auxiliary contacts configured as one normally open (NO) and one normally closed (NC), offering enhanced control circuit flexibility. It conforms to major industry standards including UL, CCC, CSA, EAC, IEC, and RoHS, ensuring compliance and long-term reliability.
Manufactured in Indonesia, this Better World product emphasizes sustainability through design for disassembly, supporting environmentally responsible industrial practices. It is ideal for applications such as motor control, automation systems, and resistive load switching in manufacturing, HVAC, and electrical distribution sectors.
Designed for 24V AC coil voltage and 20A contact current. Reversing function for bidirectional motor control. Two auxiliary contacts for added versatility. Compact DIN rail mount design with screw terminals. Certified to international safety and performance standards.
Explore the Schneider Electric product range at EnvMart for reliable automation and control solutions tailored to rigorous industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of the LC1D contactor is 24V AC.
This model has a maximum contact current rating of 20A.
The power rating is 1.56W at 24V AC coil voltage.
It operates reliably within an ambient temperature range of -5°C to +60°C.
The LC1D contactor features 4 poles.
It is equipped with screw-type terminals for secure electrical connections.
This model includes 2 auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC).
The contact voltage rating is up to 690V AC.
This contactor is designed for DIN rail mounting.
It complies with UL, CCC, CSA, EAC, IEC, and RoHS standards.
It is suitable for motor control, automation systems, and resistive load switching in various industrial environments.
The dimensions are 45mm in height, 85mm in width, and 92mm in depth.
