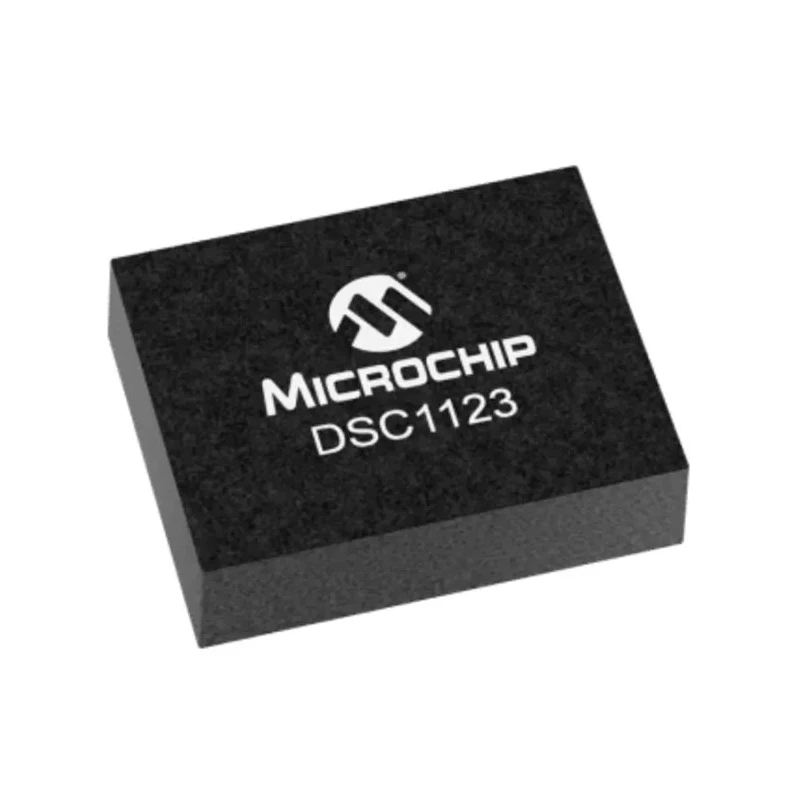

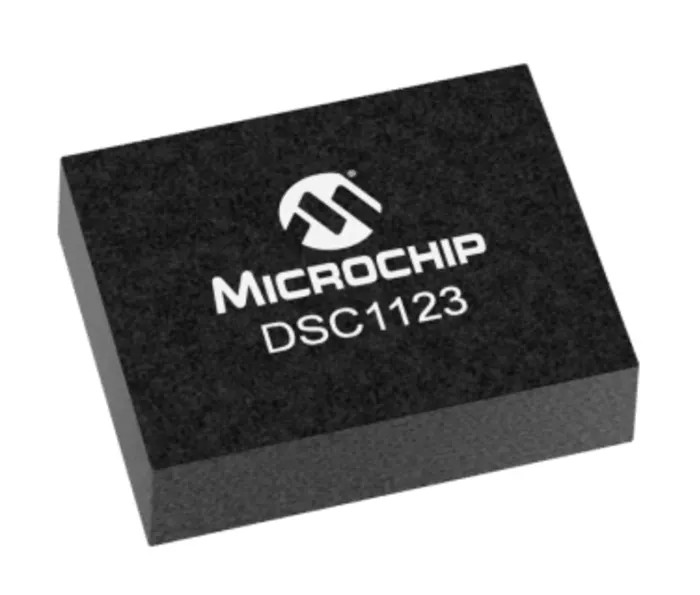

Microchip 150 MHz High Stability MEMS Oscillator, 6-Pin VDFN Surface Mount, ±25 ppm DSC1123CI2-150.0000

Free Delivery in India | Lowest Global Shipping Charges

Microchip 150 MHz High Stability MEMS Oscillator, 6-Pin VDFN Surface Mount, ±25 ppm DSC1123CI2-150.0000

Name: Microchip 150 MHz High Stability MEMS Oscillator, 6-Pin VDFN Surface Mount, ±25 ppm DSC1123CI2-150.0000
Brand: Microchip
SKU: 332110
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	0.85mm
Length	3.2mm
Model	DSC1123CI2-150.0000
Packaging	Tube
Width	2.5mm
Mount Type	Surface
Series	DSC1123
Maximum Operating Temperature	85°C
Package Type	VDFN
Minimum Operating Temperature	-40°C
Maximum Output Frequency	150MHz
Standards/Approvals	ISO, RoHS, EN
Pin Count	6
Output Level	LVDS
Maximum Operating Supply Voltage	4V
Minimum Operating Supply Voltage	-0.3V
High Stability	±10 ppm, ±25 ppm, ±50 ppm
High Supply Noise Rejection	- 50 dBc

Key Features

Operates at a maximum output frequency of 150 MHz.
Features ±25 ppm frequency stability for precision timing.
Surface mount device with a compact 6-pin VDFN package type.
Operates within temperature range from -40°C to 85°C.
Supports operating supply voltage up to 4 V.
Provides LVDS output level suitable for high-speed digital circuits.
Compact dimensions measuring 3.2 mm by 2.5 mm by 0.85 mm in height.
Complies with ISO, RoHS, and EN standards ensuring quality and environmental compliance.

Product Description

Microchip DSC1123CI2-150.0000 is a high-performance 150 MHz MEMS oscillator designed for precision clock generation in electronics components. Packaged as a 6-pin VDFN surface mount device, this oscillator provides excellent frequency stability of ±25 ppm, making it suitable for demanding industrial, communications, storage, and networking applications.

Utilizing silicon MEMS technology, the DSC1123CI2-150.0000 series eliminates the need for quartz or SAW resonators, resulting in enhanced reliability and reduced design complexity. The oscillator delivers low RMS phase jitter and stable operation over a wide supply voltage range with a maximum operating voltage of 4 volts and supports a broad temperature range from -40°C to 85°C.

This device outputs a LVDS (Low Voltage Differential Signaling) signal compatible with high-speed digital circuits. Its compact size at 3.2 mm length, 2.5 mm width, and 0.85 mm height allows for integration in space-constrained PCB layouts.

The oscillator is packaged in tubes for handling efficiency and meets stringent ISO, RoHS, and EN standards ensuring environmental compliance and industrial quality. High stability MEMS oscillator with ±25 ppm frequency tolerance.

Compact 6-pin VDFN surface mount package. Wide operating temperature range of -40°C to 85°C. Low supply voltage operation up to 4 V. LVDS output level for high-speed data transmission. Eliminates quartz or SAW resonators for improved reliability.

Suitable for communications, networking, and storage applications. Compliant with industry standards including ISO, RoHS, and EN.

This high stability MEMS oscillator from Microchip provides a reliable clock source for industrial, telecommunications, and electronic manufacturing sectors. For more products in MEMS oscillators, browse EnvMart's extensive electronics components catalog.
