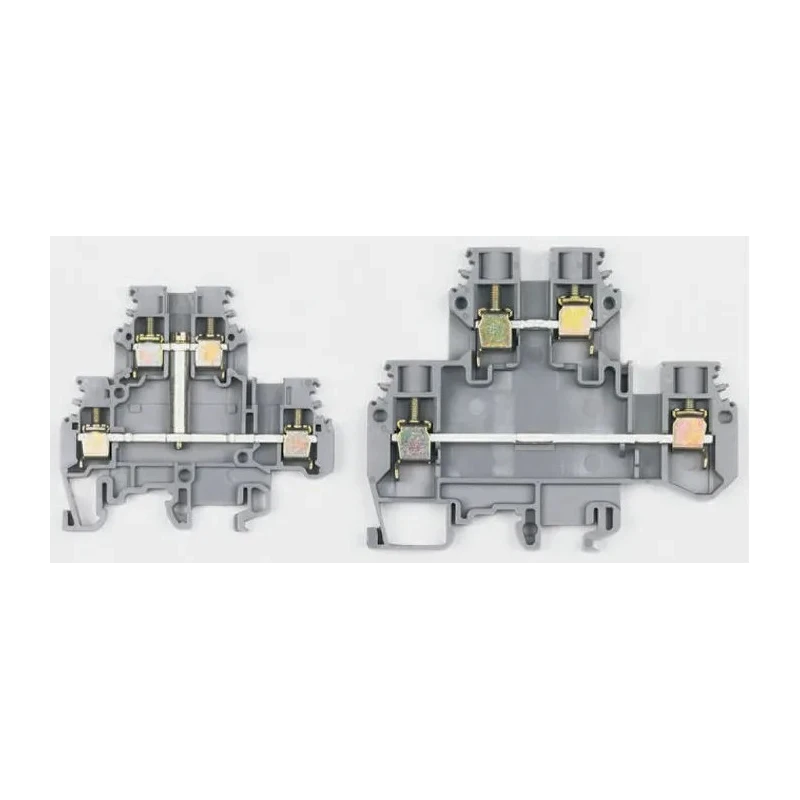

Entrelec SNA Series Double Level Terminal Block Grey, 6mm² Cable Capacity, 800V AC, 41A Current, 2-Level 1SNA115498R1700

Free Delivery in India | Lowest Global Shipping Charges

Entrelec SNA Series Double Level Terminal Block Grey, 6mm² Cable Capacity, 800V AC, 41A Current, 2-Level 1SNA115498R1700

Name: Entrelec SNA Series Double Level Terminal Block Grey, 6mm² Cable Capacity, 800V AC, 41A Current, 2-Level 1SNA115498R1700
Brand: Entrelec
SKU: 330683
Price: 20.22 USD
Availability: InStock



Category DIN Rail Terminal Block Brand Entrelec Condition New

Specifications

Country of Origin	France
Voltage	800V ac
Brand	Entrelec
Colour	Grey
Model	1SNA115498R1700
Series	SNA
Termination Type	Screw
Maximum Operating Temperature	40°C
Number of Levels	2
Minimum Operating Temperature	-5°C
Pitch	8mm
Standards/Approvals	CSA, CE, cUL, EAC, EU Directive 2002/95/EC
Minimum Wire Size AWG	18AWG
Maximum Wire Size AWG	8AWG
Cable CSA	6mm²
Terminal Block Current	41A
Two versions available	one with vertical interconnection and partition on the lower deck, one version with just partition

Key Features

The terminal block supports a maximum current of 41A with screw termination for secure connections.
It is constructed for 2-level easy stacking with vertical connection options.
Rated operating temperature ranges from -5°C to 40°C for reliable performance.
Suitable for mounting on symmetrical and asymmetrical DIN rails with an 8mm pitch.
Compliant with CSA, CE, cUL, EAC, and EU Directive 2002/95/EC standards.
Grey flame-resistant polyamide material ensures electrical safety and durability.
Captive hardened terminal screws reduce risk of burring and ease installation.
Optimized cable entry and clamp design improves cable carrying capacity and installation speed.

Product Description

Entrelec 1SNA115498R1700 is a high-quality SNA Series double level terminal block designed with robust grey polyamide 6.6 housing. It supports cable cross sections up to 6mm² and operates safely at voltages up to 800V AC. The terminal block is rated for a maximum current of 41A and features secure screw termination for dependable electrical connections in demanding industrial applications.

Its design supports two levels allowing compact stacking and efficient wiring organization. The product offers flexibility with two versions: one with vertical interconnection and partition on the lower deck, and another with just a partition, to meet varying installation requirements.

Engineered to withstand operating temperatures from -5°C to +40°C, this terminal block is suitable for harsh environments. The captive hardened terminal screws are designed to prevent burring, enhancing reliability and ease of maintenance. Its cable entry and clamp design provide enhanced ease of installation and increase cable carrying capacity.

Mountable on both symmetrical and asymmetrical DIN rails (8mm pitch), this terminal block is part of the 5000 Universal Range ensuring compatibility with various rail profiles. It complies with international standards including CSA, CE, cUL, EAC, and the EU Directive 2002/95/EC for RoHS compliance.

The terminal block has a flame-resistant polyamide 6.6 body for increased safety. The product is manufactured in France with strict quality control. Two versions are available to suit different wiring layouts and connection needs.

Its versatile design supports industrial automation, electrical distribution, and control panel applications. The screw termination type ensures a secure and reliable electrical connection.

This Entrelec SNA Series terminal block is ideal for use in industrial, manufacturing, commercial electrical installations, automation systems, and control panels. Its reliable electrical characteristics and robust design also make it suitable for laboratory and HVAC system wiring applications.
