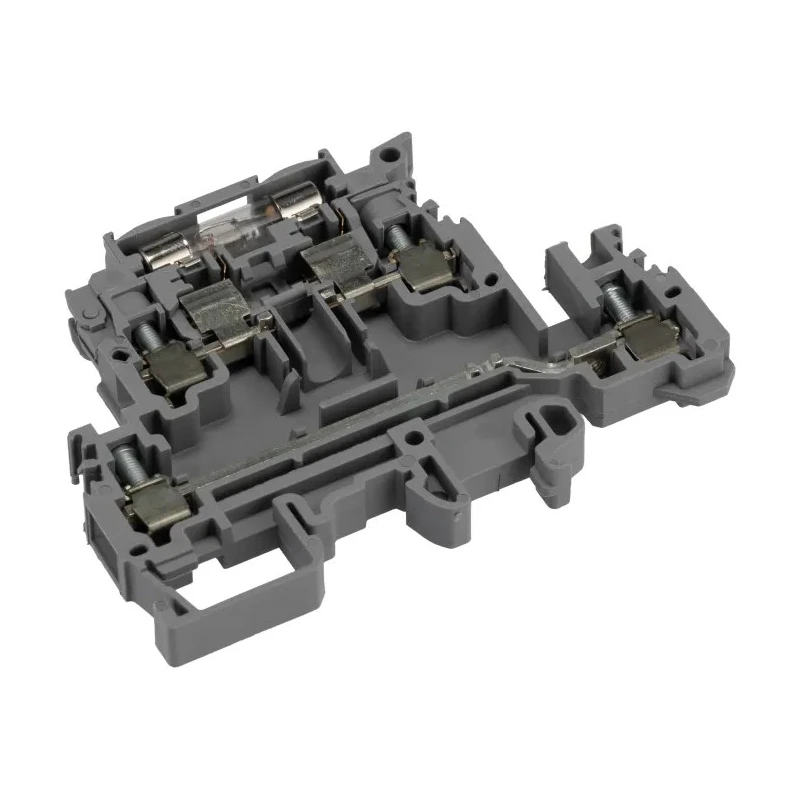

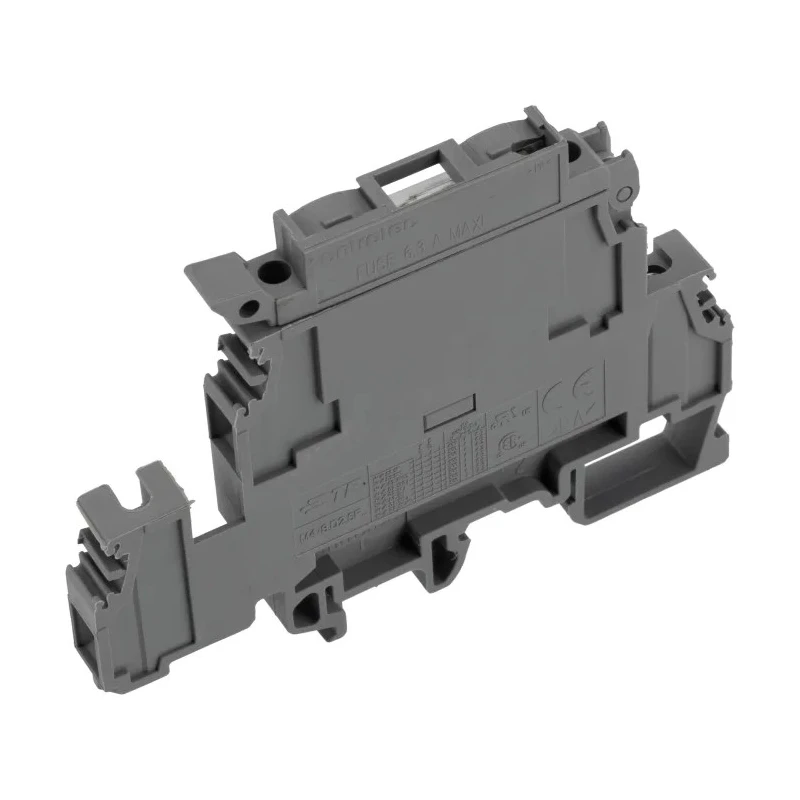

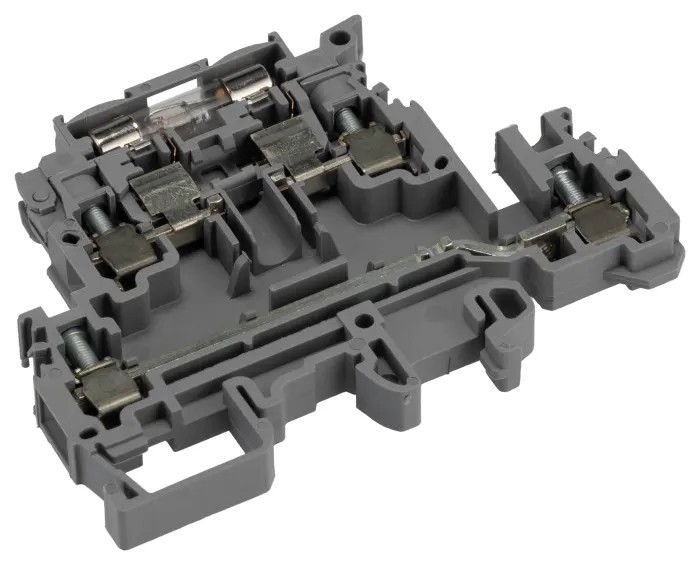

Entrelec M Series Fused DIN Rail Terminal Grey, 4mm² to 6mm², 2-Level Fused Screw Terminal Block 500V 6.3A 1SNA115646R2200

Free Delivery in India | Lowest Global Shipping Charges

Entrelec M Series Fused DIN Rail Terminal Grey, 4mm² to 6mm², 2-Level Fused Screw Terminal Block 500V 6.3A 1SNA115646R2200

Name: Entrelec M Series Fused DIN Rail Terminal Grey, 4mm² to 6mm², 2-Level Fused Screw Terminal Block 500V 6.3A 1SNA115646R2200
Brand: Entrelec
SKU: 330680
Price: 20.22 USD
Availability: InStock



Category DIN Rail Terminal Block Brand Entrelec Condition New

Specifications

Country of Origin	India
Voltage	500V
Brand	Entrelec
Colour	Grey
Model	1SNA115646R2200
Series	M
Termination Type	Screw
Maximum Operating Temperature	110°C
Number of Levels	2
Minimum Operating Temperature	-55°C
Pitch	8mm
Standards/Approvals	CE, CSA, cUL, EAC, EU Directive 2002/95/EC
Minimum Wire Size AWG	14AWG
Maximum Wire Size AWG	12AWG
Cable CSA	4, 6mm²
Terminal Block Current	6.3A

Key Features

Constructed with tough flame-resistant polyamide 6.6 material ensuring durability.
Features a 2-level fused design suitable for 4mm² to 6mm² cable cross sections.
Rated for 500 V voltage and 6.3 A terminal block current capacity.
Terminated with screw type for secure and easy cable connection.
Operating temperature range from -55°C to 110°C for versatile application environments.
The lever-action carrier accepts 20x5mm and 25x5mm fuses for universal compatibility.
M Series design mounts on both asymmetric rail 'G' profile and Top hat profile rails.
Compliant with CE, CSA, cUL, EAC, and EU Directive 2002/95/EC certifications.

Product Description

Entrelec 1SNA115646R2200 M Series Fused DIN Rail Terminal is a high-quality two-level fused terminal block designed for reliable power distribution and circuit protection in industrial and commercial electrical installations. It supports cable cross-sectional areas of 4mm² to 6mm² and operates safely up to 500 V and 6.3 A current rating. The grey terminal block is manufactured from flame-resistant polyamide 6.6, offering durability and long-term resistance under a broad temperature range from -55°C to 110°C.

This model features screw-type terminations for robust and secure cable connections. Its lever-action carrier design accommodates 20x5mm and 25x5mm fuses, facilitating versatile and easy fuse replacement. The M Series terminal block can be mounted on both asymmetric rail 'G' profile as well as standard Top hat profile rails, providing flexible installation options.

With approvals including CE, CSA, cUL, EAC, and compliance with EU Directive 2002/95/EC, this fused DIN rail terminal meets stringent international quality and safety standards. The captive terminal screws have hardened heads to prevent burring and maintain connection integrity. Cable entry and clamp design enable straightforward installation, offering improved voltage and cable carrying capacity for demanding electrical applications.

Constructed with flame-resistant polyamide 6.6 for high durability. Two-level fuse design with compatibility for multiple fuse sizes. 500 V voltage rating and 6.3 A current carrying capacity for reliable operation. Screw type termination for secure electrical connections.

Operating temperature range from -55°C to 110°C supports diverse environments. Suitable for mounting on asymmetric rail 'G' and Top hat profile rails. Compliant with multiple international certifications and directives. Easy cable entry and clamp design enhance installation efficiency.

Designed for industrial, electrical enclosures, power distribution, and manufacturing applications.

This Entrelec M Series fused DIN rail terminal is ideal for use in electrical panels and assemblies, offering dependable fuse protection and secure cable terminations. Browse more quality electrical components and DIN Rail Terminal Blocks at EnvMart to enhance your installations with trusted brands like Entrelec.
