Entrelec SNA Series Double Level Terminal Block Grey, 6mm², 2-Level, Screw 1SNA115501R1200

Free Delivery in India | Lowest Global Shipping Charges

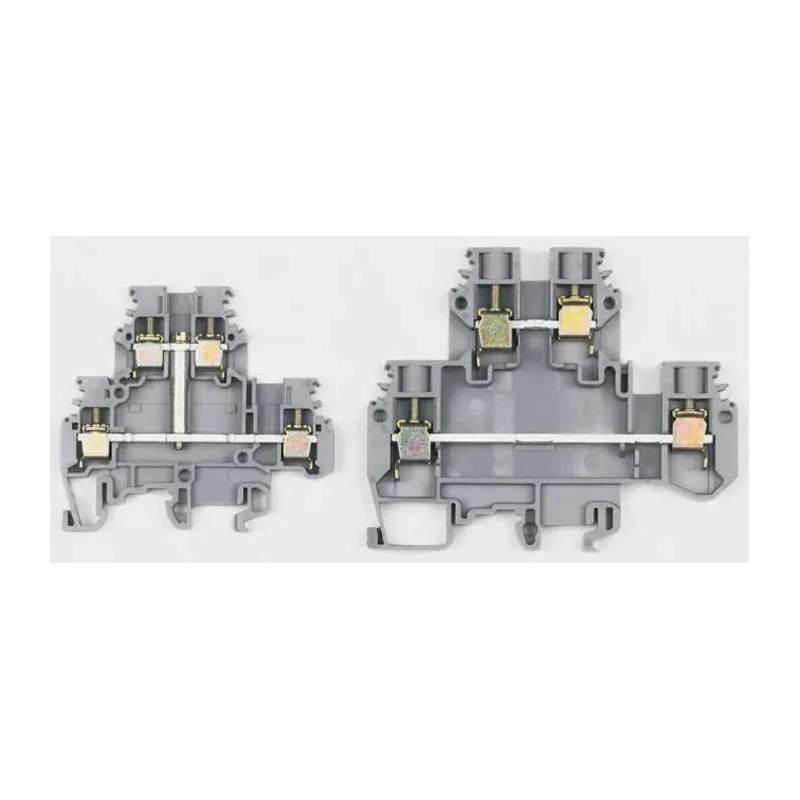

Entrelec SNA Series Double Level Terminal Block Grey, 6mm², 2-Level, Screw 1SNA115501R1200

Name: Entrelec SNA Series Double Level Terminal Block Grey, 6mm², 2-Level, Screw 1SNA115501R1200
Brand: Entrelec
SKU: 330674
Price: 20.22 USD
Availability: InStock



Category DIN Rail Terminal Block Brand Entrelec Condition New

Specifications

Country of Origin	India
Voltage	800V ac
Brand	Entrelec
Colour	Grey
Model	1SNA115501R1200
Series	SNA
Termination Type	Screw
Maximum Operating Temperature	40°C
Number of Levels	2
Minimum Operating Temperature	-5°C
Pitch	8mm
Standards/Approvals	EU Directive 2002/95/EC, EAC, cUL, CE, CSA
Minimum Wire Size AWG	18AWG
Maximum Wire Size AWG	8AWG
Cable CSA	6mm²
Terminal Block Current	41A
Two versions available	one with vertical interconnection and partition on the lower deck, one version with just partition

Key Features

Double level, grey terminal block suitable for DIN rail mounting.
Supports wire sizes from 18 AWG to 8 AWG for versatile connectivity.
Operates safely up to 800V AC with a current rating of 41A.
Constructed from flame-resistant polyamide 6.6 with temperature range -5°C to 40°C.
Features screw-type termination with hardened screw heads for reliable contact.
Compatible with both symmetrical and asymmetrical DIN rails for installation flexibility.
Complies with EU Directive 2002/95/EC and standards including EAC, cUL, CE, CSA.

Product Description

Entrelec 1SNA115501R1200 is a SNA Series Double Level Terminal Block designed for robust electrical connection applications in industrial and electrical automation environments. This grey terminal block supports cable cross-section area up to 6mm² and wire sizes ranging between 18 AWG and 8 AWG, ensuring versatility for various wiring needs.

Operating at a maximum voltage of 800V AC and supporting a terminal block current of 41A, it provides reliable and safe power distribution for industrial control panels, machinery, and automation systems. This product is moulded from tough, flame-resistant polyamide 6.6, allowing operation in ambient temperatures from -5°C to 40°C without degradation.

The double level configuration with screw termination features hardened screw heads to prevent burring, delivering secure and durable connections. It is compatible with symmetrical and asymmetrical DIN rails, including 'G' profile and top hat profile rails, adding installation flexibility.

Two versions are available: one version includes vertical interconnection and partition on the lower deck, while the other includes just the partition. Both versions maintain electrical isolation and orderly wiring arrangement within control cabinets. Its adherence to standards such as EU Directive 2002/95/EC, EAC, cUL, CE, and CSA ensures conformity to international safety and environmental regulations.

This terminal block is ideal for applications in industrial automation, electrical distribution, manufacturing equipment, and HVAC control systems where reliable terminal connections are critical.

Double level, grey terminal block suitable for DIN rail mounting. Supports wire sizes from 18 AWG to 8 AWG for versatile connectivity. Operates safely up to 800V AC with a current rating of 41A. Constructed from flame-resistant polyamide 6.6 with temperature range -5°C to 40°C.

Features screw-type termination with hardened screw heads for reliable contact. Compatible with both symmetrical and asymmetrical DIN rails for installation flexibility. Includes two versions: one with vertical interconnection and partition on lower deck, one with just partition.

Complies with EU Directive 2002/95/EC and standards including EAC, cUL, CE, CSA. Explore the extensive range of DIN Rail Terminal Blocks and other electrical automation components on EnvMart for premium industrial applications.
