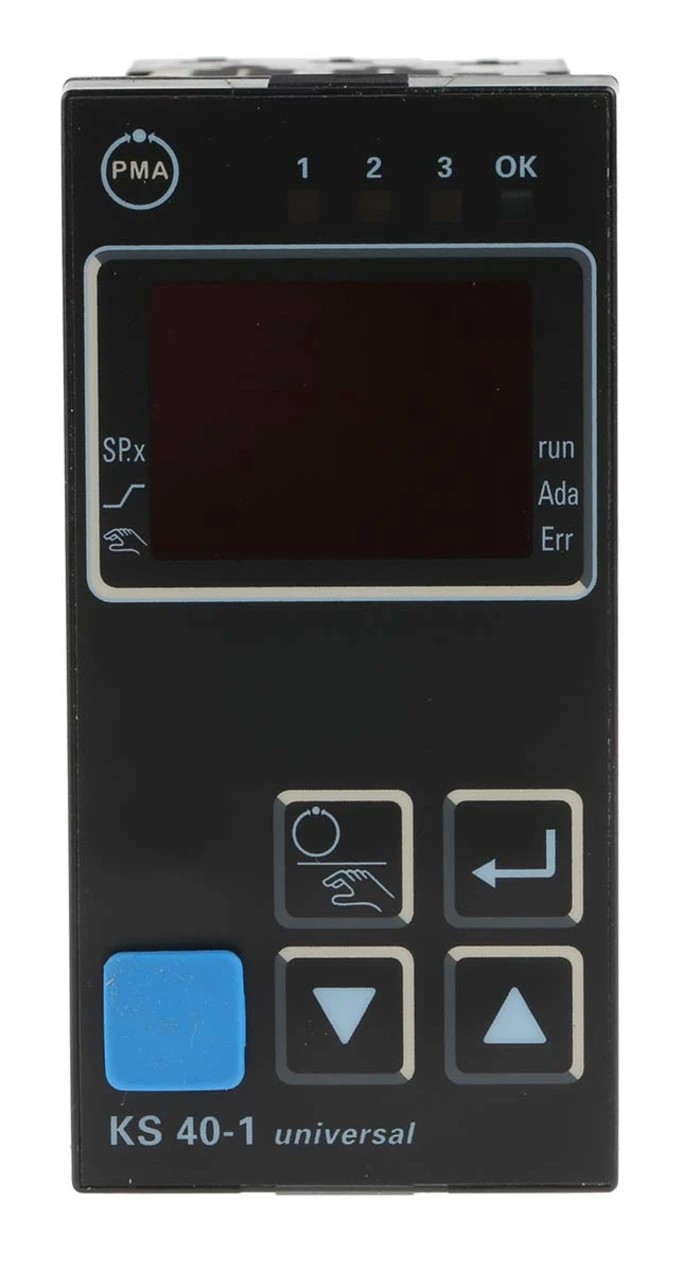

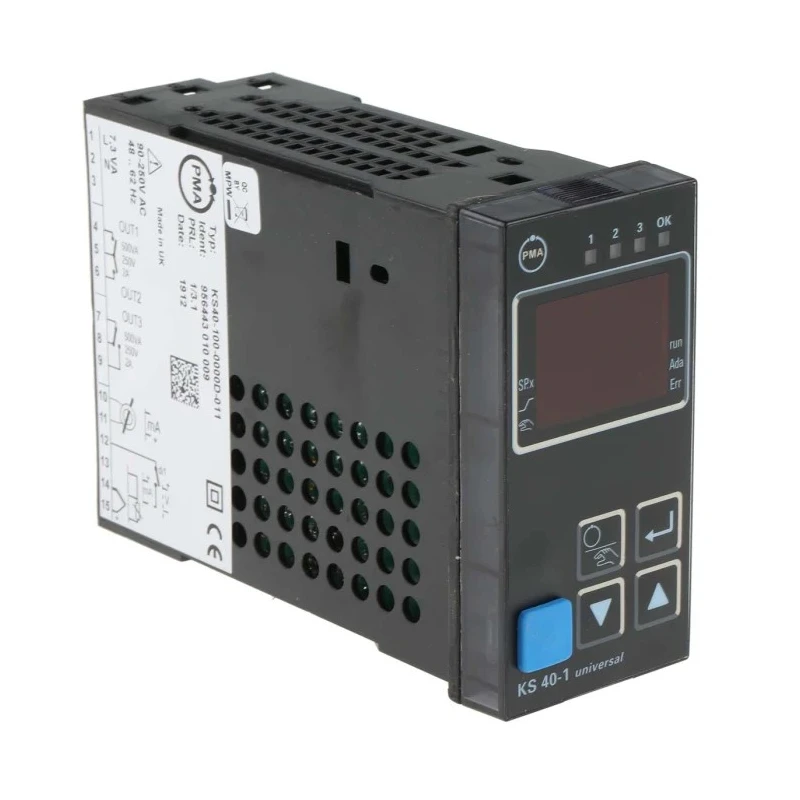

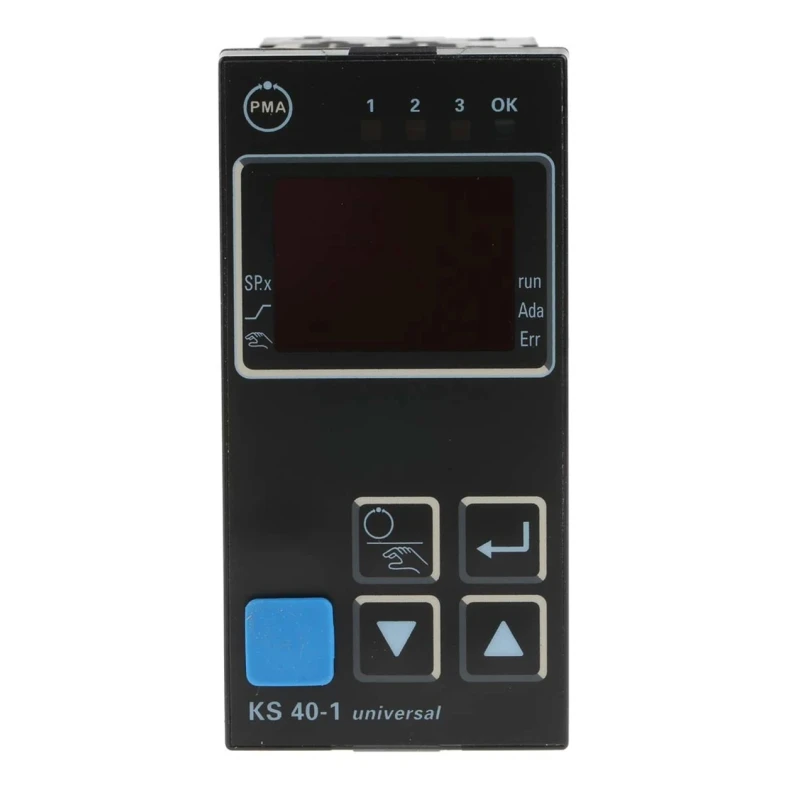

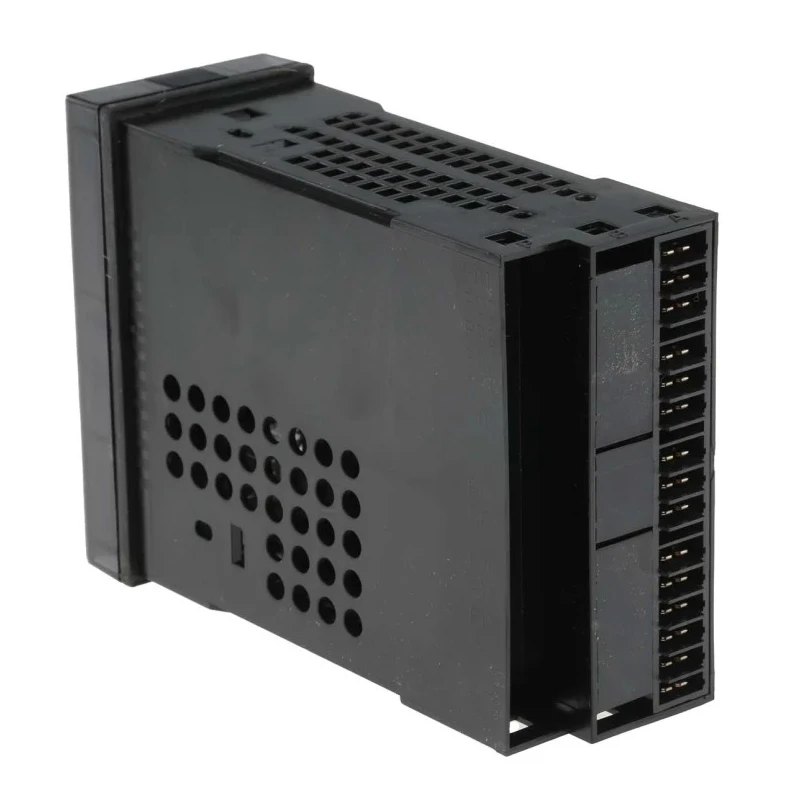

P.M.A KS40 Panel Mount PID Temperature Controller 3 Output Relay 250V AC KS40

The P.M.A KS40 Panel Mount PID Temperature Controller KS40 is designed for precise temperature regulation in industrial processes. It supports 3 relay outputs capable of handling voltages up to 250V AC, making it ideal for controlling various heating elements or electrical loads.

This controller operates over a broad temperature range from -20°C to +65°C and features an IP65-rated front panel that protects against dust ingress and low-pressure water jets, enhancing durability in harsh industrial environments.

Screw-type terminals provide secure and reliable wiring connections, while RS485 and RS422 digital communication protocols facilitate seamless integration with automation and control systems. The LED display allows users to monitor the device's output states and operating parameters conveniently.

Its compact size, measuring 48mm in width and 118mm in both length and panel depth, ensures efficient use of panel space. The panel mount design adheres to DIN 46 244 terminal standards for easy installation.

The KS40 controller supports temperature setpoints ranging from -100°C to +1760°C for thermocouples and -200°C to +850°C for resistance transducers, allowing versatile application across different sensor types. Additionally, it can control current and voltage signals within a selectable range, providing multifunctional process control capabilities.

This temperature controller is widely used in industrial furnaces, chemical processing, pharmaceutical manufacturing, and other automation applications where precision temperature regulation is critical.

The device supports a wide operating temperature range from -20°C to 65°C ensuring reliability in challenging environments. IP65-rated front panel provides robust resistance against dust and low-pressure water jets for durability.

Equipped with screw terminals for secure and stable electrical connections. Includes RS485 and RS422 digital communications for flexible data interfacing and monitoring. Features an LED display for clear visualization of output states and operating conditions.

Compact dimensions of 48mm width, 118mm length, and 118mm panel depth save installation space. Panel mount design enables straightforward integration into control panels, supported by DIN 46 244 terminal standards. Supports control of temperature, voltage, and current signals with adjustable setpoints over a wide range.

Manufactured in the United Kingdom to ensure high-quality engineering standards. Explore our extensive range of industrial Temperature Controllers at EnvMart to find the ideal device for your process control needs.
