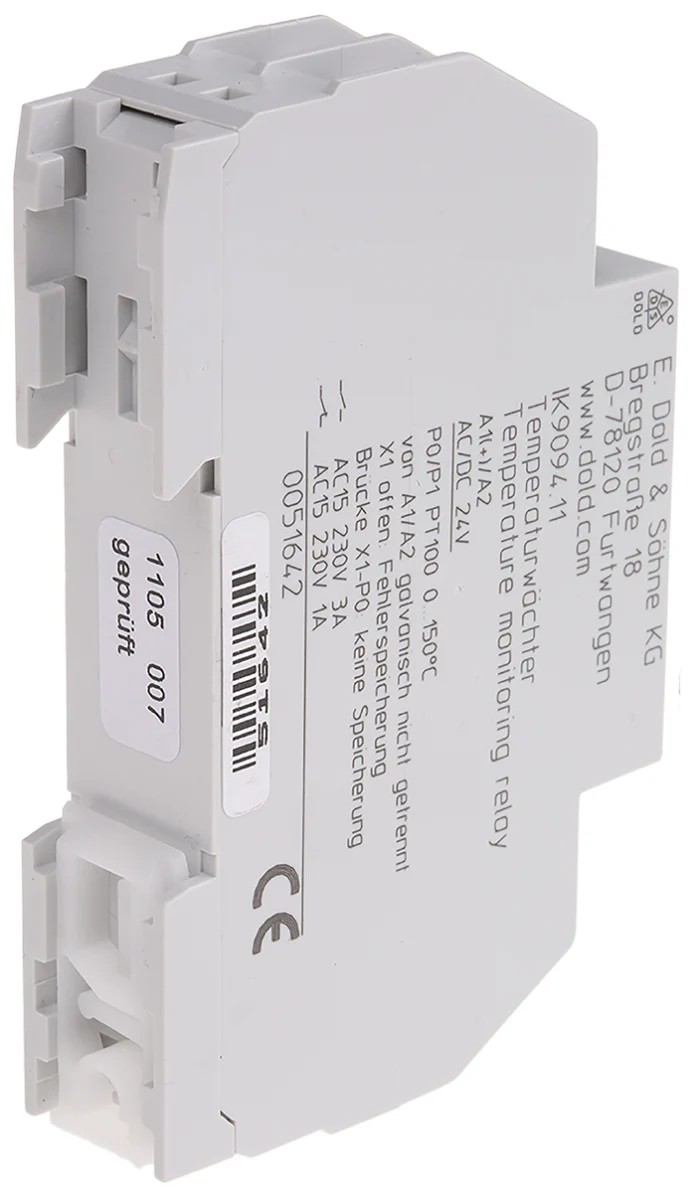

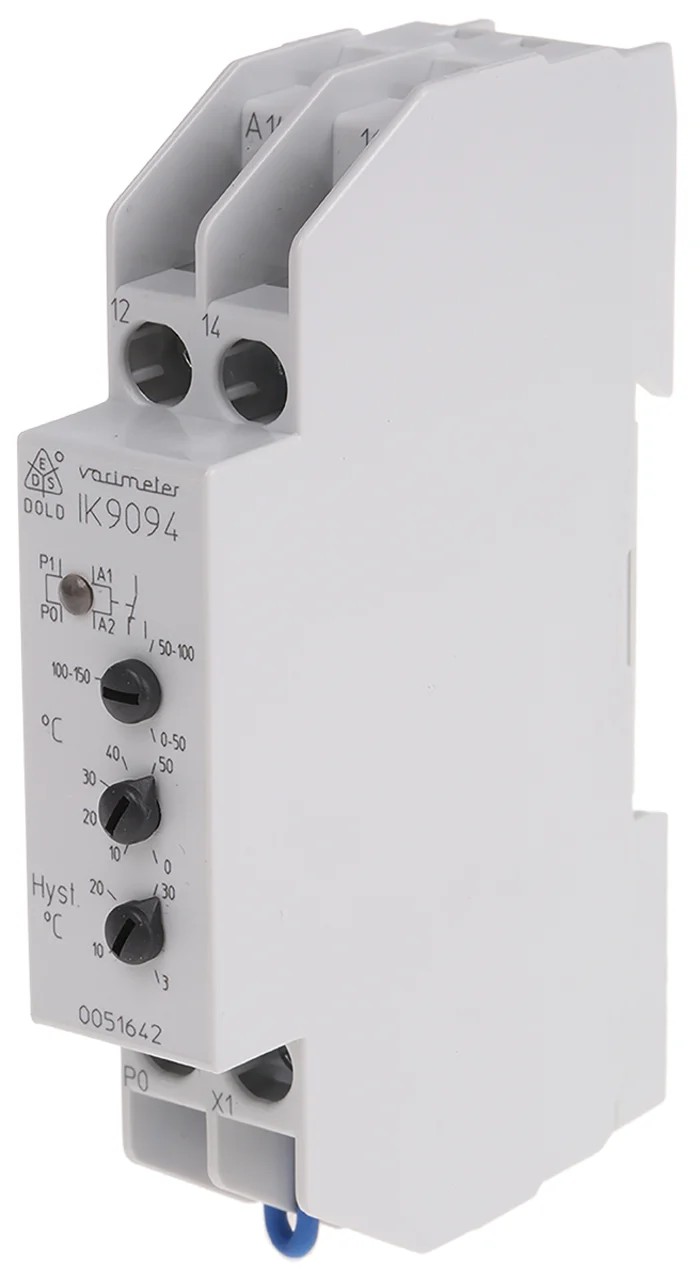

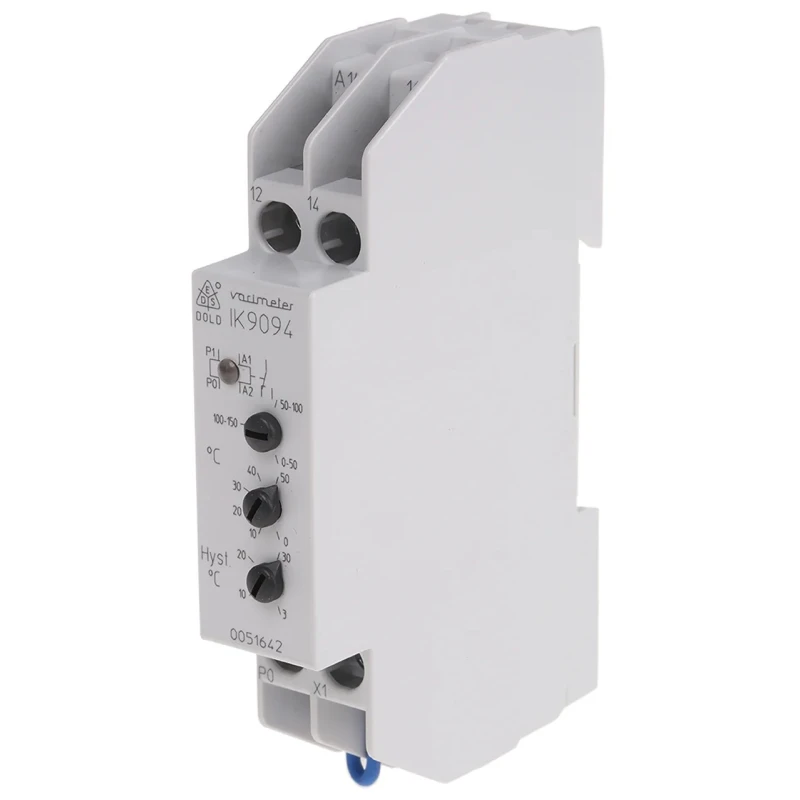

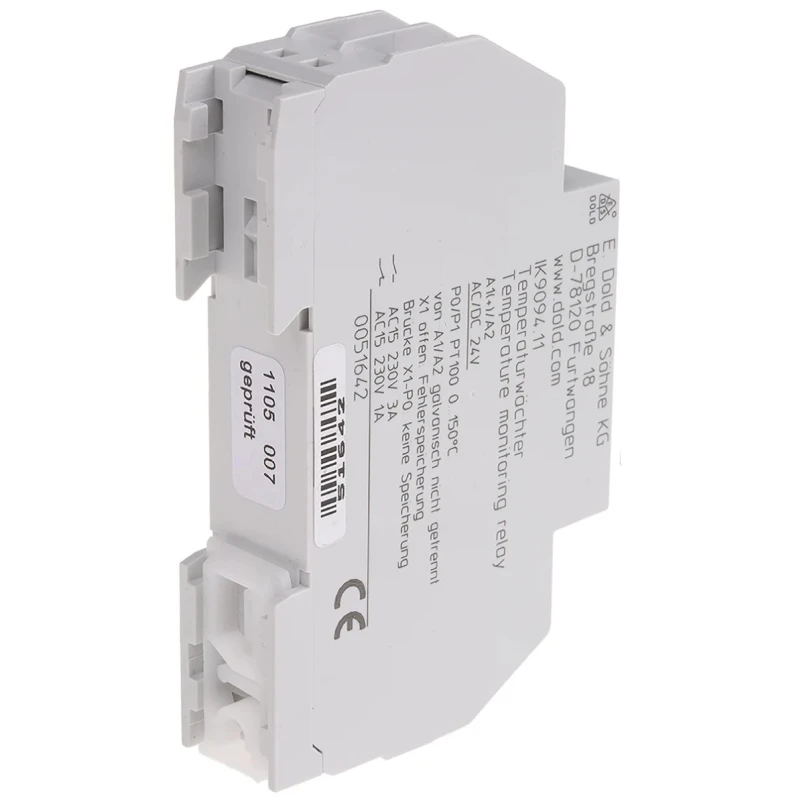

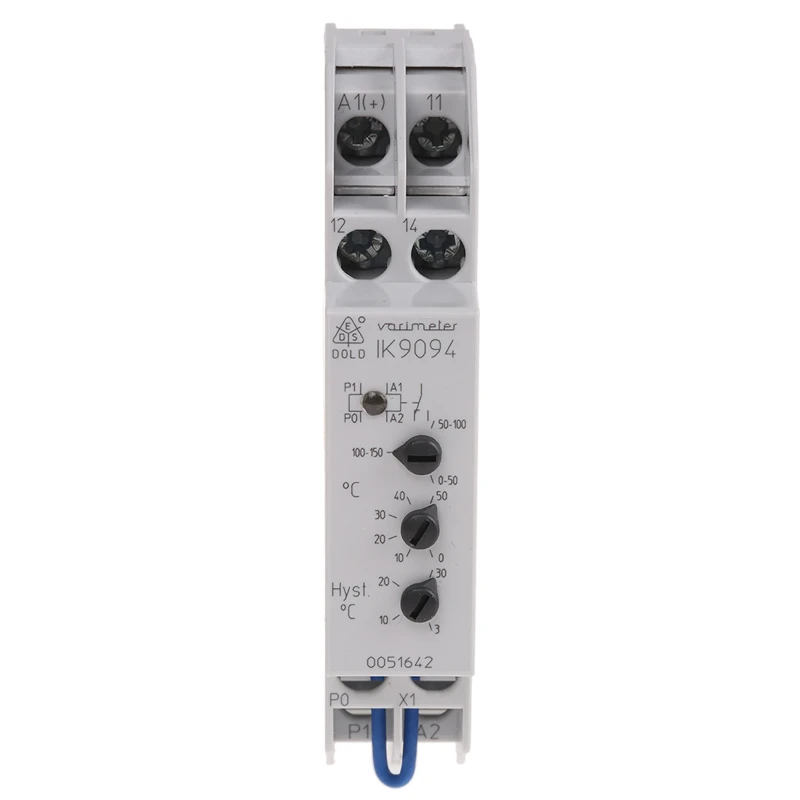

Dold Temperature Monitoring Relay, SPDT Contact, DIN Rail Mount, -50 °C to 150 °C, 24 V DC/AC IK9094.11 AC/DC24V 0-150°C

The Dold IK9094.11 AC/DC24V 0-150°C Temperature Monitoring Relay is designed for precise temperature surveillance in industrial and automation environments. With a broad monitoring range from -50 °C to 150 °C, this relay supports both 24 V DC and AC power supplies, offering versatile deployment in various control systems.

This relay utilizes a SPDT contact configuration and screw terminal connections, simplifying wiring in DIN rail-mounted assemblies. It includes LED indicators that provide clear feedback on operational status and output relay state, enhancing troubleshooting efficiency in real-time.

The built-in circuit broken wire detection ensures sensor integrity, critical for consistent temperature measurement and safety. Its programmable hysteresis and latching functions via the X1 terminal enable fine-tuning for application-specific temperature thresholds, reducing false alarms and system wear.

Ideal for temperature monitoring applications such as motors and ball bearings, the relay complies with internationally recognized IEC 255 and VDE 0435 standards. Its compact dimensions (17.5 x 90 x 59 mm) and housing protection class IP40/IP20 make it suitable for standard electrical enclosure environments.

The product originates from Germany, ensuring high manufacturing standards and reliability. The mounting type is DIN rail, optimizing space in control cabinets. Features a DIN rail mounting for easy installation. Operates with a 24 V DC or AC supply voltage.

Equipped with LED indicators for operation status and output relay state. Built-in detection for in-circuit broken wire on PT100 sensors. Programmable hysteresis and latching functions via terminal X1. Suitable for monitoring motors, ball bearings, and industrial temperature-critical applications.

Compact housing with IP40 protection and screw terminal type. Complies with IEC 255 and VDE 0435 standards. Dimensioned at 17.5 x 90 x 59 mm for compact electrical panels.

For reliable, precise temperature control and monitoring in electrical and automation applications, the Dold IK9094.11 relay provides robust performance and flexible configuration. Explore our extensive range of Monitoring Relays and electrical components at EnvMart.
