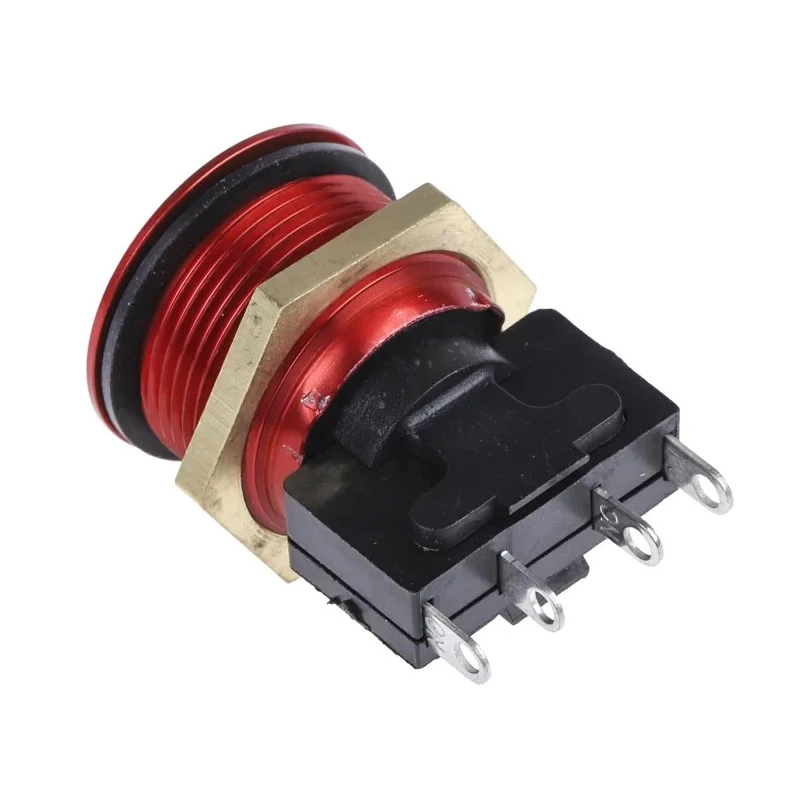

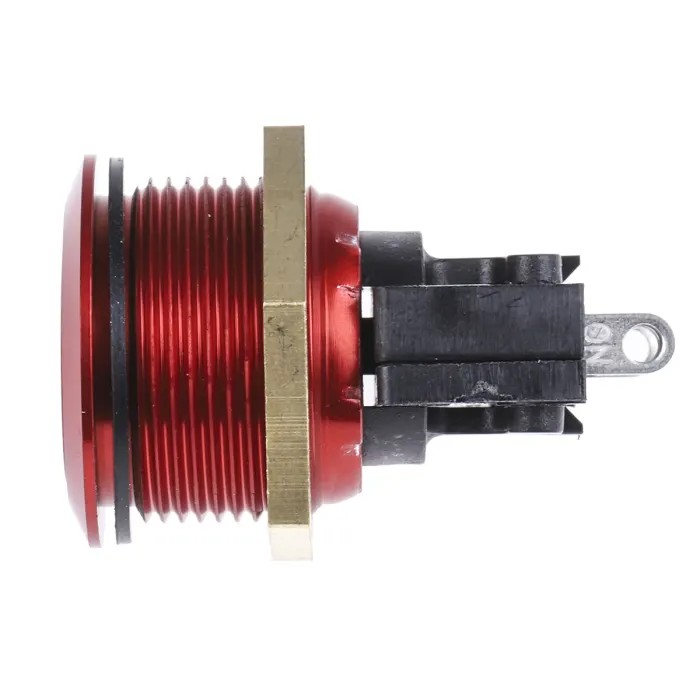

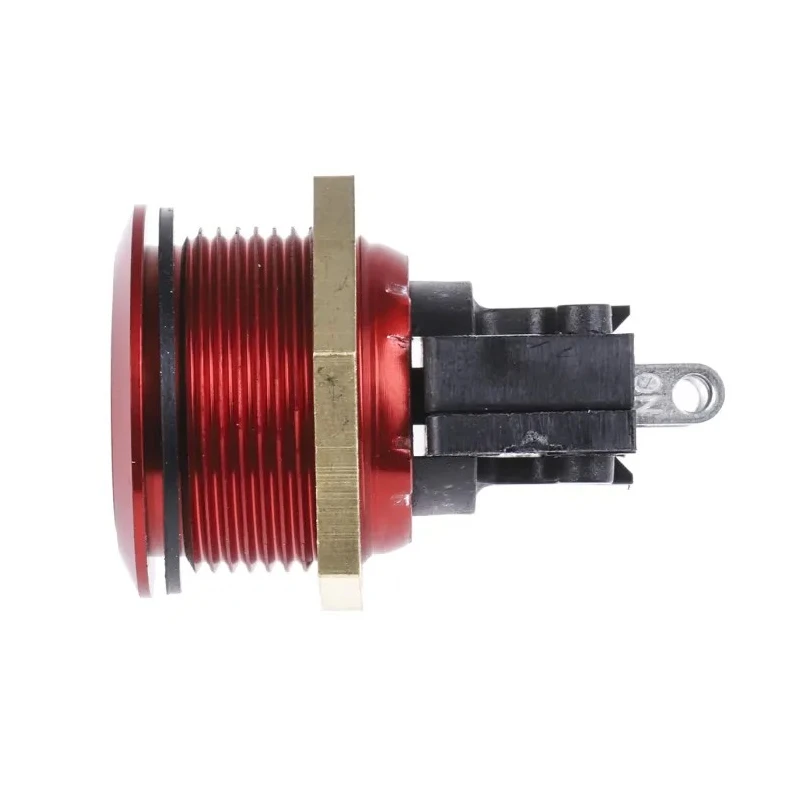

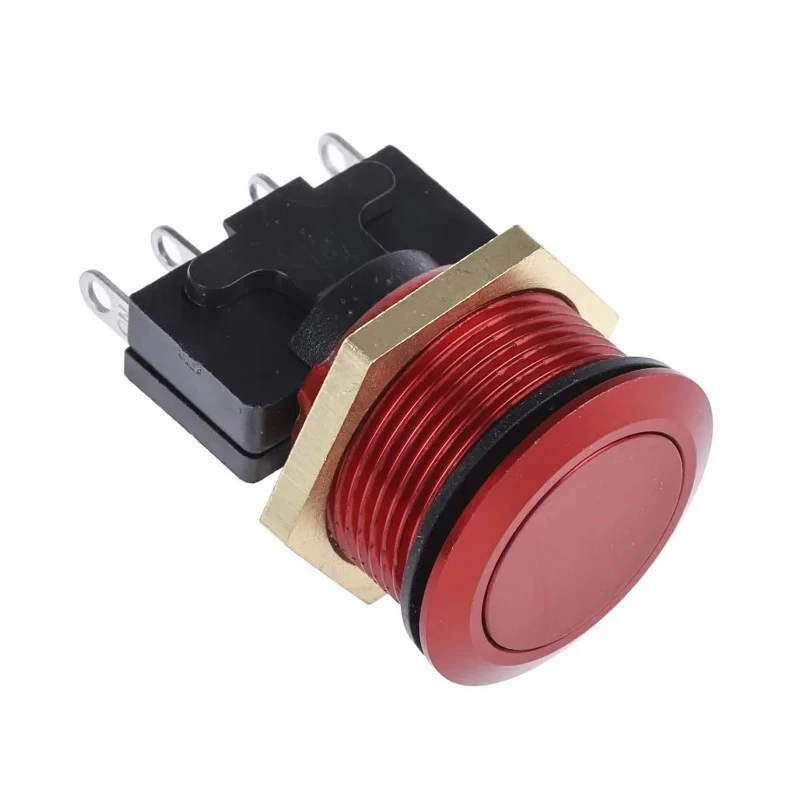

ITW Switches 76-95 Series Vandal Resistant Momentary Push Button Switch Panel Mount 19.2 mm Cutout SPDT IP67 76-9513/4044R

ITW Switches 76-9513/4044R is a vandal resistant, momentary push button switch engineered for panel mount applications with a 19.2 mm cutout size. This push button switch features a stainless steel body and button, providing exceptional resistance to corrosion, heat, and chemical exposure, making it highly reliable for industrial and harsh environment use.

With Single Pole Double Throw (SPDT) contact configuration and momentary switch operation, it only completes electrical contact while depressed, returning to the off position upon release. Rated at 10A contact current and compatible with 250V AC/DC voltage, it meets demanding electrical performance requirements.

The switch is sealed to IP67 standards ensuring total protection against dust ingress and resistance to temporary immersion in water, making it ideal for outdoor and wet environments. It supports a wide operating temperature range from -30°C to 105°C, suitable for diverse climatic conditions.

Applications of this push button switch include industrial control systems, military equipment, medical instrumentation, elevators, railway carriage systems, fishing vessels, earthmoving machinery, and external security door controls. Its rugged vandal resistant design ensures durable operation even in high-impact scenarios.

Mounting hardware is supplied with the switch for convenience during installation, and both front and rear mount versions are designed to minimize the risk of tampering by preventing objects from being forced behind the switch.

The switch is vandal resistant and suitable for harsh environments. It features a stainless steel body and button for corrosion and chemical resistance. Designed for momentary switch operation with on-off configuration. Panel sealed to IP67 rating for dust and temporary immersion protection.

Supports a maximum operating temperature of 105°C and minimum of -30°C. Equipped with solder terminal type and suitable for 250 V AC/DC voltage. Mount type is panel mount for secure installation. Conforms to UL and CSA standards for quality and safety assurance.

Includes mounting hardware for easy installation.

This push button switch is ideal for electrical, automation, and industrial control applications requiring a robust, secure, and durable switch solution. Browse the Electronics & Electricals category for more such high-quality Push Button Switches available at EnvMart.
