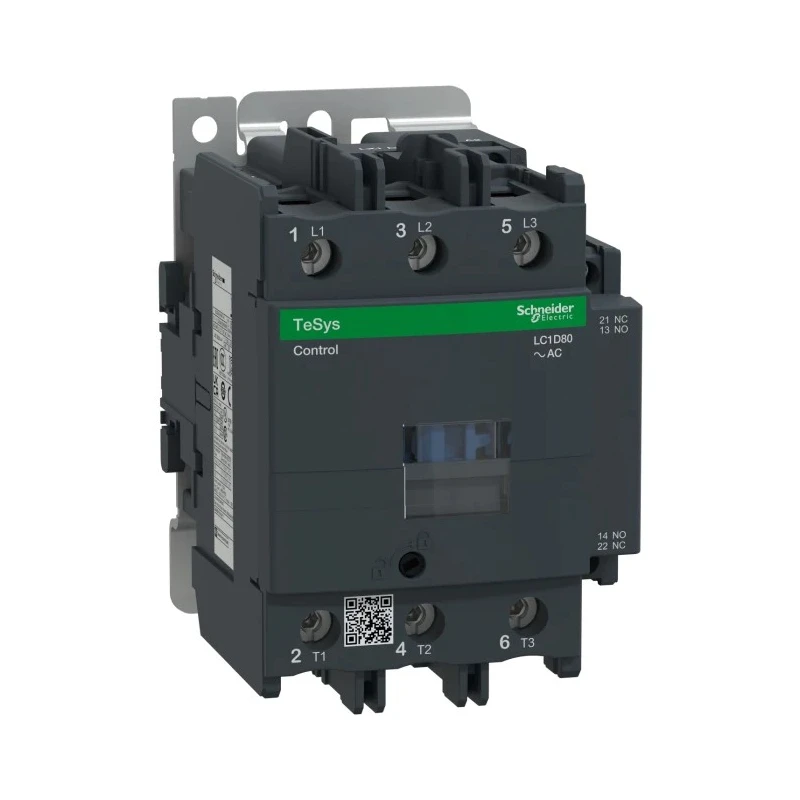

Schneider Electric LC1D Contactor, 3-Pole, 80A, 45 kW, 110V AC Coil, 3 NO, 1kV AC LC1D80F7

Schneider Electric LC1D80F7 contactor is a high-performance electrical device designed for motor control and resistive load management in industrial applications. Featuring a 110V AC coil voltage and 3 poles, it supports a contact voltage of 1kV AC and has a high current rating of 80A. This contactor is part of Schneider Electric's TeSys series, known for durability and reliability in automation and electrical control systems.

Its 45 kW power rating enables it to handle heavy-duty operations, especially in motor starters and resistive electrical circuits. The contactor’s quick switching action includes contact closing times between 20 to 35 milliseconds and opening times between 6 to 20 milliseconds, ensuring fast and efficient circuit control.

Equipped with one normally open (1 NO) and one normally closed (1 NC) auxiliary contact, it expands the device's functionality for complex control schemes. The device is mounted on DIN rails and features secure screw terminals, facilitating straightforward installation and maintenance.

The contactor operates efficiently in a broad temperature range from -40°C to 60°C, making it suitable for varied industrial environments. Its IP20 protection rating guarantees safety by preventing accidental touch while installed in electrical assemblies.

Compliance with international standards such as CCC, CSA, EAC, IEC, RoHS, and UL further confirms its quality and safety benchmarks. This Schneider Electric contactor is ideal for use in electrical motors, lighting installations, HVAC systems, and compressors, among other industrial applications.

The Contactor supports a contact voltage rating of 1kV AC for enhanced operational reliability. It features a power rating of 45 kW for demanding industrial applications. Quick action contacts close in 20-35 ms and open in 6-20 ms for efficient circuit control.

Built-in auxiliary contacts consist of 1 NO and 1 NC to improve switching functionality. Designed for DIN rail mounting with secure screw terminal connections for easy installation. Operational temperature range spans from -40°C to 60°C, ensuring performance in harsh environments.

The unit complies with CCC, CSA, EAC, IEC, RoHS, and UL certifications ensuring safety and quality standards. Its IP20 rating prevents accidental contact, enhancing user safety in electrical panels.

This product is part of Schneider Electric's commitment to sustainability with design features for disassembly and energy-efficient operation. Explore more Schneider Electric automation and control products on EnvMart for diverse industrial needs.
