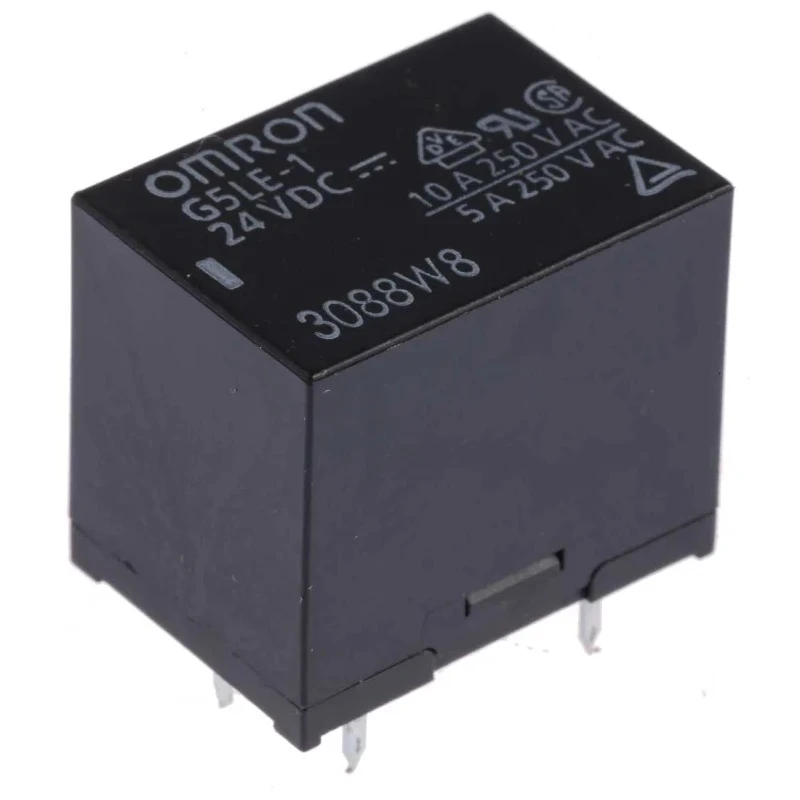

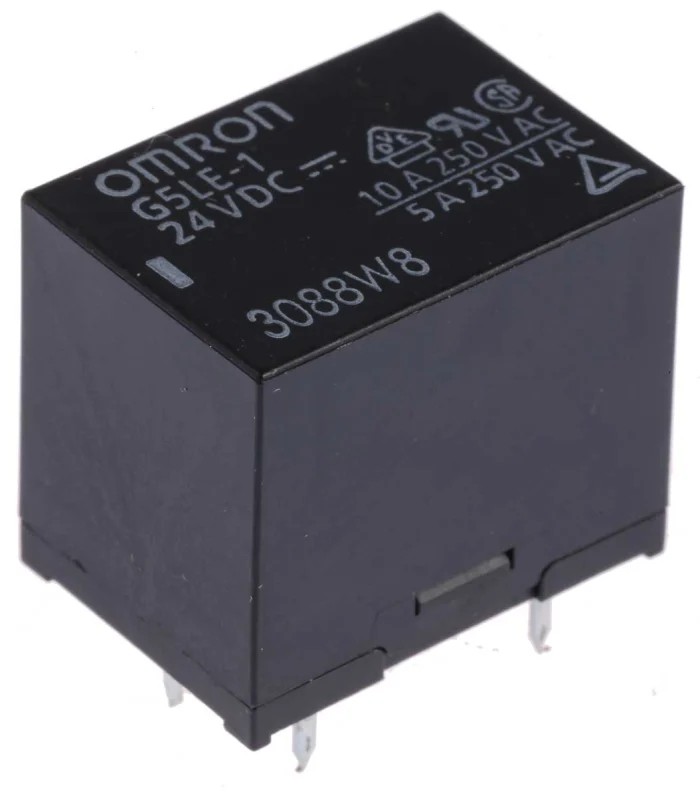

Omron PCB Power Relay, 24V DC Coil, 10A Switching Current, SPDT, PCB Mount G5LE-1 24DC
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Omron |
| Height | 19mm |
| Length | 22.5mm |
| Model | G5LE-1 24DC |
| Width | 16.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G5LE |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -25°C |
| Switching Current | 10A |
| Terminal type | PCB Pin |
| Standards/Approvals | CE, EN, IEC, RoHS, UL |
| Coil Resistance | 1.4kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 400mW |
Key Features
- The relay features a Single Pole Double Throw (SPDT) contact configuration.

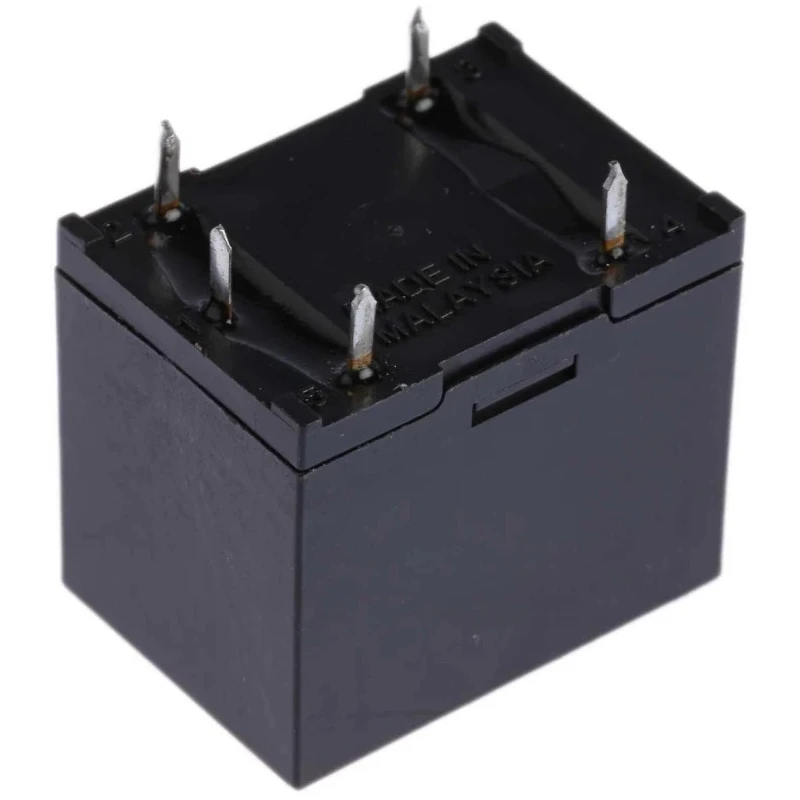

- Mount type is for PCB with PCB pin terminals for easy assembly.
- Capable of switching AC voltage up to 400V with a switching power of 1.25kVA.
- Operates in temperatures ranging from -25°C to 85°C.
- Coil resistance of approximately 1.4 kilo-ohms and coil power consumption of 400mW.
- Constructed with silver alloy contacts for durability and performance.
- Compliant with CE, EN, IEC, RoHS, and UL safety standards.

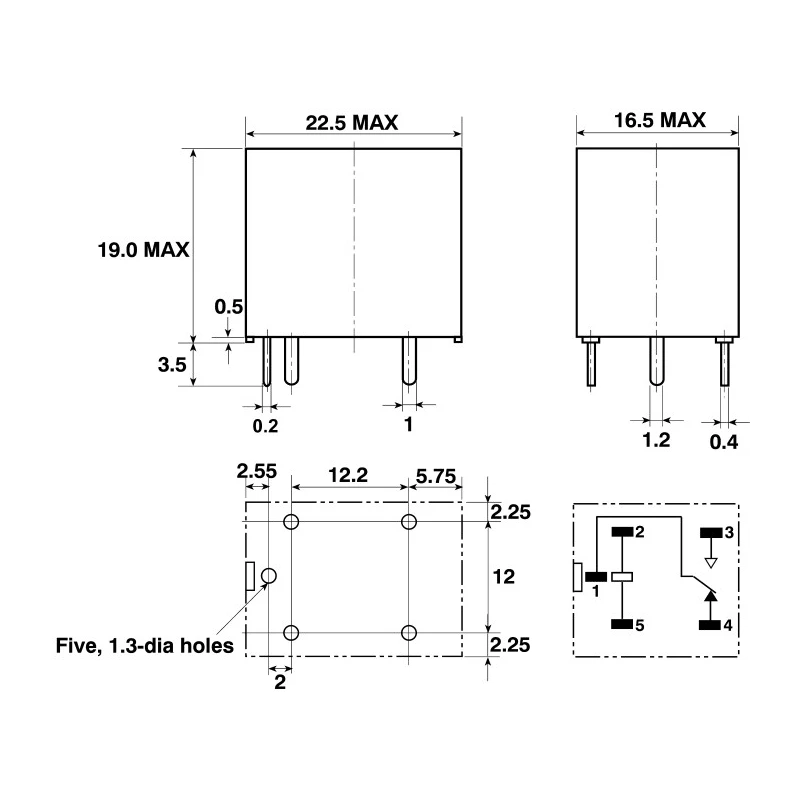

- Compact dimensions of 22.5mm length, 16.5mm width, and 19mm height.
Product Description
Omron G5LE-1 24DC is a PCB-mounted power relay featuring a 24V DC coil voltage and a robust 10A switching current rating. It is engineered for control circuit applications requiring reliable SPDT (Single Pole Double Throw) contact switching. This relay's subminiature sugar cube format ensures compactness while maintaining a high current capacity, ideal for industrial, laboratory, automation, and manufacturing environments.
The relay supports switching AC voltages up to 400V and power up to 1.25kVA. It has a coil resistance of 1.4 kilo-ohms with a coil power rating of 400mW, making it energy efficient. The ambient operating temperature range from -25°C to 85°C provides versatility across various working conditions. The silver alloy contact material contributes to long service life and reliable conductivity.
Mounting is designed for PCB with PCB pin terminal type for easy integration into printed circuit boards. The relay adheres to key industry standards and approvals including CE, EN, IEC, RoHS, and UL, ensuring compliance and safety in multiple markets.
The relay’s SPDT contact configuration offers flexible switching options. Compact sugar cube package fits tight spaces in control assemblies. High impulse withstand voltage up to 4500V enhances reliability against electrical surges.
Low coil power consumption for efficient operation. Silver alloy contacts for durability and superior conduction. Comprehensive industrial and laboratory applications including automation and signal conditioning. Manufactured in Malaysia with proven quality standards.
This Omron PCB Power Relay G5LE-1 24DC is suitable for projects requiring durable and precise relay switching. Explore similar power relays and related components in the Electronics & Electricals > Relays & Contactors > Power Relays category on EnvMart for broader selection.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current rating of 10A.
The coil voltage for the G5LE-1 24DC is 24V DC.
It can switch AC voltages up to 400V.
The relay has dimensions of 22.5mm in length, 16.5mm in width, and 19mm in height.
The relay features a Single Pole Double Throw (SPDT) contact configuration.
The coil resistance is approximately 1.4 kilo-ohms.
The coil power consumption is 400mW.
It operates in temperatures ranging from -25°C to 85°C.
The contacts are constructed from silver alloy, which contributes to durability and performance.
It complies with CE, EN, IEC, RoHS, and UL safety standards.
The relay is designed for PCB mounting with PCB pin terminals for easy assembly.
It is suitable for control circuit applications in industrial, laboratory, automation, and manufacturing environments.
