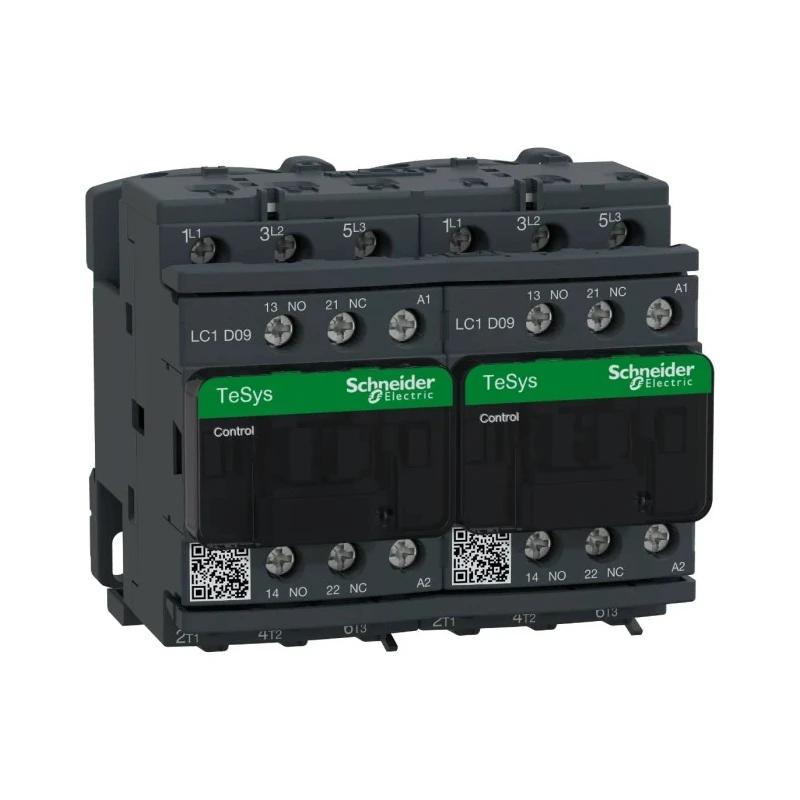

Schneider Electric LC2D Contactor, 48V AC Coil, 3-Pole, 9 A, 4 kW, 690V AC, Screw Terminals LC2D09E7
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load, Reversing |
| Length | 77mm |
| Model | LC2D09E7 |
| Depth | 86mm |
| Width | 90mm |
| Mount Type | DIN Rail |
| Series | LC2D |
| Power Rating | 4kW |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 48V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 9A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 2 NO/2 NC |
| Operational Current Ie | 9A |
| Control Circuit Voltage Uc | 48V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running |
| Example of use | all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Operates at 48V AC coil voltage with 3-pole configuration.
- Rated contact current of 9 A and power rating of 4 kW at 690V AC.
- Equipped with screw terminals providing IP20 finger-safe connections.
- Includes 3 normally open contacts (3 NO) and 2 auxiliary contacts for enhanced switching.
- Designed for DIN rail mounting or panel mounting via screws.
- Wide operating temperature range from -25°C to 50°C ensures versatile industrial use.
- Compact dimensions of 90mm width, 77mm length, and 86mm depth for easy installation.
- Complies with international standards including CCC, CSA, EAC, IEC, RoHS, and UL.
Product Description
Schneider Electric LC2D09E7 contactor features a 48V AC coil and 3-pole configuration, tailored for reliable motor control and resistive load management in industrial environments. It has a 9 A contact current rating and supports a power rating of 4 kW at 690V AC, making it suitable for a wide range of electrical applications.
The device includes 3 normally open (NO) contacts and 2 auxiliary contacts (configured as 2 NO/2 NC) for additional switching functions. Screw terminals ensure secure and finger-safe IP20 connections with markings compatible for both North American and international standards.
Mounting options include DIN rail or panel mount, offering installation flexibility. Designed to operate reliably in temperatures from -25°C up to 50°C, this contactor maintains performance across varying industrial conditions. Its compact dimensions (width: 90mm, length: 77mm, depth: 86mm) facilitate integration into control panels.
Schneider Electric's LC2D series employs linear translation movement providing double break of the poles for enhanced safety and longevity. This product complies with major international approvals including CCC, CSA, EAC, IEC, RoHS, and UL, ensuring adherence to quality and safety standards.
Ideal for applications like motor control, lifts, escalators, conveyors, pumps, compressors, air conditioning units, and mixers, this contactor supports both AC-1 (resistive loads) and AC-3 (starting and stopping squirrel cage motors) utilization categories.
Operates with built-in auxiliary contacts for extended switching capabilities. Pre-installed interlock enhances safety in reversing motor control applications. Flexible control circuit design accommodates a variety of industrial tasks.
Package contains a robust Schneider Electric LC2D09E7 reversing contactor for reliable automation control. For users seeking quality and dependable industrial Contactors, this product offers both performance and compliance with global standards.
Explore EnvMart's extensive collection of Schneider Electric automation and control gear to find complementary products for your industrial and electrical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this model is 4 kW at 690V AC.
It has a contact current rating of 9 A.
This unit operates on a coil voltage of 48V AC.
This contactor features a 3-pole configuration.
The dimensions are 90mm in width, 77mm in length, and 86mm in depth.
It operates within a temperature range of -25°C to 50°C.
It can be mounted on a DIN rail or panel mounted via screws.
It is equipped with screw terminals that provide IP20 finger-safe connections.
This model includes 2 auxiliary contacts configured as 2 normally open (NO) and 2 normally closed (NC).
It is suitable for motor control, lifts, escalators, conveyors, pumps, compressors, air conditioning units, and mixers.
This contactor complies with international standards including CCC, CSA, EAC, IEC, RoHS, and UL.
It is designed for motor control, resistive load management, and reversing applications.
