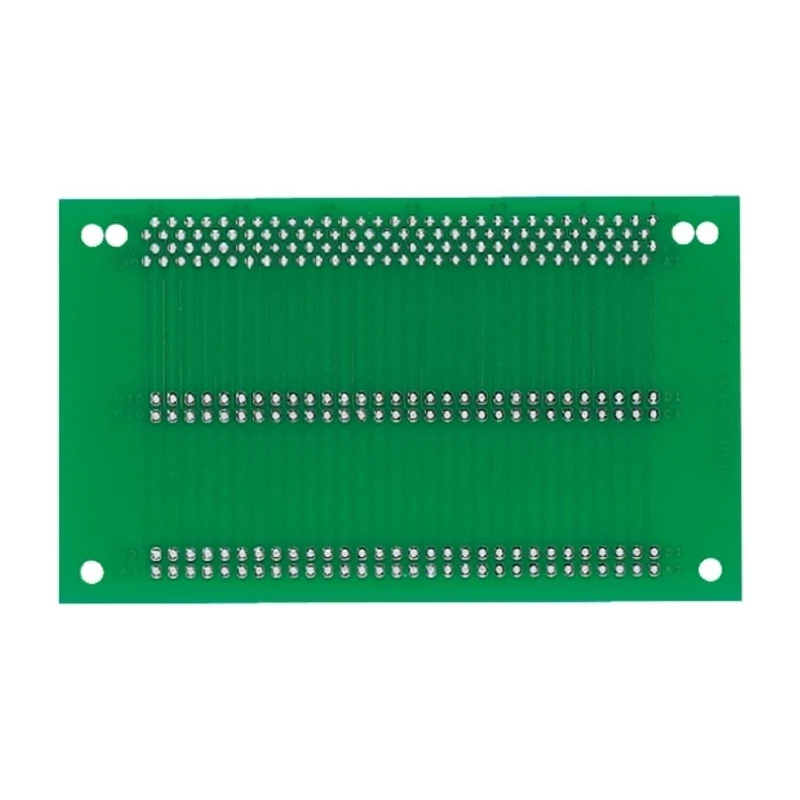

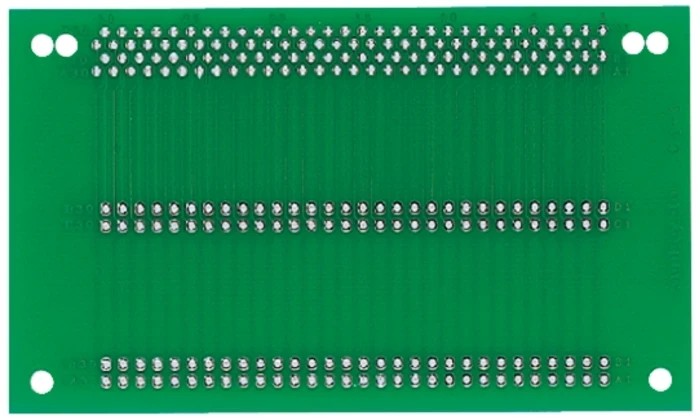

Sunhayato 120 Way 2-Sided Extender Board Universal Board FR4 Epoxy Glass Fabric Laminate 101.6 mm x 60.33 mm CK-1

Free Delivery in India | Lowest Global Shipping Charges

Sunhayato 120 Way 2-Sided Extender Board Universal Board FR4 Epoxy Glass Fabric Laminate 101.6 mm x 60.33 mm CK-1

Name: Sunhayato 120 Way 2-Sided Extender Board Universal Board FR4 Epoxy Glass Fabric Laminate 101.6 mm x 60.33 mm CK-1
Brand: Sunhayato
SKU: 329470
Price: 17.53 USD
Availability: InStock



Category Extender Board Brand Sunhayato Condition New

Specifications

Country of Origin	Japan
Brand	Sunhayato
Length	101.6mm
Model	CK-1
Width	60.33mm
Sub Type	Universal Board
Board Material	Epoxy Glass Fabric Laminate
Standards/Approvals	RoHS
Number of Contacts	120
Number of Sides	2
Board Thickness	1.6mm
FR Material Grade	FR4
Sunhayato Matrix Board FR1 1 mm Holes, 2.54 mm Pitch, 160 mm 115mmBrand	Sunhayato

Key Features

The board is constructed from 1.6 mm thick FR4 epoxy glass fabric laminate providing durability and stability.
It features 120 contacts and is double-sided to accommodate complex connections.
The universal board measures 101.6 mm in length and 60.33 mm in width for versatile prototyping needs.
The board surface is coated with solder resist for enhanced protection during soldering processes.
It is RoHS compliant, ensuring environmental safety and adherence to standards.
Designed to convert staggered connector pin alignment, enabling compatibility with a wider range of connectors.
Originates from Japan, guaranteeing high manufacturing quality and precision.

Product Description

Sunhayato CK-1 is a professional-grade 120 Way 2-Sided Extender Board Universal Board made from FR4 epoxy glass fabric laminate material measuring 101.6 mm length by 60.33 mm width with a 1.6 mm thickness. This extender board is engineered to provide connector conversion and extension by converting staggered connector pin alignment, making it an essential component for electronic prototyping and development workflows.

The board is constructed from a sturdy 1.6 mm thick FR4 epoxy glass fabric laminate that ensures high durability and thermal stability. It features plated-through holes and is coated with solder resist, enhancing soldering reliability and preventing damage during manufacturing. This extender board supports a maximum of 120 pins, accommodating high-density connector configurations common in industrial and electronic applications.

Sunhayato CK-1 board is RoHS compliant, adhering to environmental and safety standards, making it suitable for industrial, laboratory, and electronic manufacturing environments. Its universal design allows it to interface with various staggered connectors, providing flexible connectivity solutions for development boards and prototyping projects.

Manufactured in Japan, this board meets stringent quality control standards, ensuring precision and consistent performance. It is widely used in electronics prototyping, PCB development, cleanroom manufacturing, and related applications where reliable connector extension and conversion are required.

The board is double-sided with 120 contacts ideal for high-density connections. Constructed from FR4 epoxy glass fabric laminate with 1.6 mm thickness. Coated with solder resist for protection and ease of soldering. Converts staggered connector pin alignment effectively.

Complies with RoHS safety and environmental standards. Measures 101.6 mm length by 60.33 mm width for broad compatibility. Manufactured in Japan with high-quality standards. Explore a wide array of Extender Boards, adapter boards, and prototyping solutions suitable for electronics development and industrial applications available at EnvMart.
