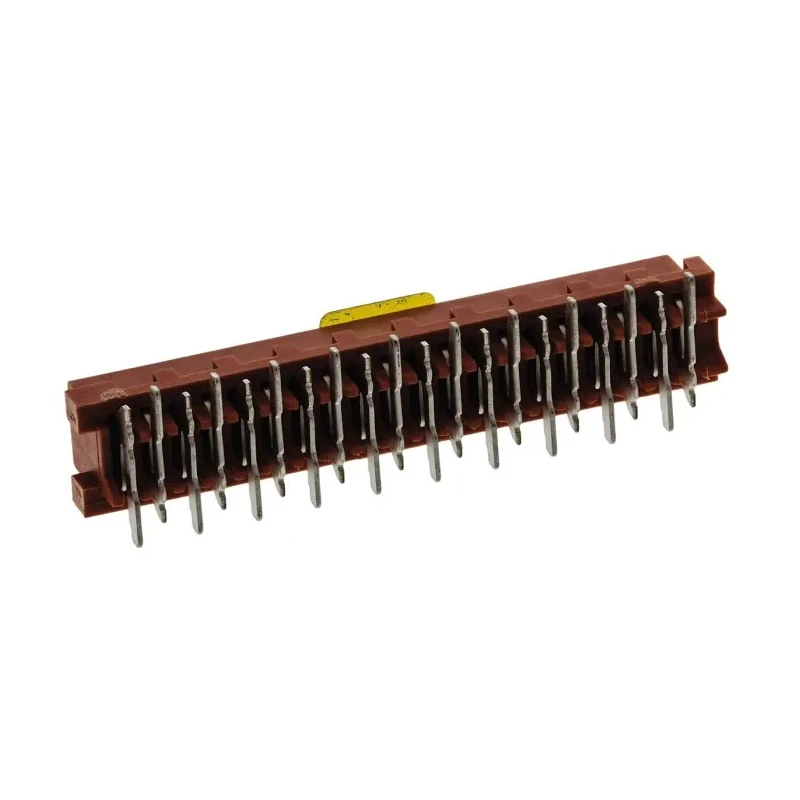

TE Connectivity Micro-MaTch Series Straight Surface PCB Socket 20-Contact 2 Row 2.54mm Pitch Solder 9-188275-0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 230V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1.5A |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Bronze |
| Series | Micro-MaTch |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Female-On-Board |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Row Pitch | 1.52mm |
Key Features
- Compact and space-saving board-to-board connector solution.
- Female-on-board sub-type with polyamide housing provides durability.
- Contacts are fully tin plated to prevent corrosion.
- Operates reliably from -40°C to 105°C temperature range.
- Rated at 1.5 A current and 230 V voltage.
- Connector features a gas-tight contact spring system for secure electrical connection.
- Polarized design prevents incorrect mating of connectors.
- Applications include robotics, control units, audio equipment, and automotive electronics.
Product Description
TE Connectivity 9-188275-0 Micro-MaTch Series Straight Surface PCB Socket is a high-quality female-on-board SMT socket designed for precise board-to-board connections. Featuring 20 contacts arranged in 2 rows with a pitch of 2.54 mm, this socket provides a compact and reliable interconnection solution suitable for industrial, electronic, automotive, and consumer applications.
The polyamide housing ensures robust mechanical performance and electrical insulation. Its solder termination type allows secure surface mounting on PCB, supporting assembly integrity. The bronze contacts with tin plating guarantee low electrical resistance and lasting durability, while the contact spring system prevents fretting corrosion by maintaining tight, gas-tight connections.
Designed to endure operating temperatures from -40°C to 105°C, this connector is ideal for environments with thermal and vibration stresses. The polarized design eliminates the risk of mismating, and versions with locking latches ensure secure mating when required.
Compact, space-saving design for effective PCB layout. Full tin plating on contacts for corrosion resistance. Contact spring system enhances connection reliability. Gas-tight connections prevent oxidation and signal loss.
Polarization features avoid incorrect connector mating. Rated for 1.5 A current and 230 V voltage operation. Suitable for various applications such as robotics, automotive, and audio systems. High-temperature rating supports use in harsh environments.
Durable polyamide housing for mechanical and thermal robustness.
This PCB socket is widely used in production equipment, material handling robots, motor controls, central heating units, car radios, navigation devices, dashboard systems, base stations, set top boxes, and audio equipment. Its reliable electrical performance makes it a preferred choice in electronic and industrial manufacturing settings.
Explore more connectors and PCB Socket solutions in the Electronics & Electricals category at EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this PCB socket is 230V.
This socket is rated for a current of 1.5A.
It operates reliably within a temperature range of -40°C to 105°C.
The socket features 20 contacts arranged in 2 rows.
The housing is made of polyamide, while the contacts are made of bronze with tin plating.
This model uses a solder termination type for secure surface mounting on PCB.
Yes, the connector features a polarized design to prevent incorrect mating.
The pitch size of the contacts is 2.54mm.
It is suitable for applications in robotics, automotive electronics, audio equipment, and control units.
The orientation of this socket is straight.
This product utilizes a board-to-board connector system.
The country of origin for this PCB socket is India.
