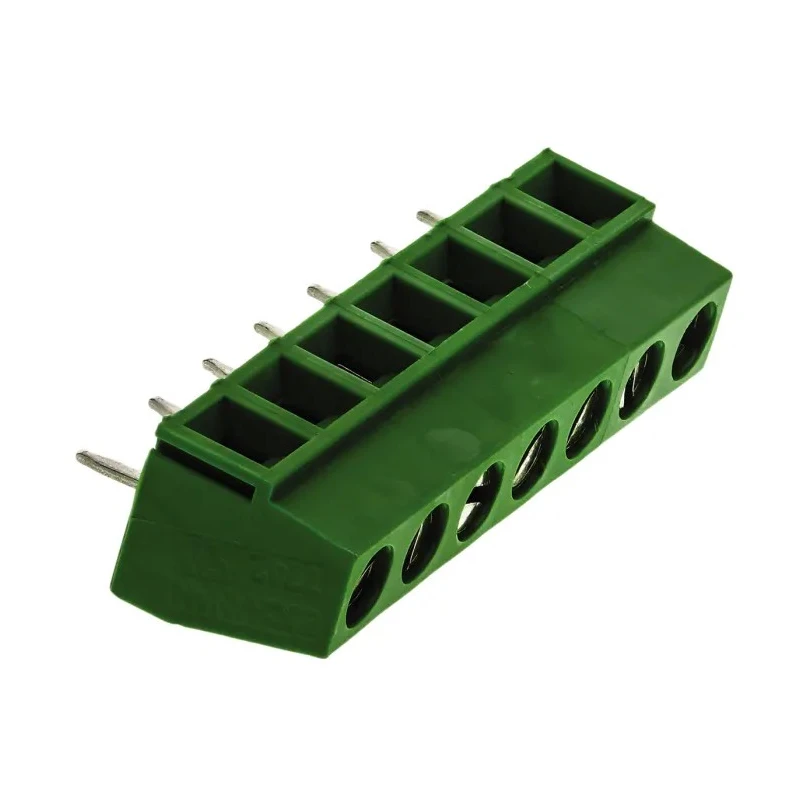

TE Connectivity Buchanan Series 7-Contact 5 mm Pitch 1 Row PCB Terminal Block 282836-7
Specifications
| Country of Origin | Italy |
|---|---|
| Voltage | 300V ac |
| Brand | TE Connectivity |
| Colour | Green |
| Orientation | Straight |
| Current | 13.5A |
| Length | 35mm |
| Model | 282836-7 |
| Depth | 8.2mm |
| Width | 10mm |
| Housing Material | Polyamide |
| Series | Buchanan |
| Number of Rows | 1 |
| Pitch | 5mm |
| Number of Contacts | 7 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 1.3mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 30AWG |
Key Features
- Features a low profile, compact design ideal for space-constrained PCB applications.
- Supports a current rating of 13.5A for robust power transmission.
- Accepts wire sizes ranging from 30 AWG to 16 AWG (0.05 to 1.3 mm²) via M3 screw clamp terminals.
- Constructed with durable green polyamide housing ensuring insulation and mechanical strength.
- Operates safely up to 300V AC voltage for versatile electrical requirements.
- Designed for straight orientation and side wire entry for easy installation.
- Includes interlocking feature allowing secure side-by-side stacking of terminal blocks.
- Manufactured in Italy maintaining high-quality standards.
Product Description
TE Connectivity 282836-7 Buchanan Series PCB Terminal Block is a 7-contact, low profile connector with a 5 mm pitch arranged in one row, tailored for mounting on printed circuit boards.
This terminal block supports an electrical current of up to 13.5 amperes and voltage rating of 300V AC, making it suitable for various industrial, laboratory, and manufacturing electrical applications.
The housing is made from premium green polyamide 6.6 GF, providing excellent durability and electrical insulation. Its design incorporates side wire entry and M3 screw clamp terminals that accommodate wire gauges from 30 AWG (0.05 mm²) up to 16 AWG (1.3 mm²).
An interlock feature enables a secure side-to-side connection, allowing multiple terminal blocks to be stacked for modular configurations. The connector's straight orientation provides ease of installation on standard PCB layouts.
These terminal blocks are widely used in electrical control systems, industrial automation, HVAC controls, power supplies, and various commercial electronic assemblies. They ensure safe, reliable data, signal, and power transfer directly to PCBs.
The product is manufactured to meet industry standards though no specific approvals are indicated. Originating from Italy, it represents high craftsmanship and quality assurance. Low profile 5 mm pitch PCB Terminal Block for compact applications.
Rated for 13.5A current and 300V AC voltage. M3 screw clamp terminals accommodate 30 to 16 AWG wire sizes. Polyamide housing provides mechanical durability and electrical insulation. Interlocking feature enables side stacking for modular installation.
Ideal for industrial, laboratory, HVAC, manufacturing, and commercial uses. Manufactured in Italy for trusted quality and performance.
Explore more TE Connectivity components and related terminal blocks in the Electronics & Electricals category on EnvMart to find compatible products and connectors tailored for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 13.5A, making it suitable for robust power transmission in various applications.
This unit accepts wire sizes ranging from 30 AWG (0.05 mm²) to 16 AWG (1.3 mm²) via M3 screw clamp terminals.
The terminal block has a length of 35mm, a width of 10mm, and a depth of 8.2mm.
It features a straight orientation with side wire entry, facilitating easy installation on printed circuit boards.
The housing is constructed from green polyamide, providing excellent insulation and mechanical strength.
Yes, it includes an interlocking feature that allows for secure side-by-side stacking of terminal blocks.
The contacts are arranged with a pitch of 5 mm, which is suitable for compact PCB applications.
This terminal block is manufactured in Italy, ensuring high-quality standards in its production.
It is part of the Buchanan Series, which is known for its low profile and compact design.
It is widely used in electrical control systems, industrial automation, HVAC controls, power supplies, and commercial electronic assemblies.
This model features 7 contacts, allowing for multiple connections in a single unit.
