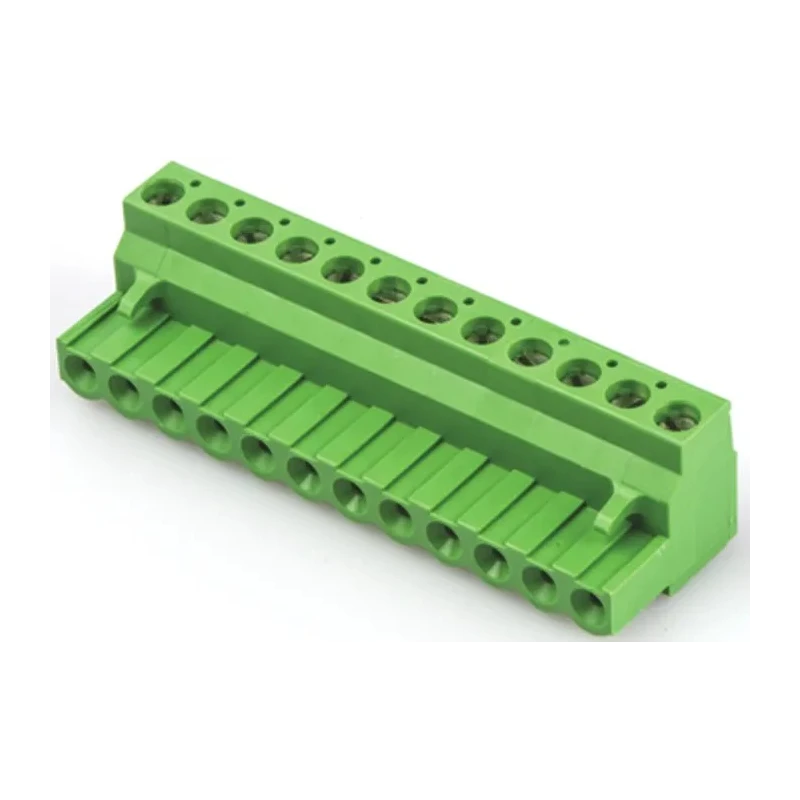

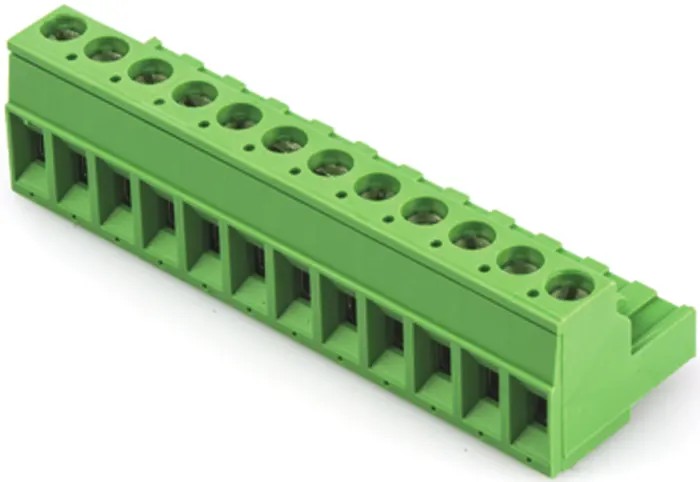

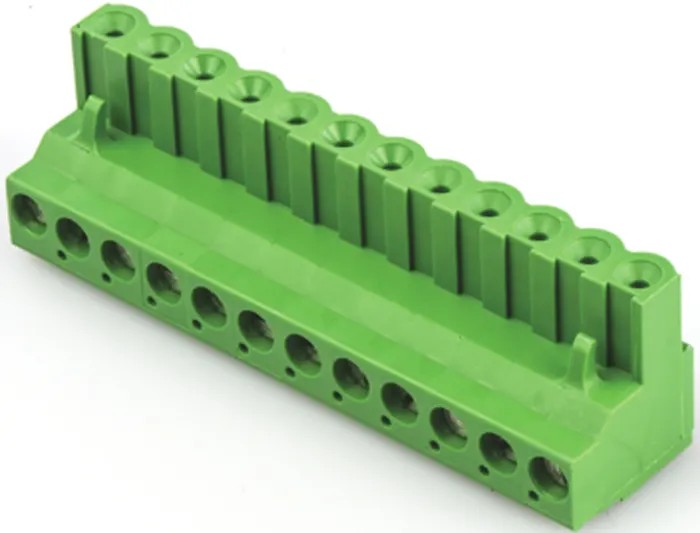

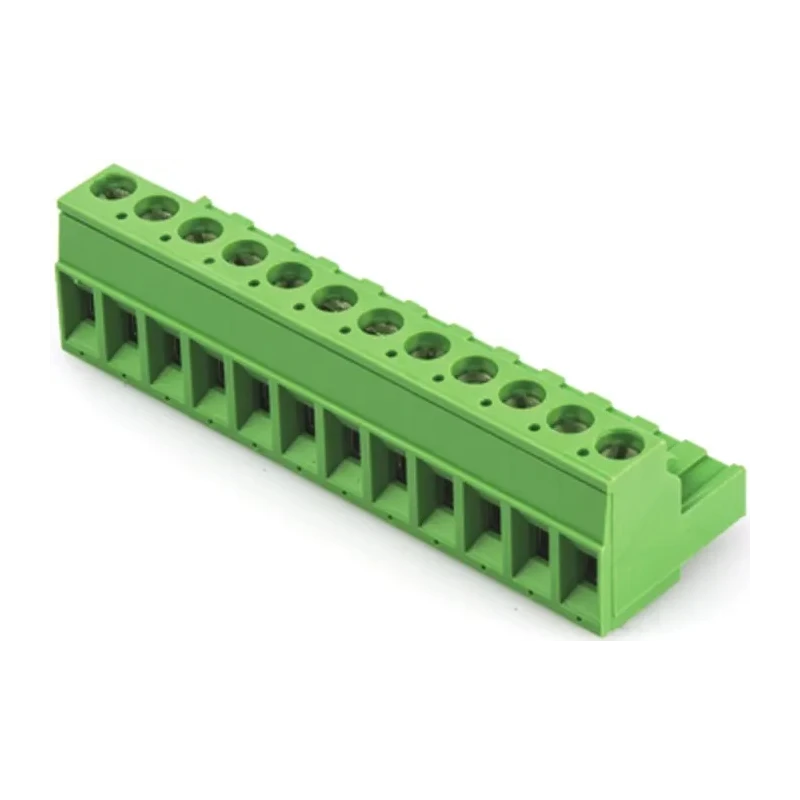

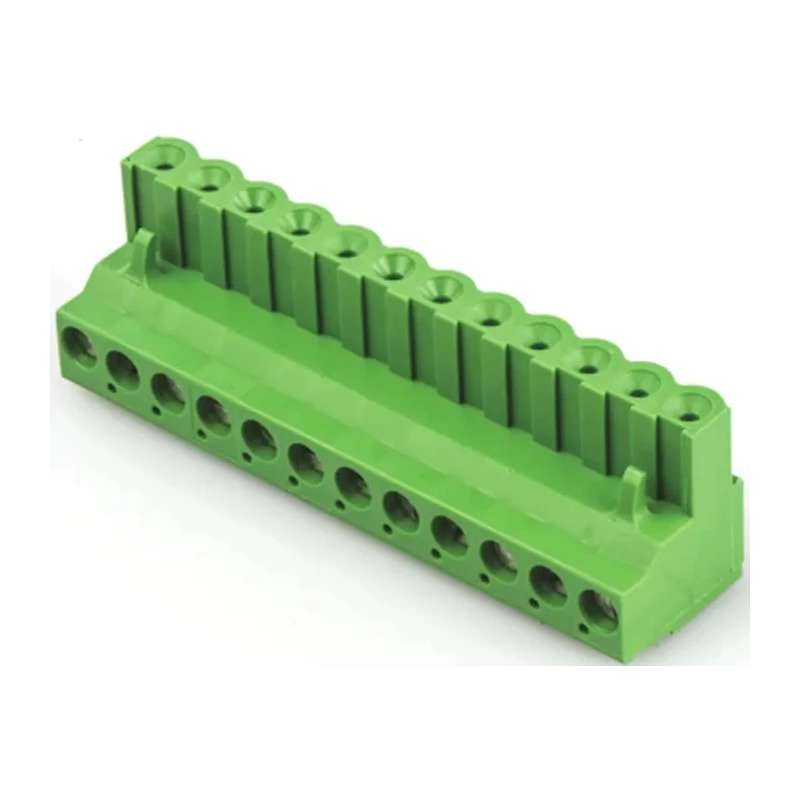

TE Connectivity Pluggable Terminal Block 12-Contact 5.08 mm Pitch 1 Row 15A Current Polyamide Housing 1-796634-2

Name: TE Connectivity Pluggable Terminal Block 12-Contact 5.08 mm Pitch 1 Row 15A Current Polyamide Housing 1-796634-2
Brand: TE Connectivity
SKU: 328489
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	300V ac
Brand	TE Connectivity
Colour	Green
Orientation	Right Angle
Current	15A
Housing Material	Polyamide
Number of Rows	1
Pitch	5.08mm
Number of Contacts	12
Connector Gender	Male
Minimum Wire Size mm²	0.05mm²
Maximum Wire Size mm²	3mm²
Minimum Wire Size AWG	12AWG
Maximum Wire Size AWG	30AWG

Key Features

Constructed with green polyamide housing for durability.
Right angle orientation suitable for compact PCB layouts.
Accommodates wire sizes from 30 AWG to 12 AWG or 0.05 mm² to 3 mm².
Features M3 screw terminals for reliable electrical connections.
Side stackable design enables flexible installation configurations.
Operates at voltage rating of 300V AC for a wide range of applications.
Rising clamp design for easy side-entry wiring operations.
Terminal supplied with open screw to reduce assembly time.

Product Description

TE Connectivity 1-796634-2 Pluggable Terminal Block is a high-quality PCB terminal block connector featuring 12 contacts arranged in a single row and spaced at a pitch of 5.08 mm. Rated for 15A current and 300V AC voltage, this connector is designed with a durable green polyamide 6.6 GF housing that withstands harsh environments, including corrosive conditions.

This model utilizes a right angle mounting style allowing efficient PCB real estate usage and side stackable configuration for flexible system design. The connector accommodates wire sizes ranging from 30 AWG to 12 AWG, or 0.05 mm² to 3 mm², using M3 screw terminals with a rising clamp design to enhance secure wire retention and facilitate side entry wiring.

The terminal is supplied with an open screw to save assembly time during installation. It is widely applicable in electronic components, power connectors, and industrial control systems where reliable electrical connections are critical. The connector meets TE Connectivity’s TERMI-BLOK™ standards and is suitable for industrial automation and PCB terminal block applications.

Constructed with green polyamide 6.6 GF housing for mechanical and chemical resistance. Right angle mount and side stackable for compact PCB installations. Rated 15A current and 300V AC voltage for robustness. Wire size compatibility from 0.05 mm² to 3 mm² (30 AWG to 12 AWG).

M3 screw terminals with rising clamp design for secure connections. Open screw design reduces assembly time. Suitable for corrosive environments. Compatible with TE Connectivity mating blocks, typically RS stock 710-0110.

This terminal block is an essential component for electronics manufacturing, industrial equipment, and control panel assembly. TE Connectivity products ensure reliability and compliance with industry standards where high quality interconnections are required.
