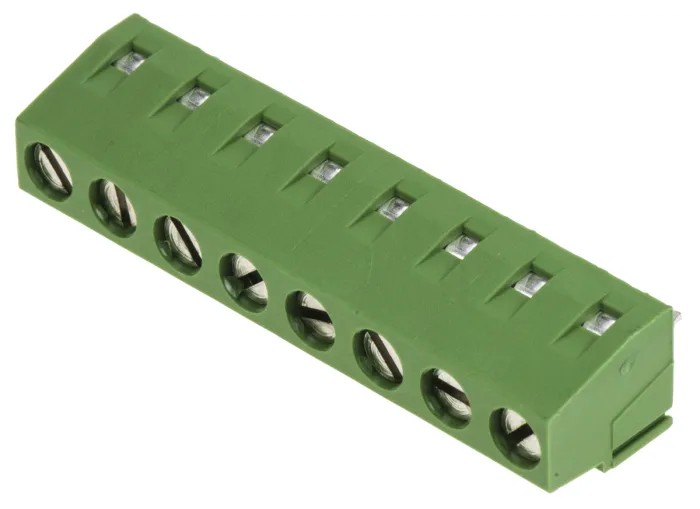

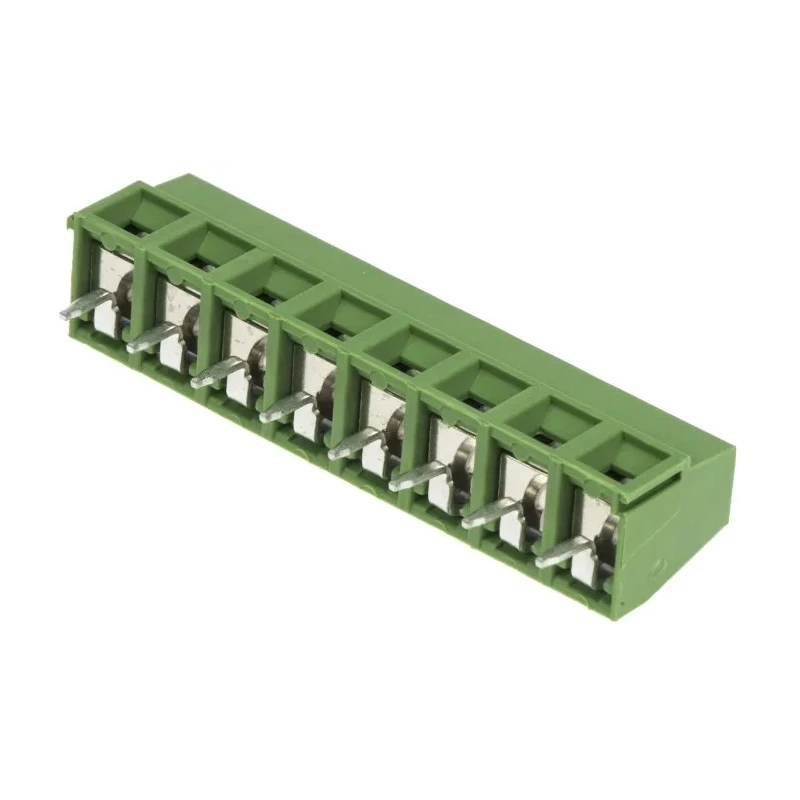

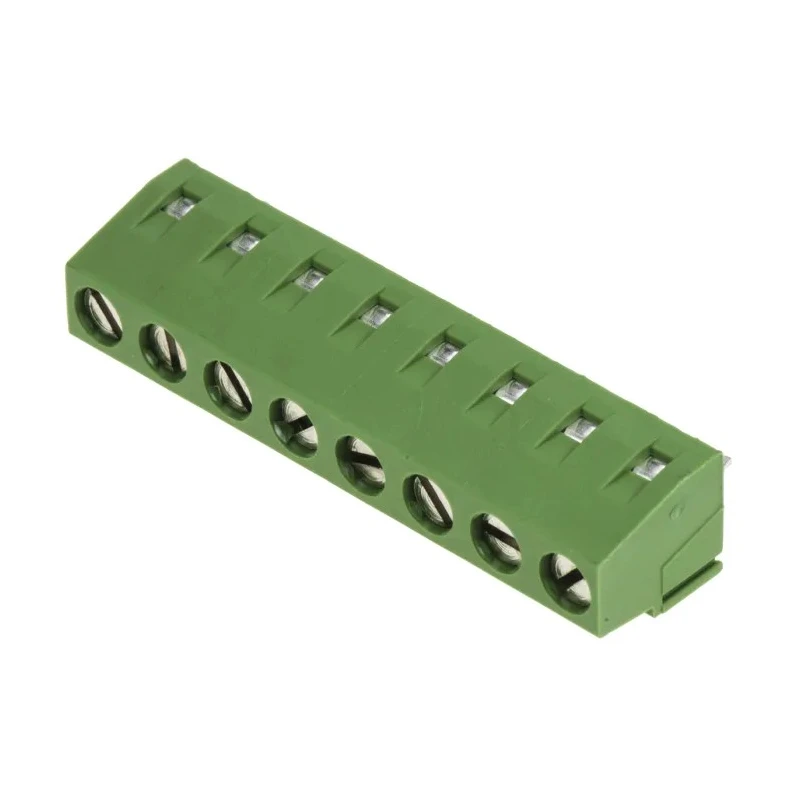

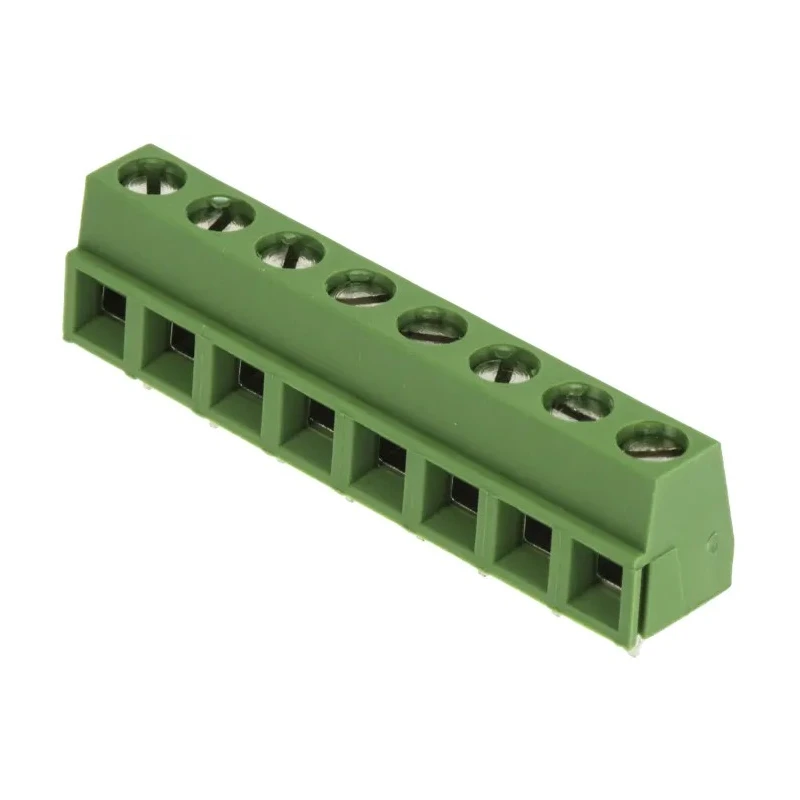

TE Connectivity Buchanan Series 8-Contact 5 mm Pitch 1 Row PCB Terminal Block 282836-8

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Buchanan Series 8-Contact 5 mm Pitch 1 Row PCB Terminal Block 282836-8

Name: TE Connectivity Buchanan Series 8-Contact 5 mm Pitch 1 Row PCB Terminal Block 282836-8
Brand: TE Connectivity
SKU: 328488
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	300V ac
Brand	TE Connectivity
Colour	Green
Orientation	Straight
Current	13.5A
Length	40mm
Model	282836-8
Depth	8.2mm
Width	10mm
Housing Material	Polyamide
Series	Buchanan
Number of Rows	1
Pitch	5mm
Number of Contacts	8
Connector Gender	Male
Minimum Wire Size mm²	0.05mm²
Maximum Wire Size mm²	1.3mm²
Minimum Wire Size AWG	16AWG
Maximum Wire Size AWG	30AWG

Key Features

Offers a current rating of 13.5A suitable for various PCB applications.
Constructed with green polyamide housing for durability and electrical insulation.
Supports wire sizes from 30 AWG up to 16 AWG (0.05 mm² to 1.3 mm²).
Features M3 screw clamp terminals providing secure side wire entry.
Designed for operating temperatures between -40°C and +110°C.
Incorporates an interlocking feature for side stacking multiple units.
Rated for 300V alternating current voltage applications.

Product Description

TE Connectivity 282836-8 Buchanan Series PCB Terminal Block is a high-quality 8-contact pluggable terminal block designed for printed circuit board applications, featuring a 5 mm pitch and single row configuration. It offers reliable electrical connections with a current rating of 13.5A and voltage rating up to 300V AC. Constructed from green polyamide housing, it ensures effective insulation and mechanical durability.

The terminal block supports a wide range of wire sizes from 30 AWG to 16 AWG (0.05 mm² to 1.3 mm²), making it flexible for different wiring requirements. It features M3 screw clamp terminals for side wire entry, ensuring secure and stable connections. The product operates safely in temperatures ranging from -40°C to +110°C, suitable for a variety of environments.

Its compact low profile design (length 40 mm, width 10 mm, depth 8.2 mm) allows for efficient board space usage. The built-in interlocking feature facilitates side stacking of blocks, enhancing modular assembly and scalability.

This terminal block is ideal for a range of industrial, laboratory, manufacturing, and electronic control applications where durable and safe PCB electrical connections are required. The Buchanan Series is recognized for its robust build and ease of installation.

Offers a current rating of 13.5A suitable for various PCB applications. Constructed with green polyamide housing for durability and electrical insulation. Supports wire sizes from 30 AWG up to 16 AWG (0.05 mm² to 1.3 mm²).

Features M3 screw clamp terminals providing secure side wire entry. Designed for operating temperatures between -40°C and +110°C. Low profile design with dimensions: length 40 mm, width 10 mm, depth 8.2 mm. Incorporates an interlocking feature for side stacking multiple units.

Rated for 300V alternating current voltage applications. Explore TE Connectivity and related products in EnvMart's Electronics category for quality and reliability in electrical components.
