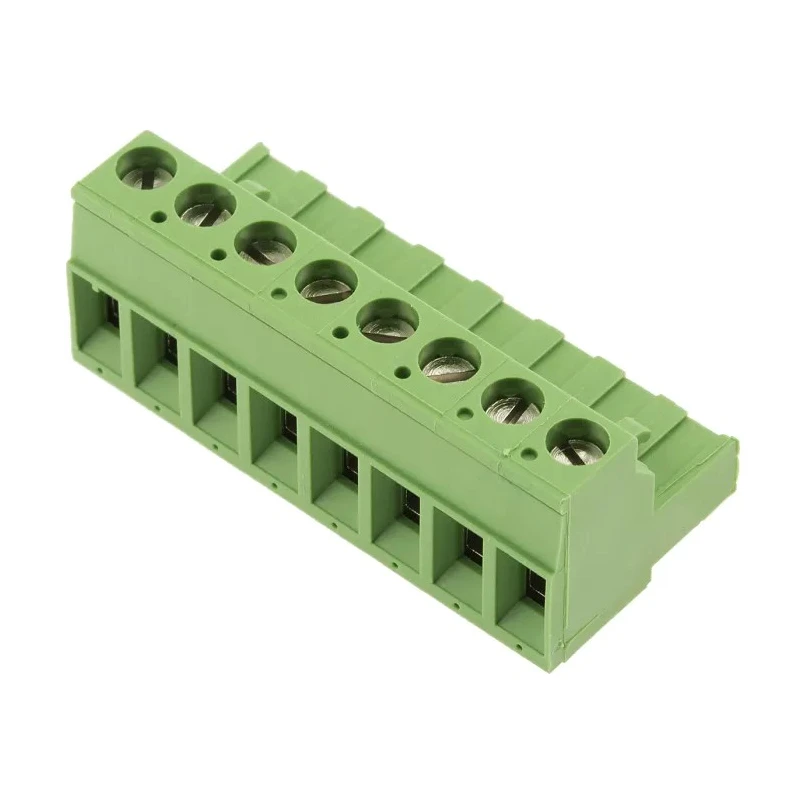

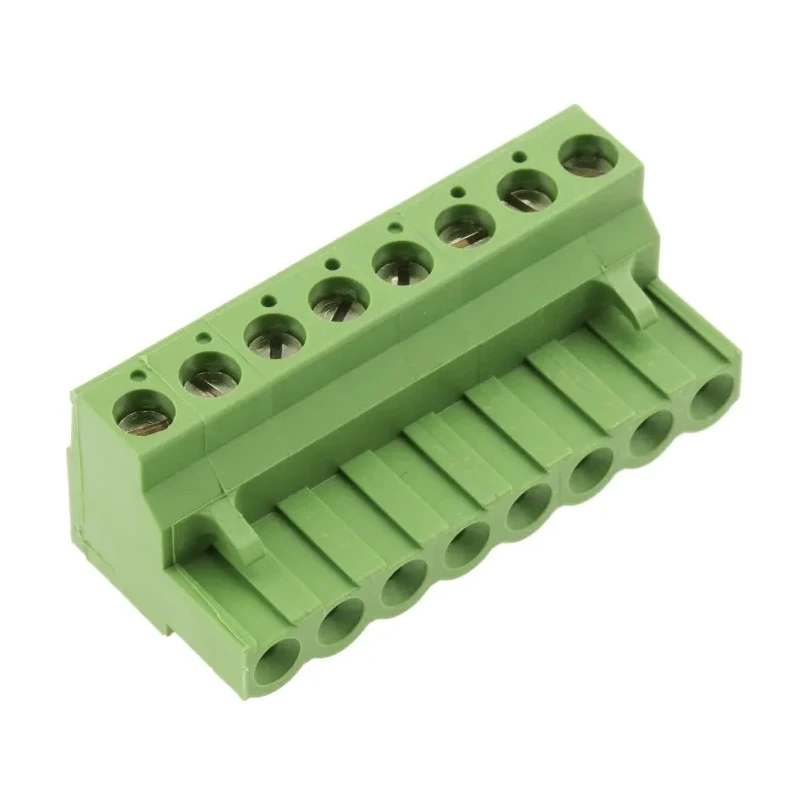

TE Connectivity Buchanan Series Pluggable Terminal Block, 8-Contact, 5.08 mm Pitch, 1 Row, 300V AC, 15A, Polyamide 796634-8

TE Connectivity 796634-8 Buchanan Series Pluggable Terminal Block is a high-quality electrical connector designed for use in electronic, industrial, and automation systems. This 8-contact connector has a 5.08 mm center-to-center pitch and is configured in a single row to provide a compact and reliable interface for wiring connections.

The green polyamide 6.6 GF housing provides excellent resistance to corrosion, making it suitable for harsh environments. This series uses a rising clamp design for side-entry terminals, facilitating quick and secure screw connections for wire sizes ranging from 30 to 12 AWG. The terminal block supports an AC voltage rating of 300V and a current rating of 15 Amperes, making it suitable for a variety of power and signal applications.

With its right angle orientation and side stackable design, the terminal block allows for efficient space utilization on printed circuit boards. It complies with recognized industry standards such as UL and CSA approvals, ensuring safety and performance reliability.

This model includes open screws to save assembly time and can be mated with compatible terminal block connectors, such as stock number 710-0110. Its compact dimensions of 15.5 mm width, 10.16 mm length, and 18.4 mm depth enable seamless integration within electronic assemblies.

The connector provides 8 contacts with a 5.08 mm pitch in a single-row configuration. Constructed from green polyamide material suitable for corrosive settings. Rated for 300V AC voltage and 15A current capacity. Screw type wire connection method accommodates wire sizes from 30 to 12 AWG.

Right angle orientation allows side stackable mounting for dense assemblies. Certified with UL no E 60677 and CSA file no 007189A for safety compliance. Compact size optimized for PCB use: 15.5 mm (W) × 10.16 mm (L) × 18.4 mm (D).

This terminal block is ideal for applications in industrial automation, electronic device manufacturing, control panels, and power distribution where reliable electrical connections and efficient wiring layouts are essential.
