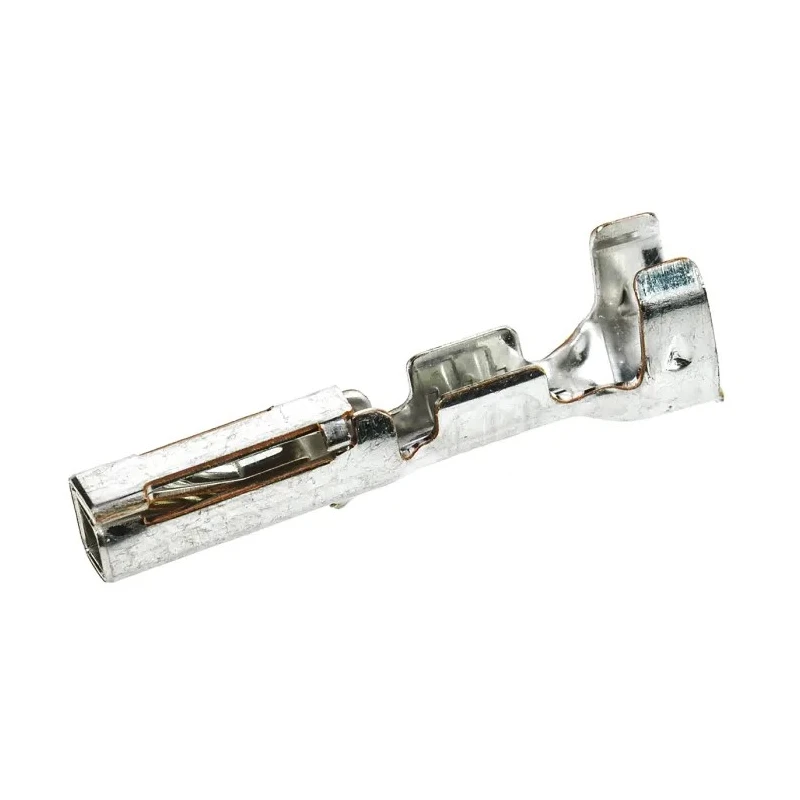

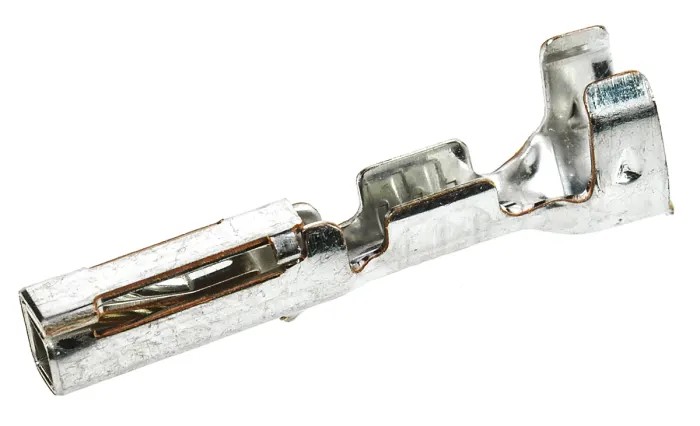

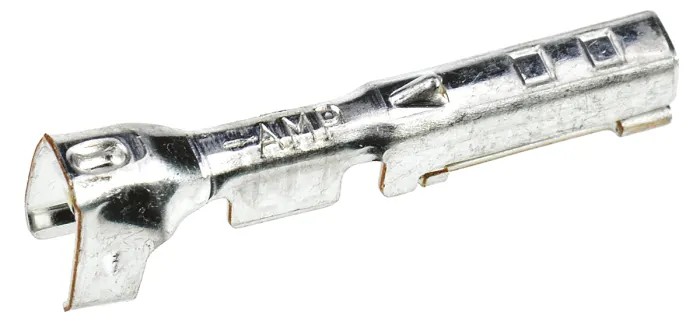

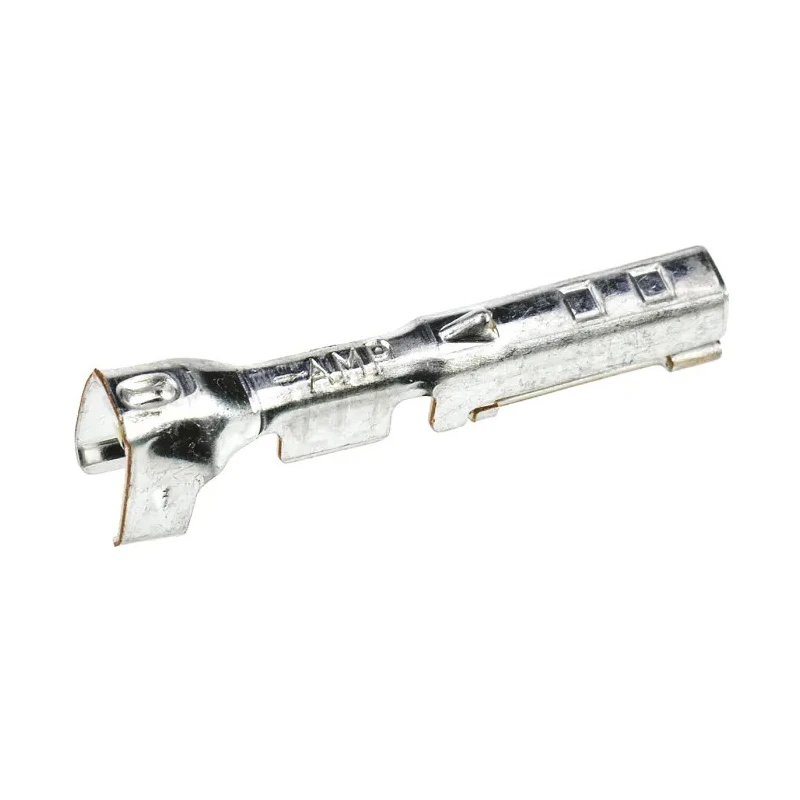

TE Connectivity MULTILOCK 040 Series Female Crimp Terminal 5A, Tin Plated Copper Alloy, 22-20 AWG 175062-1
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -30 - 105 °C |
| Current | 5A |
| Length | 14.2mm |
| Model | 175062-1 |
| Gender | Female |
| Contact Material | Copper Alloy |
| Current Rating | 15A |
| Series | MULTILOCK 040 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| For Use With | MULTILOCK 040 Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.6mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 20AWG |
| Maximum Contact Resistance | 20mΩ |
| Low level resistance | 10 mΩ max (initial) |
| Overall resistance | 20 mΩ max (final) |
Key Features
- Constructed from copper alloy with tin plating for corrosion resistance.
- Compatible with MULTILOCK 040 connector housings.
- Crimp termination type ensures reliable mechanical and electrical connections.
- Operates within temperature range of -30°C to 105°C.
- Designed for industrial automation and signal transfer applications.
- Compact length of 14.2 mm suits high-density wiring needs.
- Maximum contact resistance of 20 milliohms for electrical efficiency.
- Snap-in fixing facilitates secure connector cavity installation.
Product Description
TE Connectivity 175062-1 MULTILOCK 040 Series Female Crimp Terminal is engineered for reliable wire-to-wire and wire-to-board connections in industrial and automotive signal transfer applications. This female crimp terminal is designed for use with the MULTILOCK 040 connector housing, accommodating wire sizes from 22 AWG minimum to 20 AWG maximum, and rated for a current carrying capacity of 5 amperes.
Manufactured from copper alloy with tin plating, this terminal ensures corrosion resistance and excellent conductivity. The crimp termination method provides a solid mechanical and electrical bond, essential for automation and industrial environments.
The terminal operates reliably across a temperature range from -30°C to 105°C, supporting demanding conditions typical of manufacturing, HVAC, and control systems. Its compact 14.2 mm length enables high-density wiring configurations.
Featuring a maximum contact resistance of 20 mΩ, the terminal maintains electrical efficiency and signal integrity. Snap-in fixing connectors allow secure installation within MULTILOCK 040 connector cavities, ensuring stable connection under vibration and mechanical stress.
Constructed from high-quality copper alloy with tin plating for corrosion resistance. Current rating of 5A suitable for various industrial electronic applications. Wire size range between 22 AWG and 20 AWG meets common wiring standards.
Temperature tolerance from -30°C to 105°C for harsh environments. Snap-in fixing ensures positive mechanical retention in connector cavities. Compact design supports high-density wiring harnesses and assemblies. Reliable crimp termination for consistent mechanical and electrical contact.
This TE Connectivity MULTILOCK series terminal is widely used in automotive industries, industrial automation, and electronic assemblies. It is part of a miniature high-density connector system designed for secure, durable connections in wire harnesses and PCB interfacing.
Explore TE Connectivity products in the Crimp Terminal category at EnvMart for compatible components and tools to complement this terminal for your wiring and assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The crimp terminal is rated for a current carrying capacity of 5 amperes.
This model accommodates wire sizes from 22 AWG minimum to 20 AWG maximum.
It operates reliably within a temperature range of -30°C to 105°C.
The length of this terminal is 14.2 mm, making it suitable for high-density wiring configurations.
It is constructed from copper alloy with tin plating for corrosion resistance and excellent conductivity.
The terminal uses a crimp termination type, which ensures reliable mechanical and electrical connections.
The maximum contact resistance is 20 milliohms, which helps maintain electrical efficiency.
Yes, it is designed for industrial automation and signal transfer applications, including automotive industries.
This terminal is compatible with MULTILOCK 040 connector housings.
It features a snap-in fixing mechanism that facilitates secure installation within connector cavities.
The low-level resistance is 10 milliohms maximum initially, ensuring minimal signal loss.
The country of origin for this terminal is Japan.
