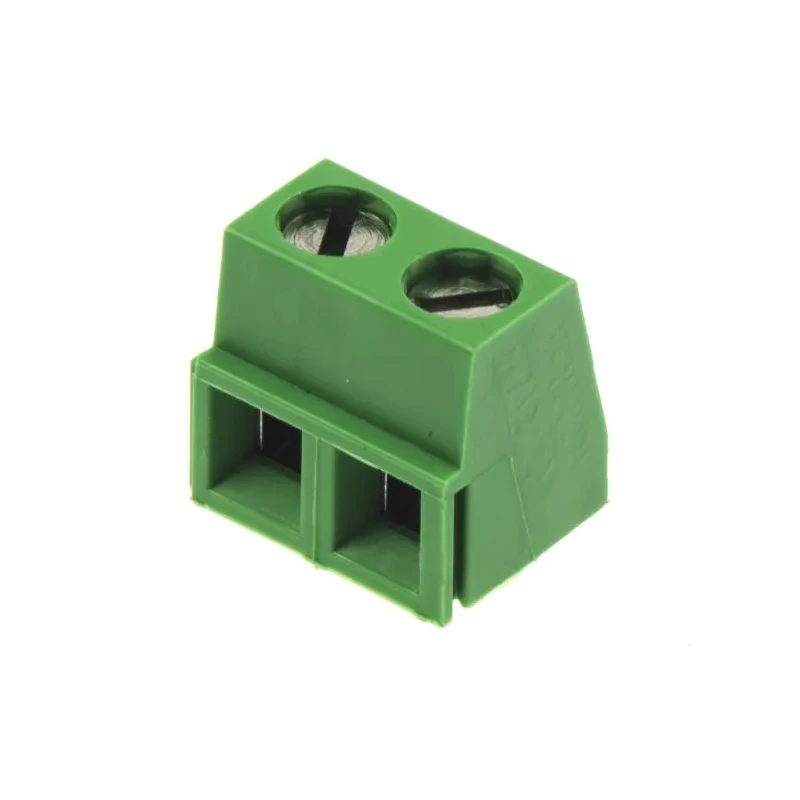

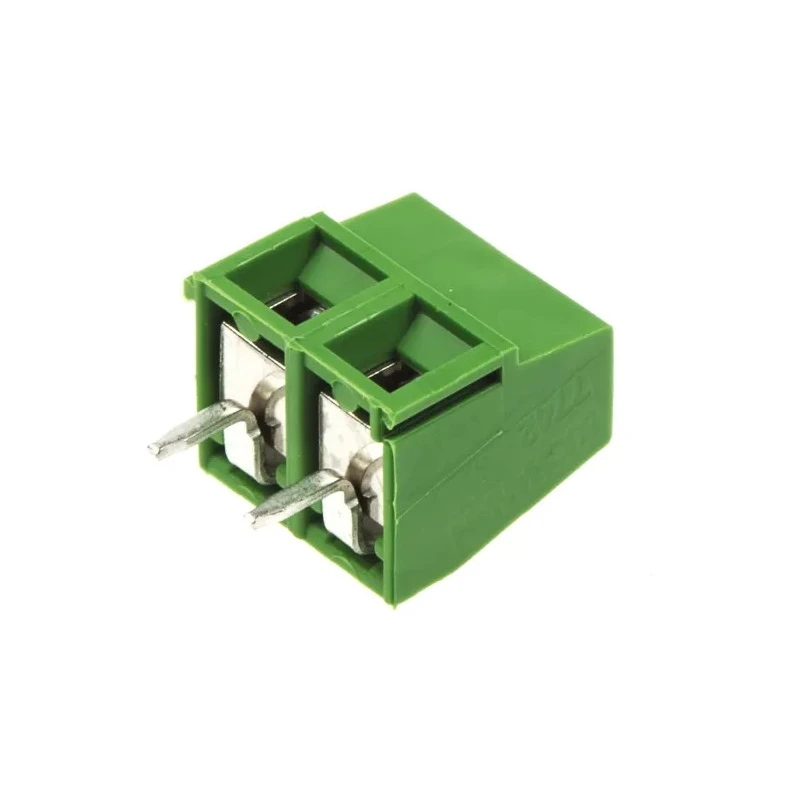

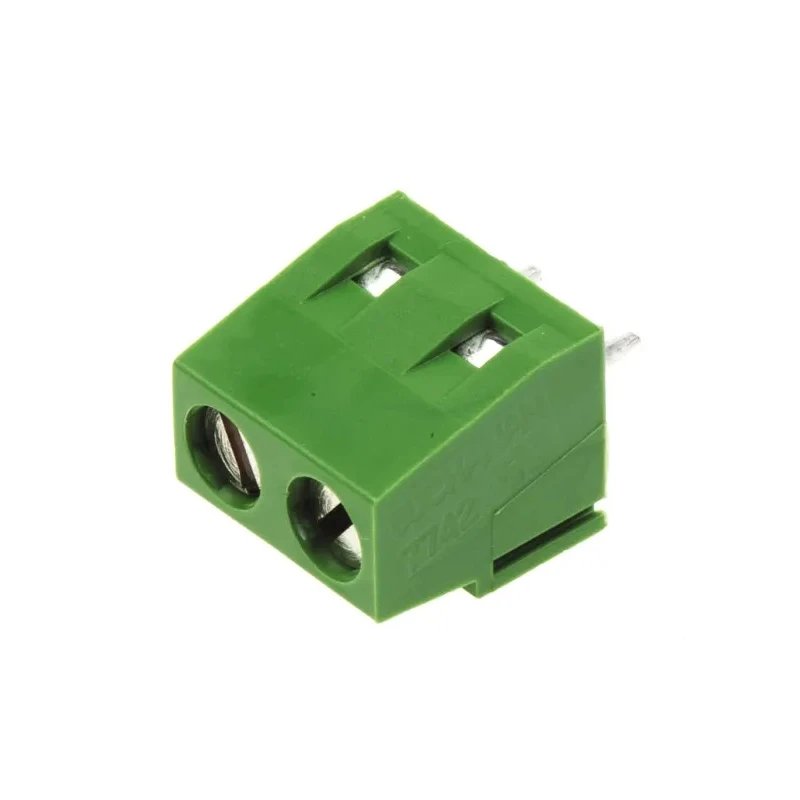

TE Connectivity Buchanan Series 2-Contact 5 mm Pitch 1 Row PCB Terminal Block 282836-2
Specifications
| Country of Origin | Italy |
|---|---|
| Voltage | 300V ac |
| Brand | TE Connectivity |
| Colour | Green |
| Orientation | Straight |
| Current | 13.5A |
| Length | 10.6mm |
| Model | 282836-2 |
| Depth | 8.2mm |
| Width | 10mm |
| Housing Material | Polyamide |
| Series | Buchanan |
| Number of Rows | 1 |
| Pitch | 5mm |
| Number of Contacts | 2 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 1.3mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 30AWG |
Key Features
- Constructed with premium green polyamide housing for durability.
- Supports wire sizes from 30 AWG to 16 AWG (0.05mm² to 1.3mm²).
- Rated for 13.5 A current and 300V AC voltage operation.
- Includes M3 screw clamp terminals with side wire entry.
- Features interlocking design for secure side stacking.
- Compact size with 10.6mm length, 10mm width, and 8.2mm depth.
- Suitable for low profile PCB mount applications requiring safe power and signal transfer.
- Operating temperature range from -40°C to +110°C.
Product Description
TE Connectivity 282836-2 Buchanan Series PCB Terminal Block is a high-quality, low profile connector designed for PCB mounting applications. Featuring a 2-contact, 5 mm pitch and single row layout, it enables efficient transfer of power and signals on printed circuit boards. The terminal block is constructed from durable green polyamide 6.6 GF housing, ensuring long-term reliability and resistance in demanding industrial environments.
Designed with side wire entry and M3 screw clamp terminals, this connector accepts wire sizes ranging from 30 AWG to 16 AWG (0.05mm² to 1.3mm²), rated for a maximum current of 13.5 A and voltage of 300V AC. Its interlocking feature allows secure side stacking to build larger connector arrays when needed.
The compact dimensions (10.6 mm length, 10 mm width, and 8.2 mm depth) make it ideal for space-constrained PCB designs, while the operating temperature range of -40°C to +110°C supports diverse industrial, automation, and electronic applications.
These TE Connectivity terminal blocks are widely used in electronic components, power connectors, and control systems in industries such as manufacturing, automotive, HVAC, and industrial automation. They provide a safe, reliable, and robust solution for connecting wires to PCBs efficiently.
Constructed with premium green polyamide housing for durability. Supports wire sizes from 30 AWG to 16 AWG (0.05mm² to 1.3mm²). Rated for 13.5 A current and 300V AC voltage operation. Includes M3 screw clamp terminals with side wire entry.
Features interlocking design for secure side stacking. Compact size with 10.6mm length, 10mm width, and 8.2mm depth. Suitable for low profile PCB mount applications requiring safe power and signal transfer. Operating temperature range from -40°C to +110°C.
Explore the TE Connectivity range for high-quality electronic connectors and terminal blocks compatible with industrial and commercial PCB applications at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a maximum current of 13.5 A.
The voltage rating is 300V AC.
This terminal block supports wire sizes from 30 AWG to 16 AWG, which corresponds to 0.05mm² to 1.3mm².
The dimensions are 10.6 mm in length, 10 mm in width, and 8.2 mm in depth.
The housing is constructed from green polyamide 6.6 GF.
Yes, it features an interlocking design that allows for secure side stacking.
The operating temperature range is from -40°C to +110°C.
Wires are connected using M3 screw clamp terminals with side wire entry.
This model has 2 contacts.
The pitch is 5 mm.
It is widely used in manufacturing, automotive, HVAC, and industrial automation applications.
The connector gender is male.
