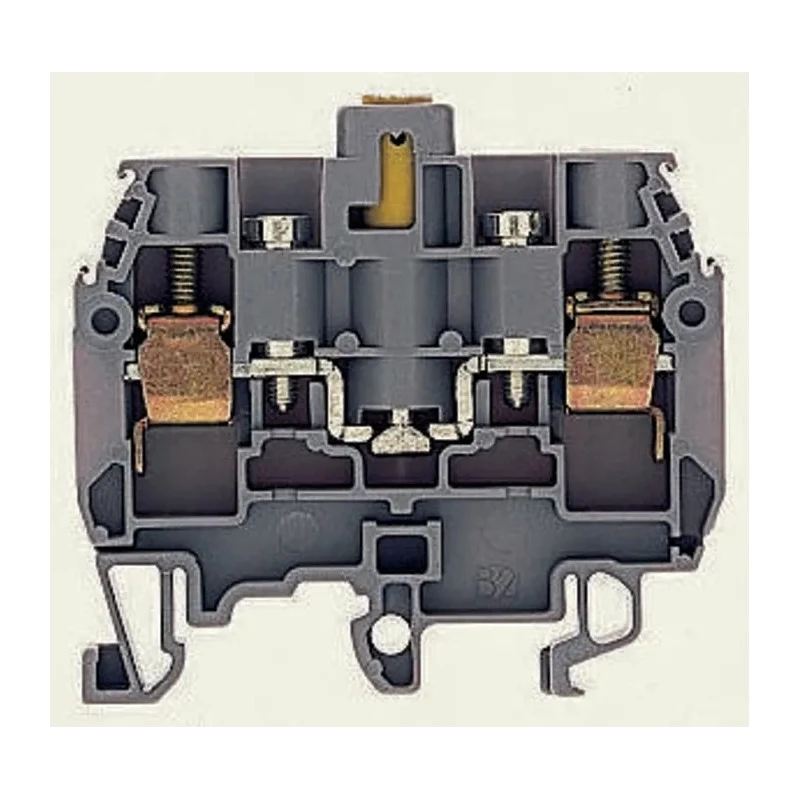

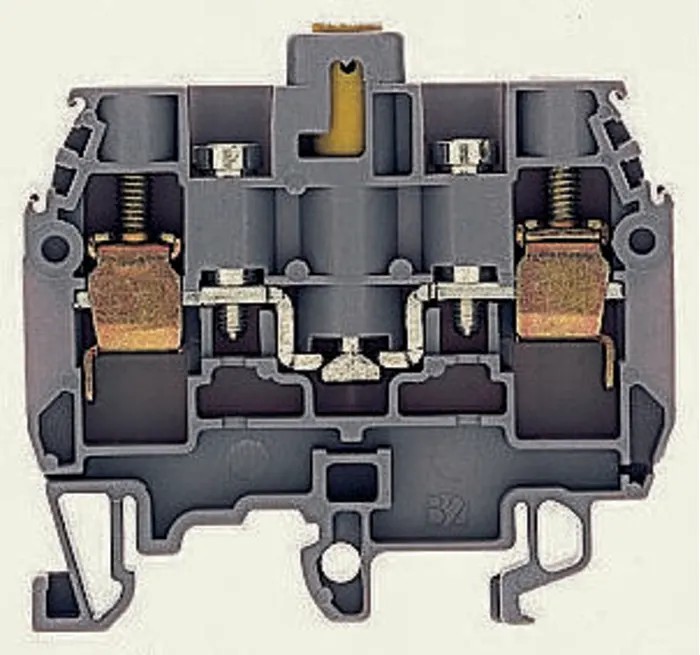

Entrelec SNA Series DIN Rail Terminal Block Grey 6mm² 1-Level Screw Termination 500V AC 15A 1SNA115277R2000

Free Delivery in India | Lowest Global Shipping Charges

Entrelec SNA Series DIN Rail Terminal Block Grey 6mm² 1-Level Screw Termination 500V AC 15A 1SNA115277R2000

Name: Entrelec SNA Series DIN Rail Terminal Block Grey 6mm² 1-Level Screw Termination 500V AC 15A 1SNA115277R2000
Brand: Entrelec
SKU: 327443
Price: 20.22 USD
Availability: InStock



Category DIN Rail Terminal Block Brand Entrelec Condition New

Specifications

Country of Origin	India
Voltage	500V ac
Brand	Entrelec
Colour	Grey
Model	1SNA115277R2000
Series	SNA
Termination Type	Screw
Maximum Operating Temperature	40°C
Number of Levels	1
Minimum Operating Temperature	-5°C
Pitch	8mm
Standards/Approvals	UL, RoHS, REACH, EU ELV
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	8AWG
Cable CSA	6mm²
Terminal Block Current	15A

Key Features

This terminal block supports a maximum current rating of 15A.
The product features a pitch of 8mm, offering reliable electrical connections.
It accommodates a minimum wire size of AWG22 and a maximum wire size of AWG8.
Constructed from flame-resistant polyamide 6.6, it operates between -5°C and 40°C.
The screw termination type ensures secure and durable connections.
It complies with UL, RoHS, REACH, and EU ELV standards for quality and safety.
Equipped with circuit testing capability and 2 test sockets for measurement and calibration.
Compatible with asymmetric 'G' profile and Top hat DIN rails for versatile mounting.

Product Description

Entrelec 1SNA115277R2000 SNA Series DIN Rail Terminal Block is engineered for secure electrical connections in industrial and electrical panel applications. This grey terminal block is suitable for cables up to 6mm² cross-sectional area with a single-level design, providing a robust termination method via screw clamp technology.

Operating at 500V AC and supporting up to 15A current, it is ideal for power distribution in electronics and electrical enclosures. The terminal block’s pitch of 8mm ensures compact and efficient use of DIN rail space. It accepts AWG22 to AWG8 wire sizes, accommodating diverse wiring requirements.

Manufactured from durable flame-resistant polyamide 6.6 material, the product reliably withstands operating temperatures from -5°C to 40°C. The captive terminal screws have hardened heads to prevent burring, supporting ease of installation and maintenance.

This terminal block is built with circuit testing facilities, including 2 test sockets with 4mm diameter, allowing safe circuit isolation and periodic measurements, testing, and calibration, making it suited for factory automation, control panels, and industrial applications.

It mounts universally on asymmetric 'G' profile and Top hat DIN rails, providing flexible assembly options in various electrical setups. The product complies with international standards including UL, RoHS, REACH, and EU ELV, assuring compliance with environmental and safety regulations.

Supports secure wiring with screw termination for reliable electrical contact. Designed for 1-level installation simplifying layout and wiring. Grey color coding facilitates clear circuit identification. Includes test sockets to enable non-disruptive measurement access.

Compatible with multiple DIN rail profiles enhancing mounting versatility. Flame-retardant construction enhances safety in electrical panels. Provides operational reliability within specified temperature range. Suitable for industrial, laboratory, electrical distribution, and automation applications.

Choose Entrelec DIN Rail Terminal Blocks for dependable connections in your industrial or commercial electrical systems. Explore more in our Electronics & Electricals and DIN Rail Terminal Blocks categories to find matched components and accessories.
