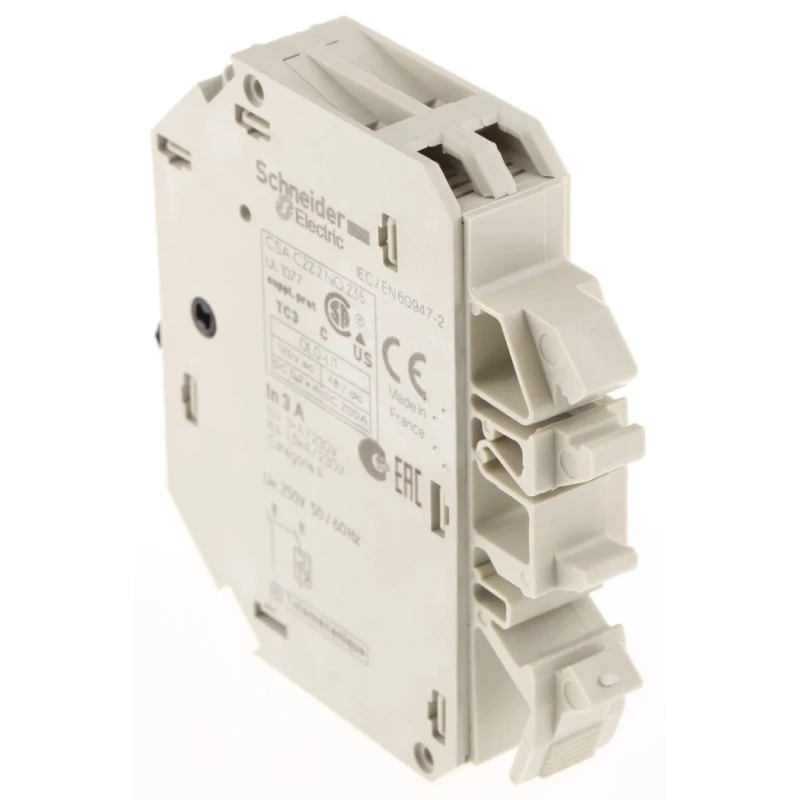

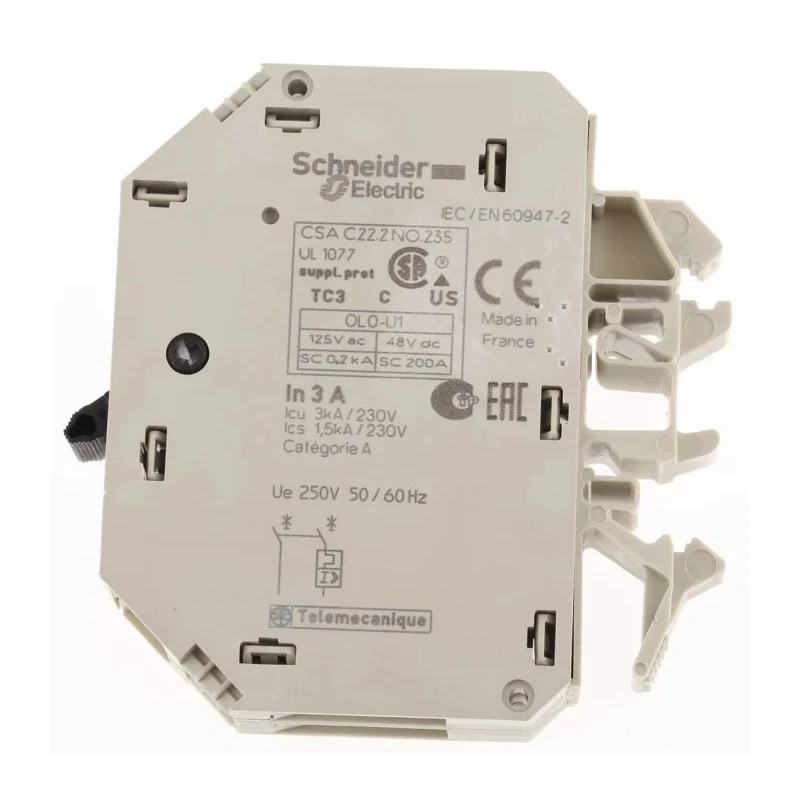

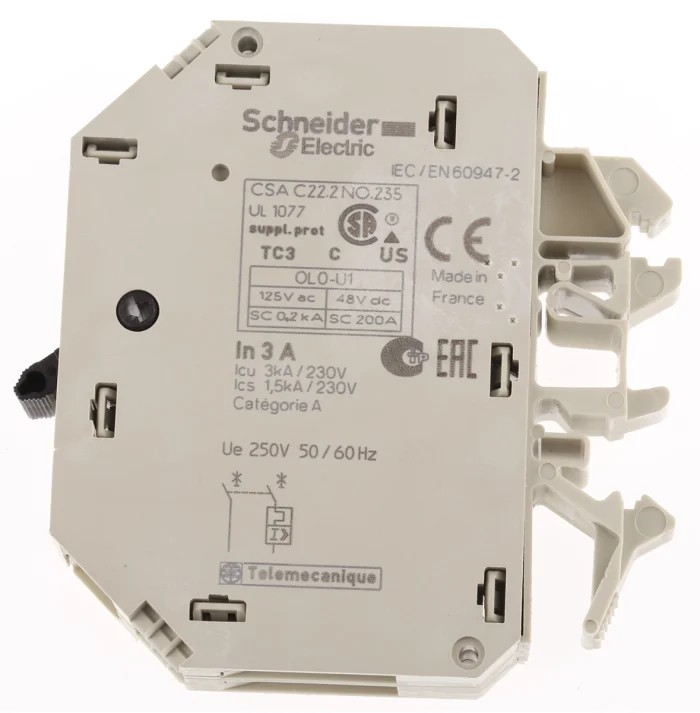

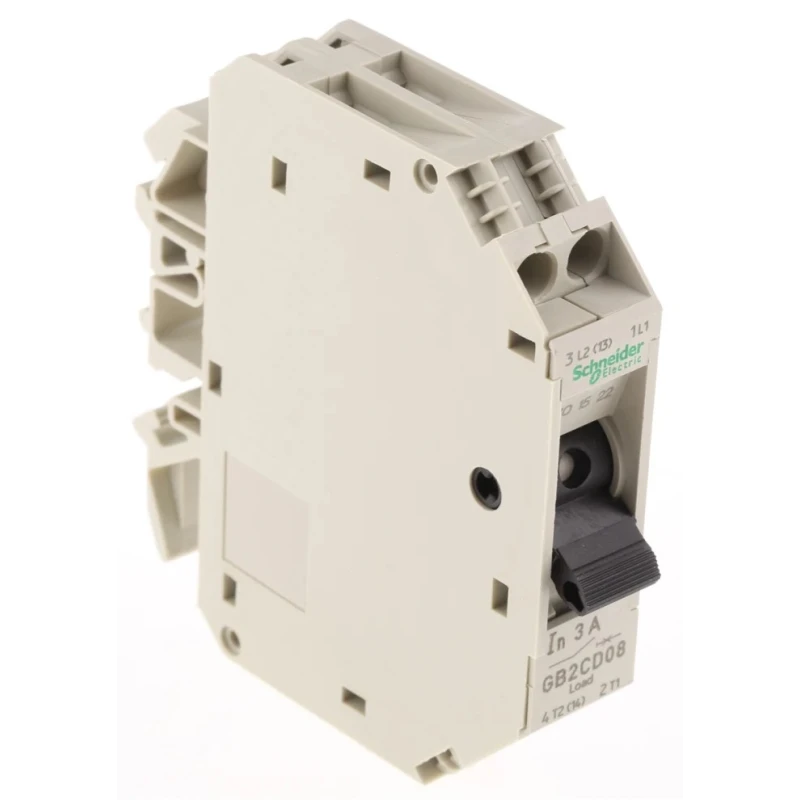

Schneider Electric TeSys GB2 Thermal Circuit Breaker 3A Current Rating 1-Pole DIN Rail GB2CD08
Specifications
| Country of Origin | France |
|---|---|
| Range | TeSys |
| Brand | Schneider Electric |
| Height | 74mm |
| Model | GB2CD08 |
| Depth | 67mm |
| Width | 15mm |
| Mount Type | DIN Rail |
| Current Rating | 3A |
| Series | GB2 |
| Terminal type | Cable |
| Breaking Capacity | 3kA |
| Number of Poles | 1 |
| Standards/Approvals | RoHS, CE |
| Rated AC Voltage | 110V ac |
| Rated DC Voltage | 48V dc |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Medium |
Key Features
- Provides precise overcurrent protection for control circuits with a 3A rating.
- Thermal-magnetic tripping mechanism offers both overload and short-circuit protection.
- Compact design suitable for AC (110V) and DC (48V) supply networks.
- Toggle switch actuator enables quick manual reset after fault clearance.
- Cable terminals accept solid and flexible conductors for reliable connection.
- Offers 3kA breaking capacity to limit fault energy at typical supply voltages.
- Can be clipped directly onto DIN rails or mounted on plates with clips.
- IP20 protection and halogen-free plastic parts enhance installation safety.
Product Description
Schneider Electric GB2CD08 Thermal Circuit Breaker is a 3A rated 1-pole device designed for overcurrent protection in industrial and commercial electrical systems. It features a thermal-magnetic trip mechanism suitable for both AC (110V) and DC (48V) supply networks, making it ideal for control panels and automation modules protection.
This circuit breaker mounts easily on standard DIN rails or can be installed on plates using the clip system, providing flexible panel integration options. The toggle reset actuator enables rapid manual reclosure following fault clearing, reducing downtime.
Terminals accommodate solid conductors from 0.75 to 6 mm² and flexible conductors with ferrules up to 4 mm², ensuring secure wiring. With a breaking capacity of 3kA, it effectively limits fault energy to protect downstream equipment.
Built with a compact 15mm width, 74mm height, and 67mm depth, the device offers space-saving benefits. It provides IP20 degree of protection and is manufactured with halogen-free plastics to minimize fire risks. The product operates reliably between −20°C and 60°C, storing safely from −40°C to 80°C, and withstands mechanical shocks up to 22g for 20ms and vibrations up to 5g across 5 - 110Hz.
Certified to IEC947-2 standards and RoHS/CE compliant, this Thermal Circuit Breaker is manufactured in France ensuring quality and reliability. Applications include protection of building services branch circuits, motor control auxiliaries, and DC signalling circuits at 48V.
Provides precise overcurrent protection with 3A rating. Thermal-magnetic tripping for overload and short-circuit response. Toggle switch for easy manual reset. Compact size for space-constrained control panels. DIN rail or plate mounting flexibility.
Cable terminal connections for solid/flexible conductors. 3kA breaking capacity limits fault energy. IP20 protection and halogen-free plastics for safety. Wide operating temperature range and mechanical resilience. Compliance with IEC947-2, RoHS, and CE standards.
This product is well suited for use in industrial automation, electrical distribution networks, manufacturing facilities, commercial buildings, and HVAC systems. Explore more Schneider Electric circuit protection devices and accessories with EnvMart for reliable electrical safety solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This thermal circuit breaker has a current rating of 3A.
It features a thermal-magnetic tripping mechanism, providing protection against both overloads and short circuits.
The circuit breaker has a width of 15mm, a height of 74mm, and a depth of 67mm.
It has a breaking capacity of 3kA, which helps limit fault energy at typical supply voltages.
It is rated for AC voltage of 110V and DC voltage of 48V.
It features a toggle switch actuator that allows for quick manual reset after fault clearance.
It can be mounted directly onto DIN rails or on plates using a clip system.
The terminals accept solid conductors from 0.75 to 6 mm² and flexible conductors with ferrules up to 4 mm².
It operates reliably between −20°C and 60°C, with a storage temperature range of −40°C to 80°C.
It is certified to IEC947-2 standards and is RoHS and CE compliant.
It is suitable for protecting building services branch circuits, motor control auxiliaries, and DC signalling circuits at 48V.
This product is manufactured in France.
