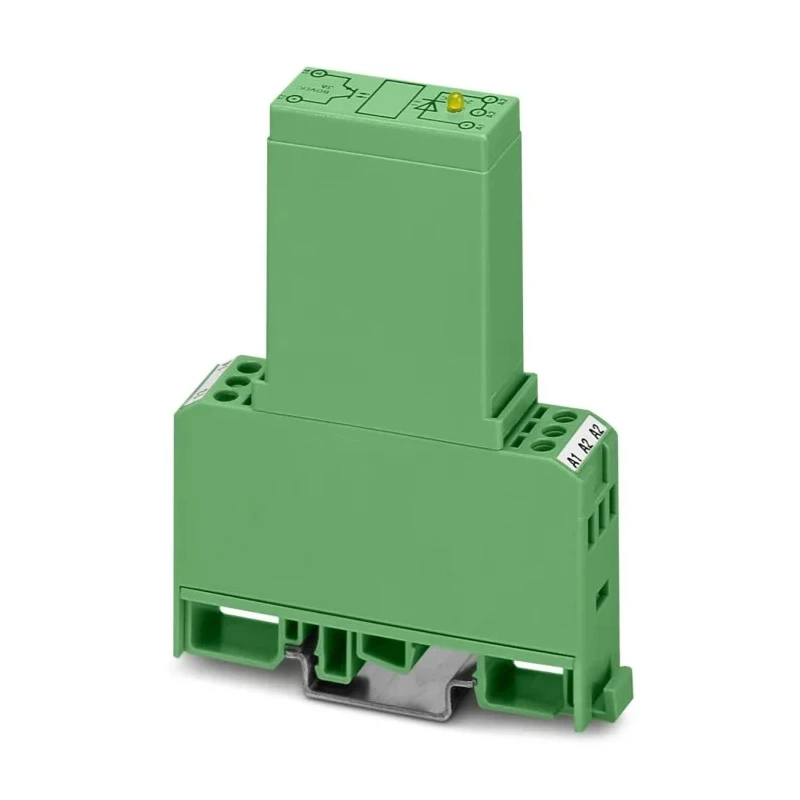

Phoenix Contact Solid State Interface Relay EMG 17-OV- 24DC/60DC/3, DIN Rail Mount, 3500V Isolation Voltage 2954154

Phoenix Contact 2954154 Solid State Interface Relay EMG 17-OV- 24DC/60DC/3 is a highly reliable DIN rail mount solid state relay designed for fast and safe electrical circuit switching applications. It supports a high isolation voltage of 3500V, ensuring excellent protection between input and output circuits in industrial environments. The relay features a compact form factor with dimensions of 102 mm length, 17.5 mm width, and 75 mm depth, ideal for space-constrained electrical panels.

This relay operates efficiently within a wide temperature range from -20°C to +60°C, making it suitable for a variety of demanding conditions typically encountered in automation, manufacturing, and control systems. The device incorporates integrated input and output suppressors to mitigate surge effects and an LED display providing immediate status indication.

The EMG 17-OV series power opto couplers excel in providing electrical isolation and signal amplification up to 230V/3A, commonly used across industrial sectors. Its electronic output type allows for fast switching response times of 20 microseconds, ensuring minimal downtime and optimum protection for equipment.

With an IP20 ingress protection rating, the module is finger safe, increasing operator safety during installation and maintenance. It complies with key international standards including EAC, IEC 60664, and EN 50178, which guarantee robust safety, quality compliance, and durability in industrial usage.

Designed for DIN rail mounting with versatile installation positions for ease of use. Compact dimensions of 102 mm length and 17.5 mm width to save panel space. Wide operating temperature range from -20°C to +60°C for diverse industrial environments.

Features a 3500V electrical isolation voltage ensuring maximum circuit protection. Fast response time of 20 microseconds for immediate switching operations. LED status indicator for clear device operational visibility. Equipped with input and output suppressors to prevent electrical surges.

IP20 rated, providing finger-safe protection enhancing user safety. Conforms to EAC, IEC 60664, and EN 50178 standards for reliability and safety compliance.

This solid state relay is ideal for applications in industrial automation, electrical signal conditioning, manufacturing control systems, and other environments requiring reliable electrical isolation and fast switching capabilities. It simplifies installation and system integration through its modular design and DIN rail compatibility.

Explore the wide range of Phoenix Contact products available at EnvMart for advanced and compliant industrial relay solutions.
