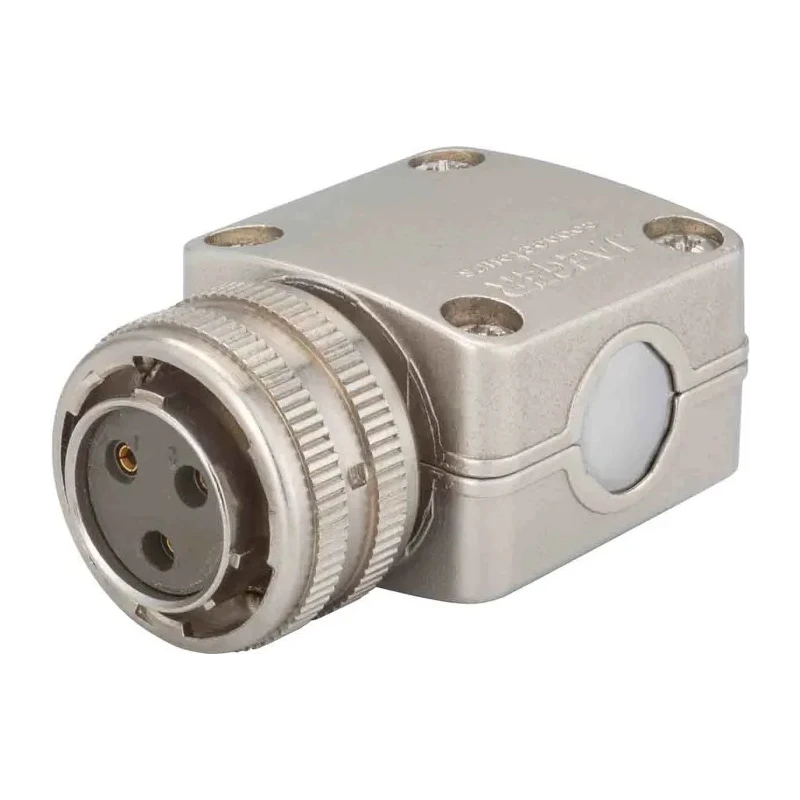

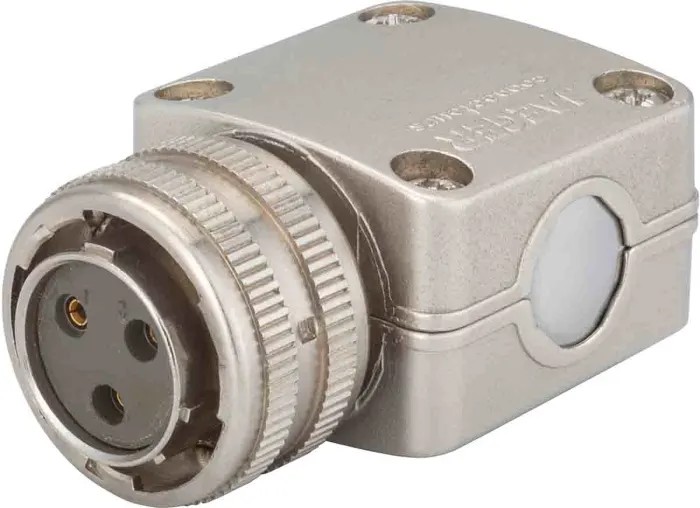

Jaeger Industrial Circular Connector 12 Contacts Cable Mount Female IP50 IP54 France 6326 120 06

Jaeger 6326 120 06 Industrial Circular Connector is a high-quality cable mount connector with 12 female contacts, designed to meet the demands of industrial applications requiring robust and reliable connections. Rated with IP50 and IP54 ingress protections, this connector provides excellent resistance to dust and limited water spray, making it suitable for industrial environments.

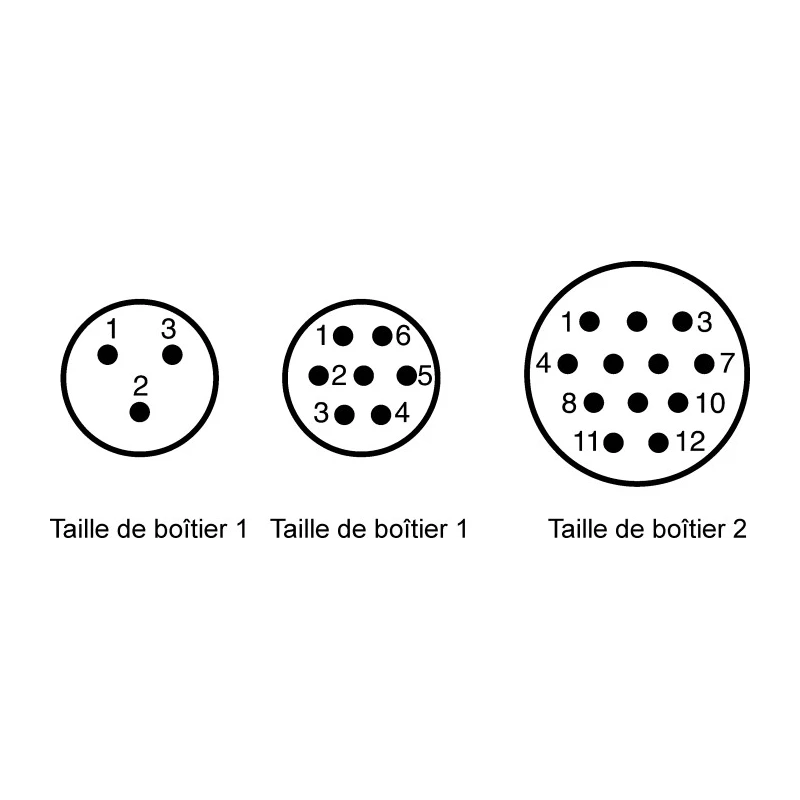

Constructed from nickel-plated aluminium alloy, the connector shell ensures superior durability and corrosion resistance. Its straight orientation and standard size shell (Size 2) support 12 contacts of 1.6 mm diameter, ideal for secure and consistent electrical connections.

The connector features a quick click bayonet locking system that requires only one sixth of a turn, ensuring quick and safe mating. It operates efficiently under a wide temperature range from -50°C to 100°C, addressing harsh operational conditions.

The contacts can be fitted with crimp termination, compatible with dedicated crimping tools for optimal assembly. The connector complies with the MIL-DTL-5015 military-standard which guarantees performance and quality in critical applications.

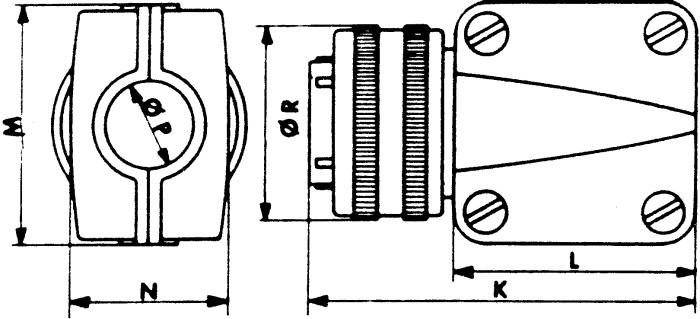

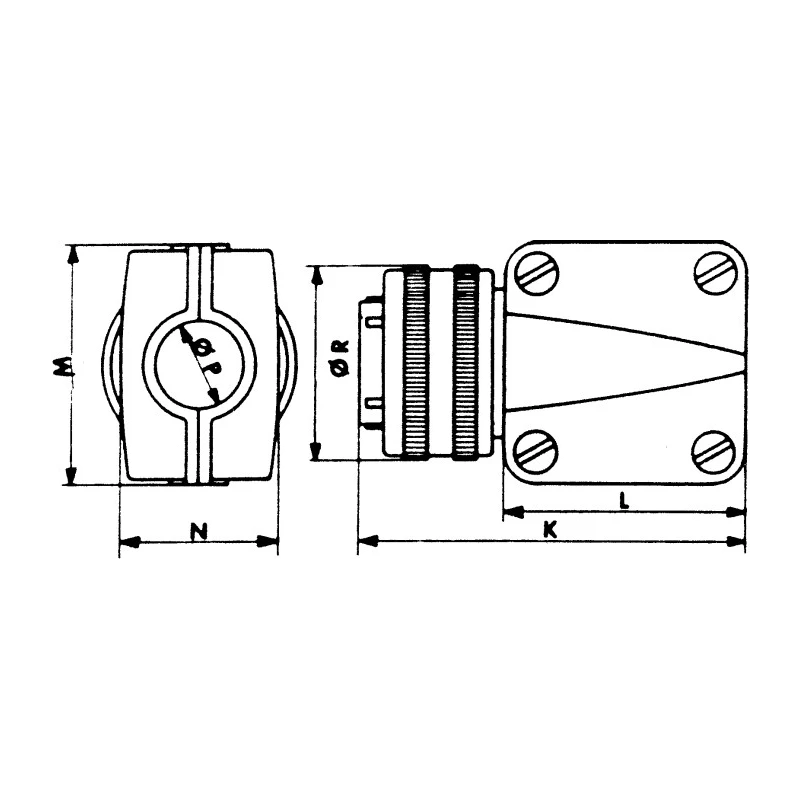

Designed for industrial use, it includes a square rear connector made of two half-shells with three positions for varied cable entry options, supporting cable grips for additional strain relief. Unused openings must be plugged with supplied blanking plates to maintain ingress protection.

Standard size 2 shell with 12 contacts of 1.6 mm diameter. Nickel-plated aluminium alloy shell construction for enhanced durability. Quick click locking system for fast and secure connections. Wide operating temperature range from -50°C to 100°C.

Complies with MIL-DTL-5015 military-grade standards. Cable mount with female contacts and straight orientation. IP50 and IP54 ingress protection ratings. Compatible with crimp termination and specialized crimping tools. Square rear connector design with multiple cable entry options.

Manufactured in France assuring premium quality standards.

This connector is well suited for industrial, manufacturing, automation, and control gear applications where reliability and durability are critical. For additional parts and accessories, refer to specialized crimp tools and cable grips sold separately. Explore a wide range of industrial connectors and accessories in the Electronics & Electricals category at EnvMart.
