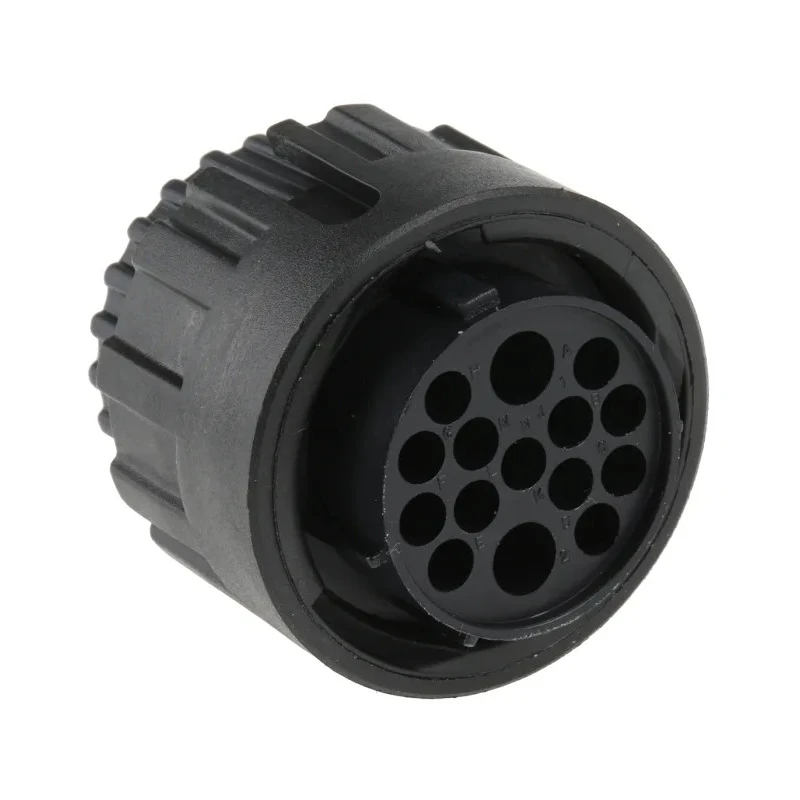

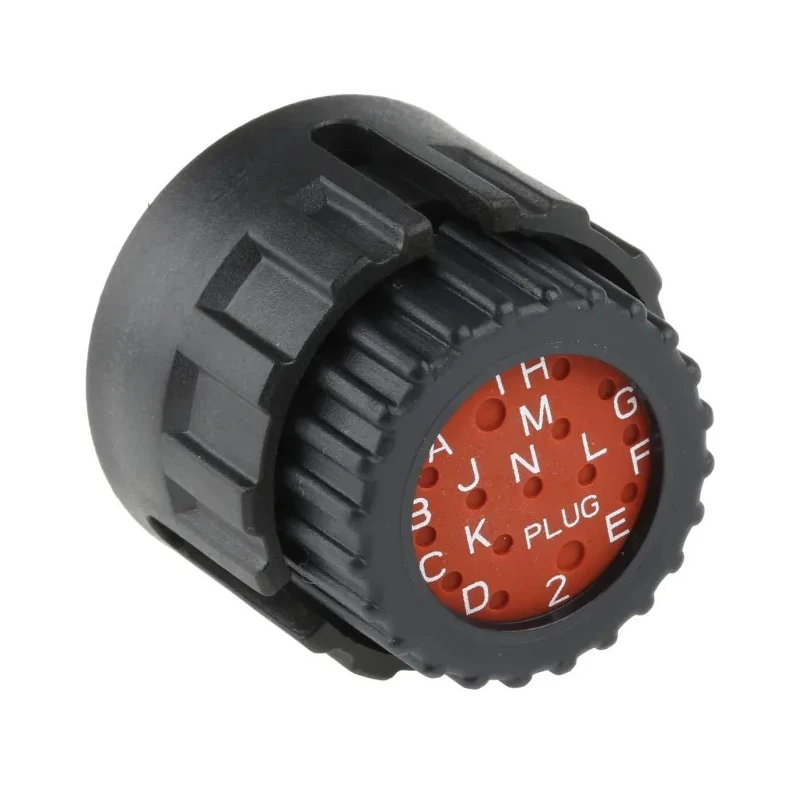

ITT Cannon Circular Connector 15 Contacts Cable Standard Plug Female IP67 Trident Neptune TN6S16-0213S2L / 192900-0562
Specifications
| Country of Origin | Hungary |
|---|---|
| Voltage | 250V |
| Brand | ITT Cannon |
| Orientation | Straight |
| Current | 30A |
| Model | TN6S16-0213S2L / 192900-0562 |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Nylon |
| Contact Material | Copper |
| Series | Trident Neptune |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pole Format | 15 |
| Contact Plating | Nickel |
| Number of Contacts | 15 |
| Contact Gender | Female |
| Shell Size | 16 mm |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Plug/Socket | Plug |
Key Features
- Rated for 250 V and 30 A current capacity.
- Features a bayonet mating type for secure connections.
- Constructed with nylon housing and copper contacts plated with nickel.
- Operational temperature range from -55°C to 105°C.
- Connector size is standard with 16 mm shell size and straight orientation.
- Termination by crimp method ensuring reliable contact.
- Designed as part of the Trident Neptune series for power and signal applications.
- Provides corrosion resistance with plastic coupling ring and membrane wire seals.
Product Description
ITT Cannon TN6S16-0213S2L / 192900-0562 Circular Connector is a 15-contact cable mount plug with female contacts, designed as a standard size plug within the Trident Neptune series. It supports an operating voltage of 250 V and current rating of 30 A. This connector is optimized for use in challenging industrial, automotive, marine, and process control environments requiring robust and reliable electrical connections.
The connector features a bayonet coupling system for secure and easy mating, with a straight orientation and 16 mm shell size. Its housing is fabricated from durable nylon material while the copper contacts are nickel-plated for corrosion resistance. The connector supports a wide operating temperature range from -55°C up to 105°C, making it suitable for various environmental conditions.
The Trident Neptune series combines power and signal contacts with membrane wire seals and a corrosion resistant plastic coupling ring to ensure an IP67 ingress protection rating, offering superior protection against dust and water ingress. The cable mount plug is terminated via crimp, providing reliable electrical contact. This connector is ideal for outdoor electronics and automotive applications where environmental sealing and ruggedness are critical.
Rated for 250 V and 30 A current capacity. Bayonet mating type and straight orientation for dependable connection. Durable nylon housing and nickel-plated copper contacts for corrosion resistance. Operates reliably within -55°C to 105°C temperature range.
Standard connector size with 16 mm shell size. Crimp termination for secure electrical contact. IP67 rated pod cable mount plug from the Trident Neptune series. Suitable for automotive, marine, industrial, and process control applications.
Includes plastic coupling ring and membrane wire seals for environmental protection.
Choose ITT Cannon circular connectors for high-quality, rugged cable connections in demanding industrial and outdoor applications. Explore more Industrial Circular Connectors and cable components at EnvMart for optimized electrical connectivity solutions.
