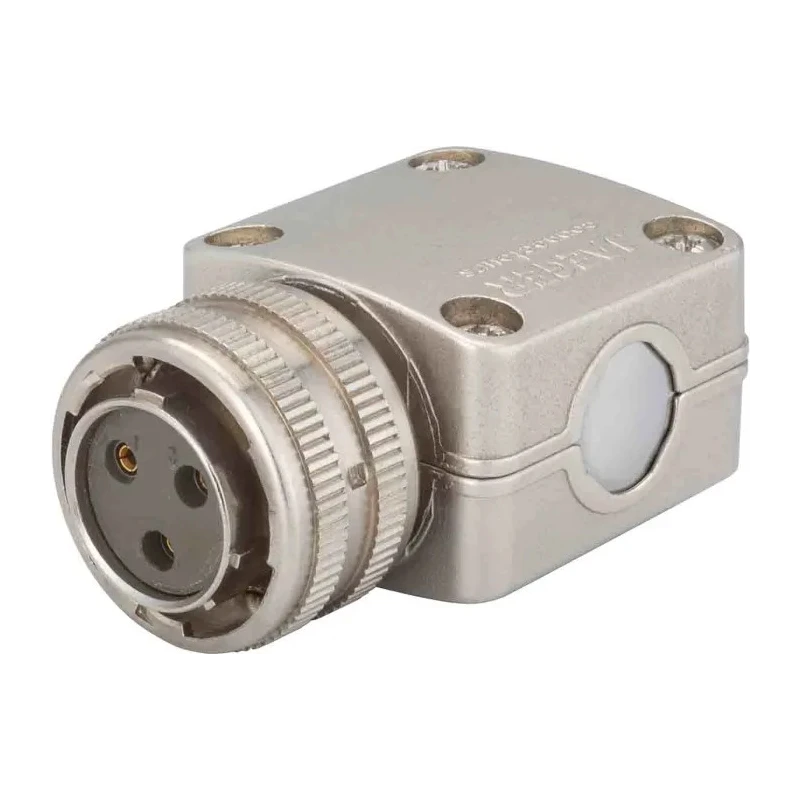

Jaeger Industrial Circular Connector Cable Mount 3 Contacts Female Standard Size IP50 IP54 6326 030 06

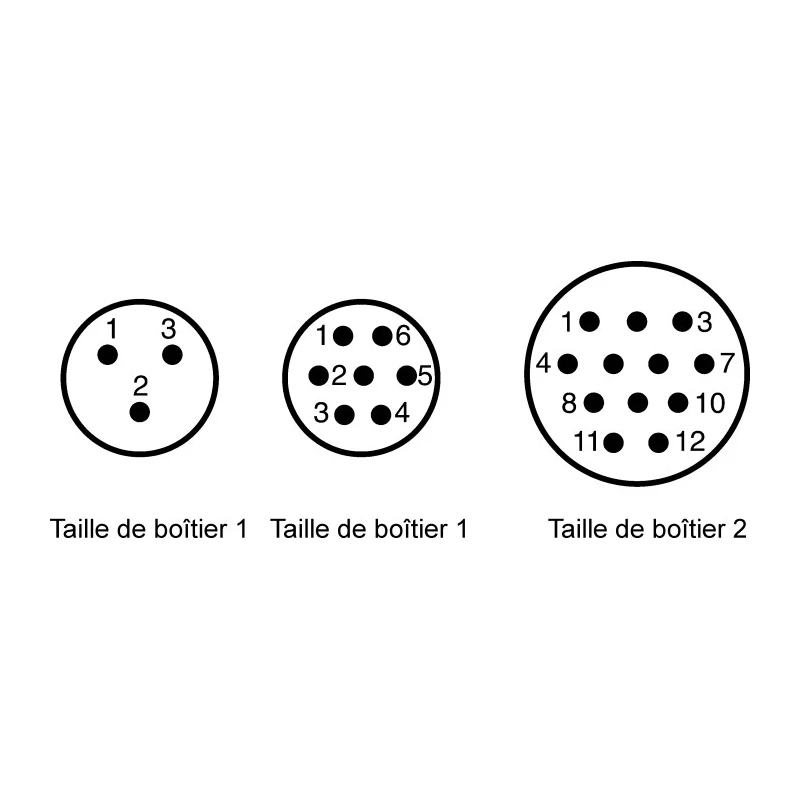

Jaeger 6326 030 06 is an Industrial Circular Connector designed for cable mounting, featuring 3 female contacts in a standard size housing. Constructed from nickel-plated aluminium alloy, this connector belongs to Jaeger's robust 'Industrial' series optimized for frequent connection and disconnection in demanding environments. The plug uses a quick click bayonet locking mechanism requiring only a 1/6 turn to secure connections efficiently.

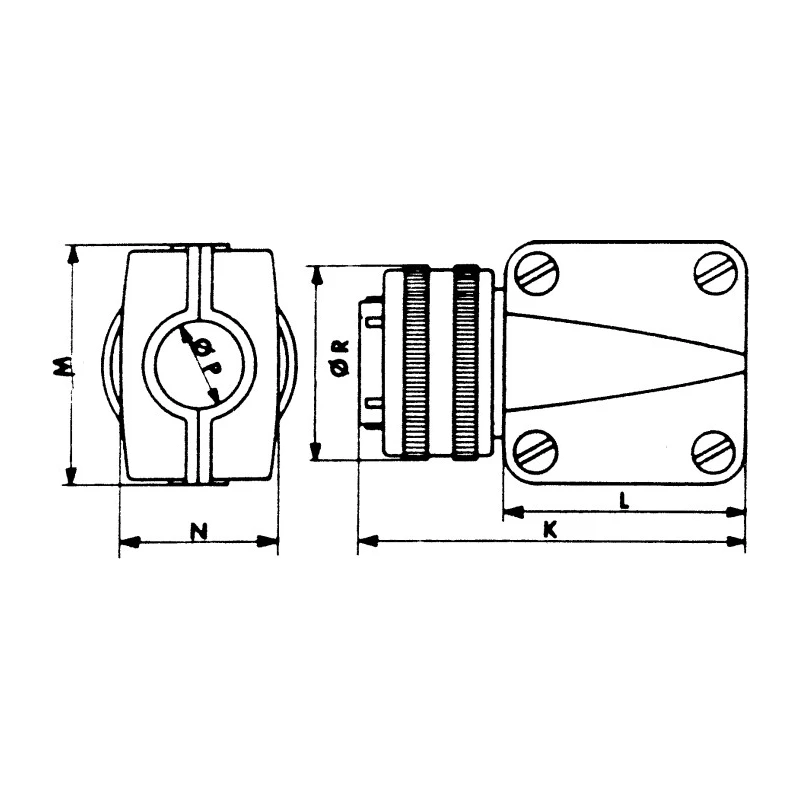

Each contact measures 1.6 mm in diameter and can be individually removed for either crimping (with specialized pliers M 22520-1/01 and M 22520-1/02) or soldering, facilitating flexible installation. The connector's square rear segment accommodates up to three identically sized cable entries configured for simultaneous use with optional cable grips for secure fastening, while any vacant openings should be sealed with original blanking plates to maintain environmental protection.

Engineered to operate within a temperature range of -50°C minimum to 100°C maximum, the 6326 030 06 model conforms to the MIL-DTL-5015 military specification, assuring high reliability and durability. Its ingress protection ratings of IP50 and IP54 provide moderate resistance against dust and water spray, suitable for industrial, manufacturing, HVAC, and laboratory environments where stable and secure electrical connections are essential.

This connector’s cable-mount design and female contact gender make it ideal for integration within complex electronic assemblies and power distribution systems requiring rugged and repeatable connector interfaces. The nickel-plated aluminium housing combines corrosion resistance with lightweight properties, ensuring longevity and ease of use in industrial and commercial applications.

Country of origin is France, reflecting high manufacturing standards and rigorous quality control. This product represents a reliable choice for professionals seeking durable circular connectors with precise specifications and versatile mounting options.

The connector features a quick click locking system with 1/6 turn bayonet coupling. It is made from nickel-plated aluminum alloy housing size 1 for enhanced durability. Suitable for industrial applications requiring frequent connect/disconnect cycles.

Contacts have 1.6 mm diameter and are removable for crimping or soldering. The connector supports a temperature range from -50°C to 100°C and complies with MIL-DTL-5015 standard. It has a straight orientation with crimp termination type and IP50, IP54 ingress protection ratings.

Designed with a square rear connector allowing three differently oriented cable connections simultaneously. The product is manufactured in France ensuring stringent quality and reliable performance. Explore more Industrial Circular Connectors and discover related connector solutions at EnvMart, your trusted destination for professional electronics and electrical components.
